LUMBAR SUPPORT ADJUSTER ASSEMBLY (for Front Side): Components: Illustration

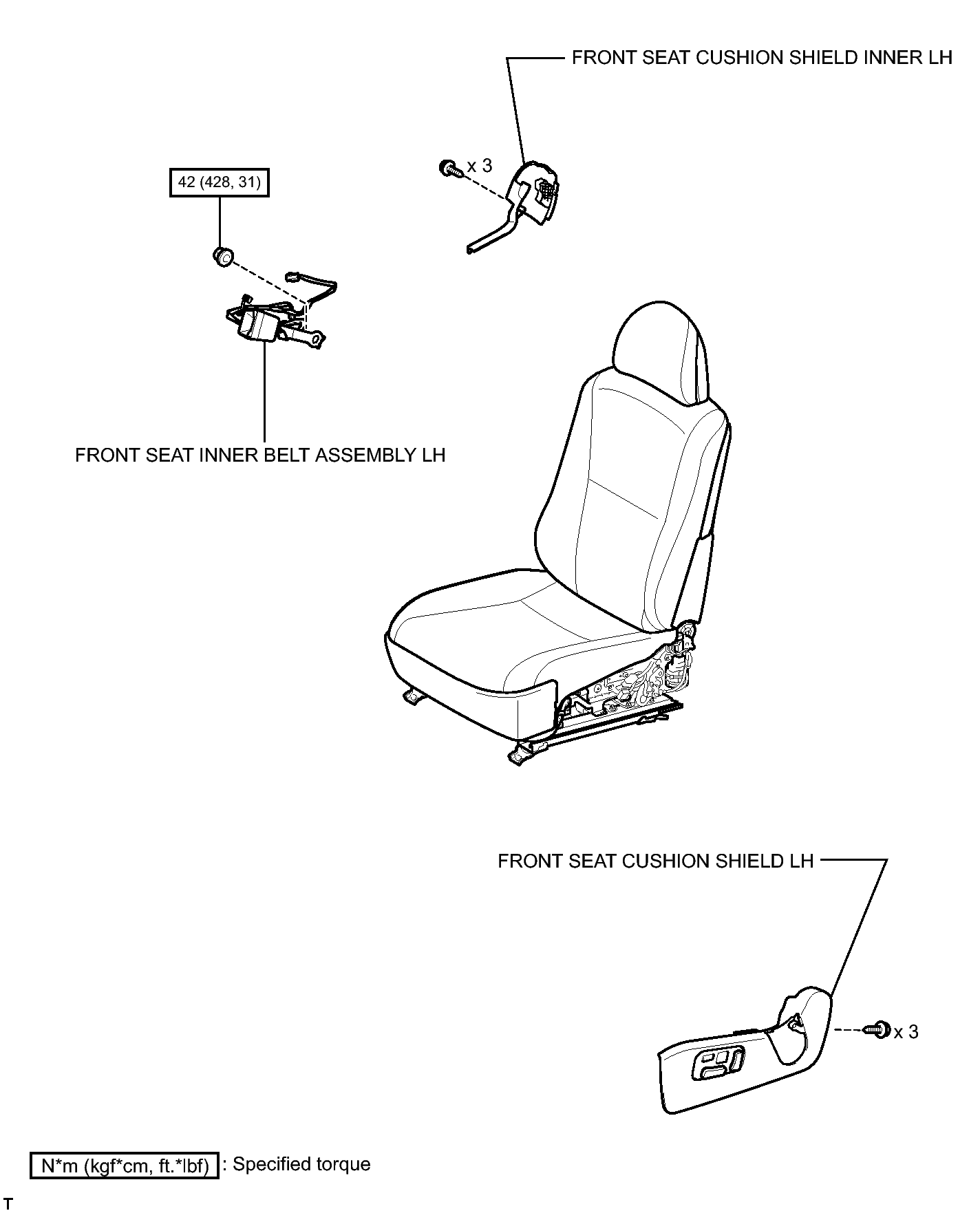

Fig 1: Identifying Lumbar Support Adjuster Assembly (For Front Side) Replacement Components With Torque Specifications (1 Of 2)
GTY268936Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

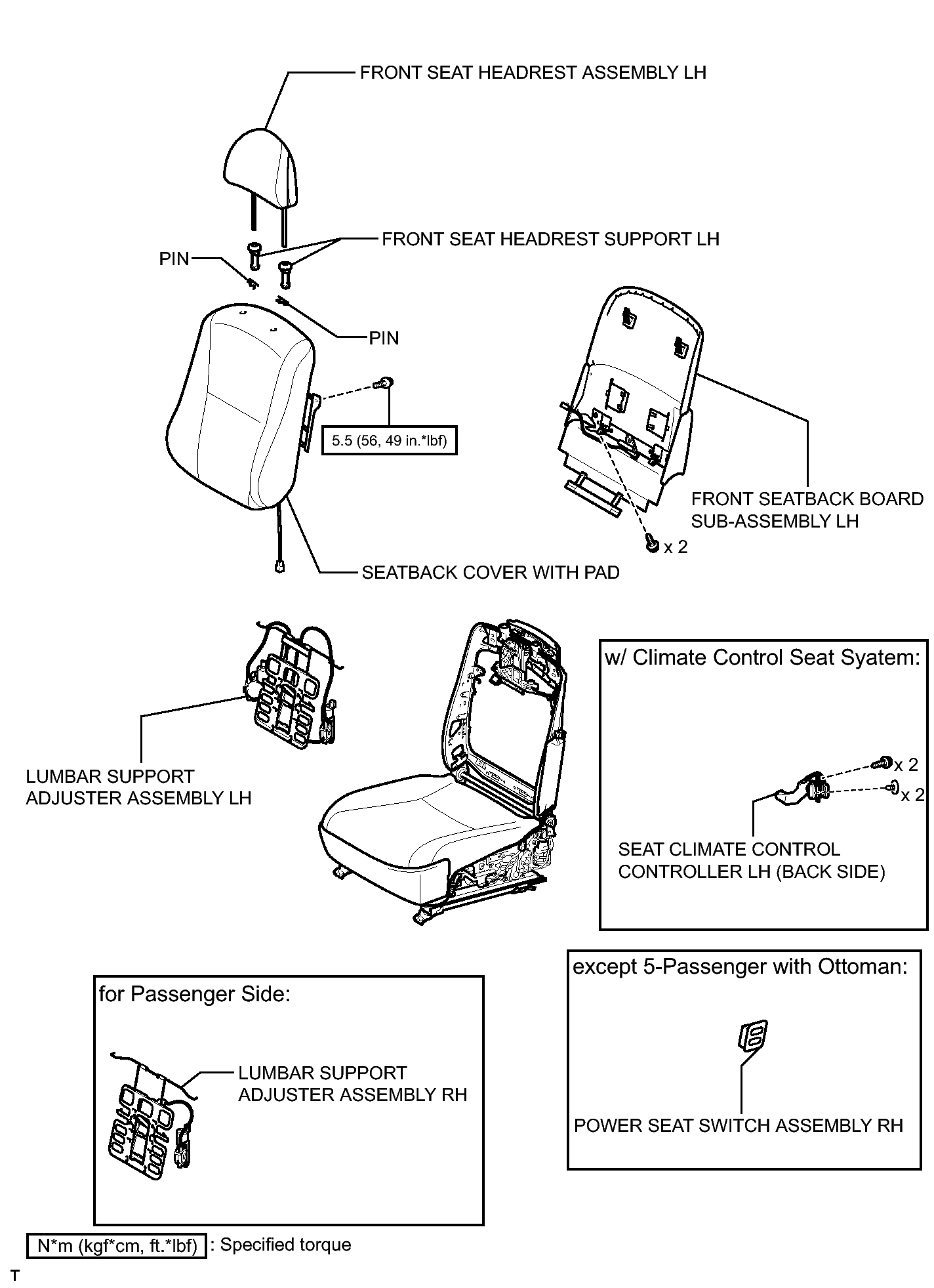

Fig 1: Identifying Lumbar Support Adjuster Assembly (For Front Side) Replacement Components With Torque Specifications (2 Of 2)
GTY274472Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
