Seat Vibrator does not Operate: Wiring Diagram

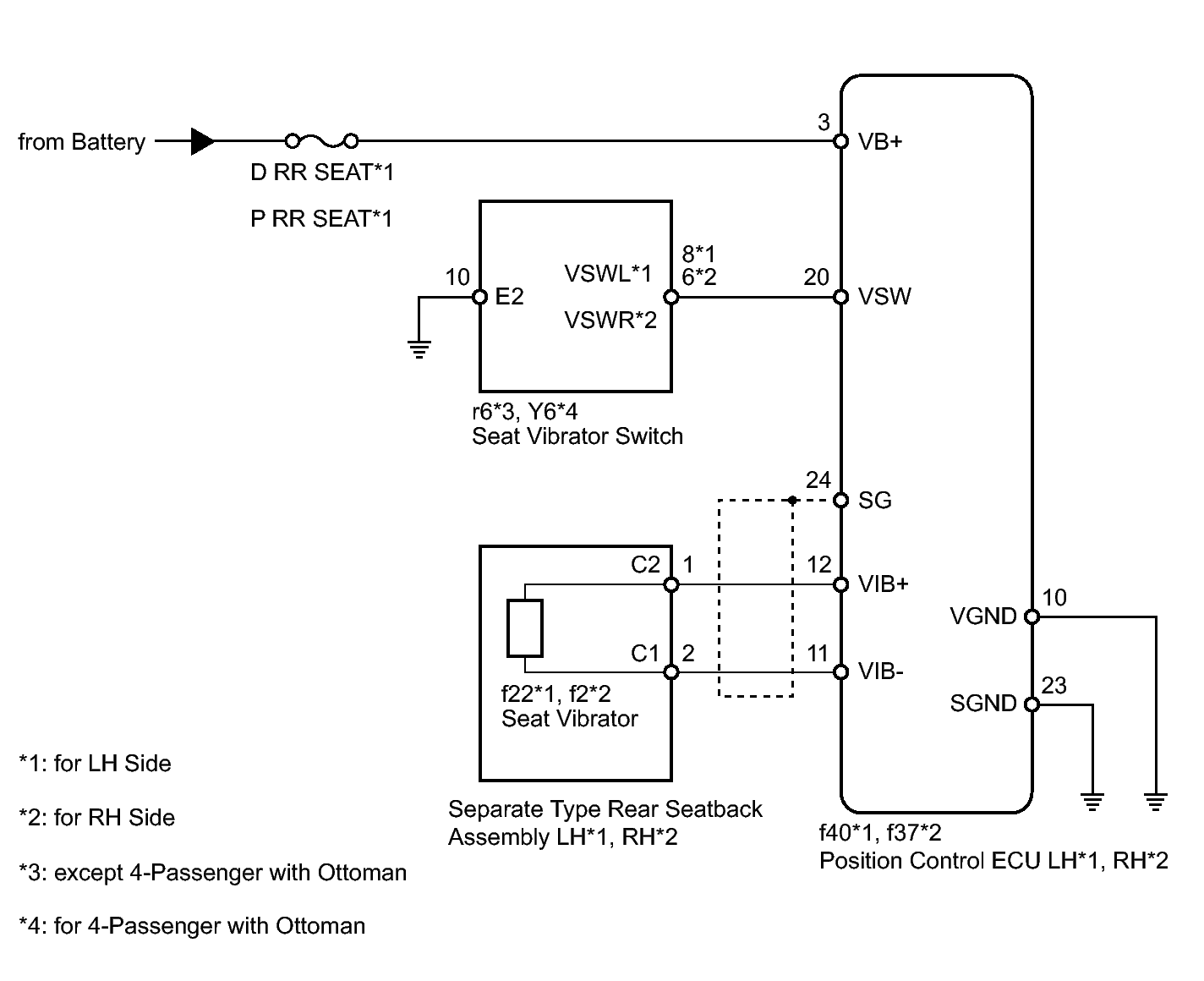

Fig 1: Seat Vibrator Wiring Diagram

GTY262330

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
