Position of Seat Vibrator cannot be Adjusted: Wiring Diagram

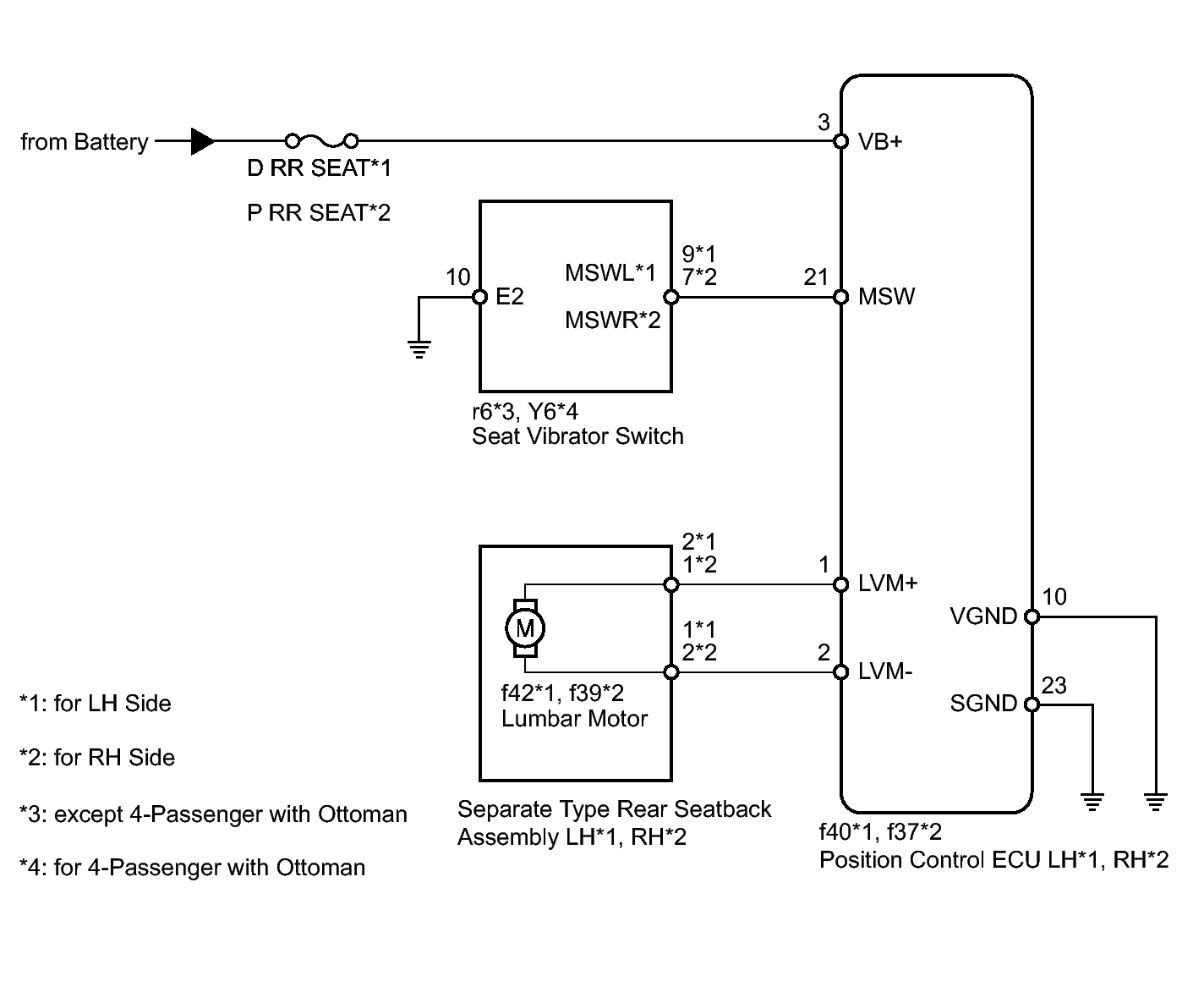

Fig 1: Seat Vibrator Switch Wiring Diagram

GTY254343

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
