Home >> Lexus >> 2012 >> LS 460 AWD >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Seats >> Seat Vibration System (Diagnostics & Symptom Tests) >> Seat Vibration System >> Parts Location >> Illustration

Parts Location: Illustration

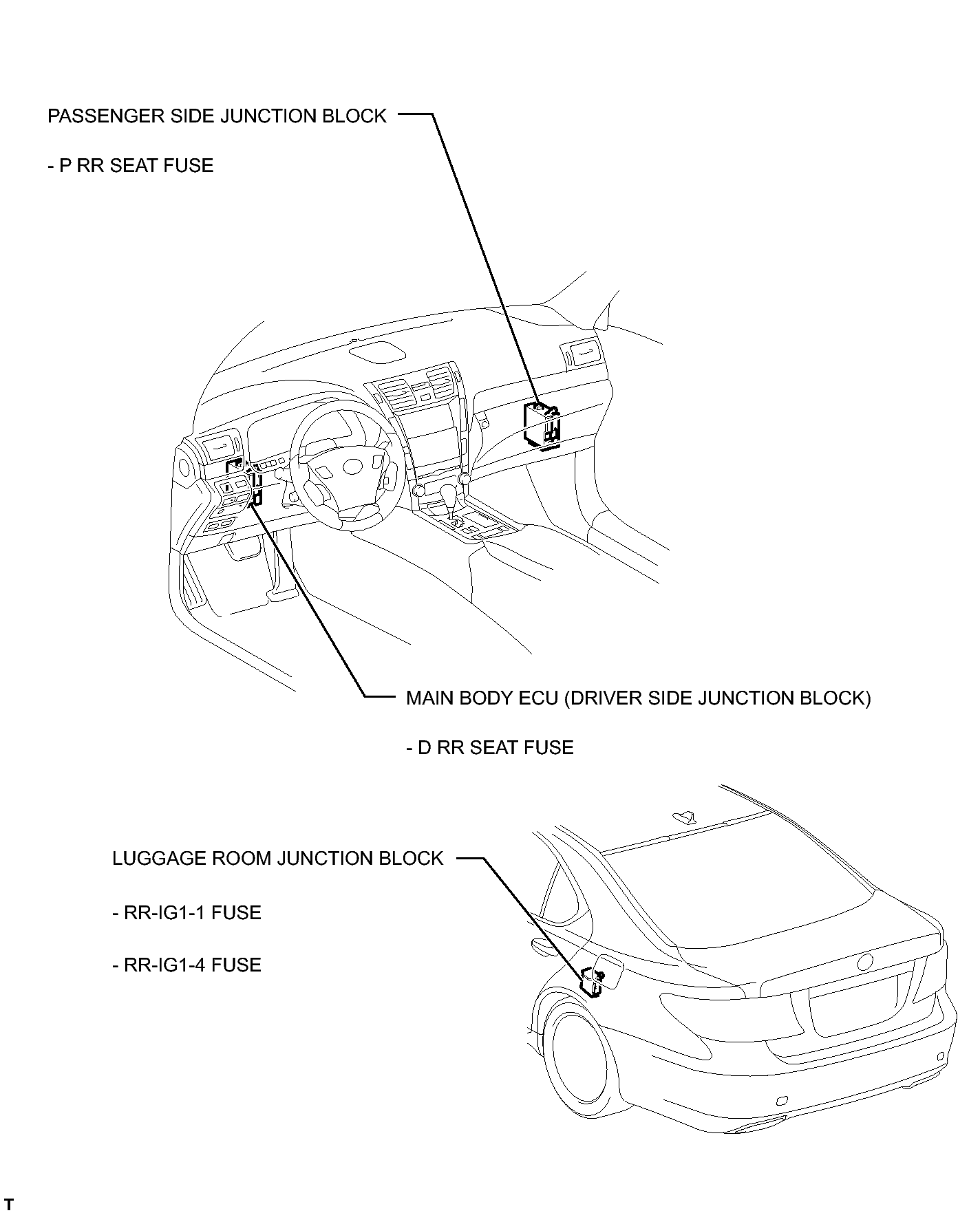

Fig 1: Identifying Seat Vibration System Components Location (1 Of 3)
GTY266658Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

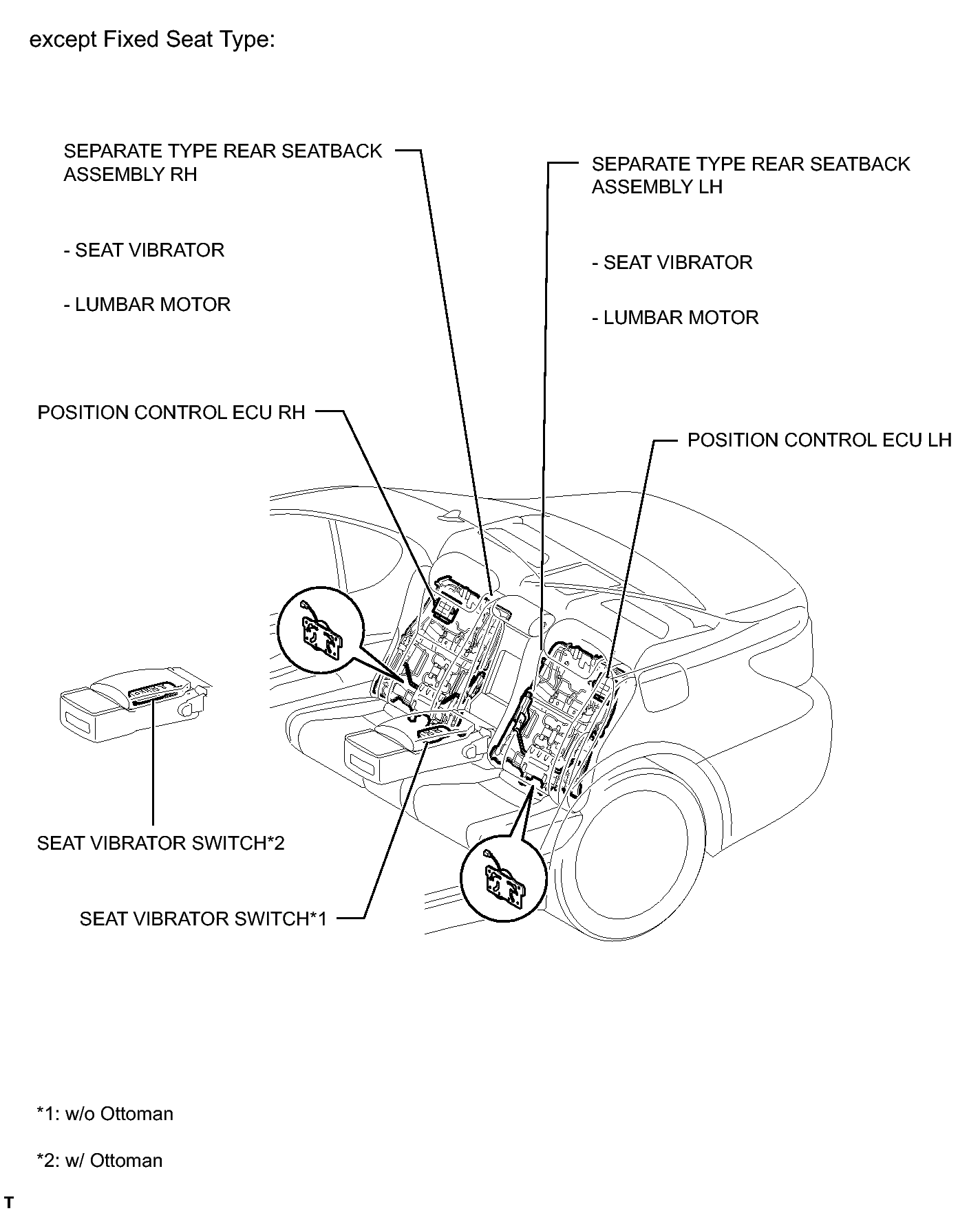

Fig 1: Identifying Seat Vibration System Components Location (2 Of 3)
GTY263399Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

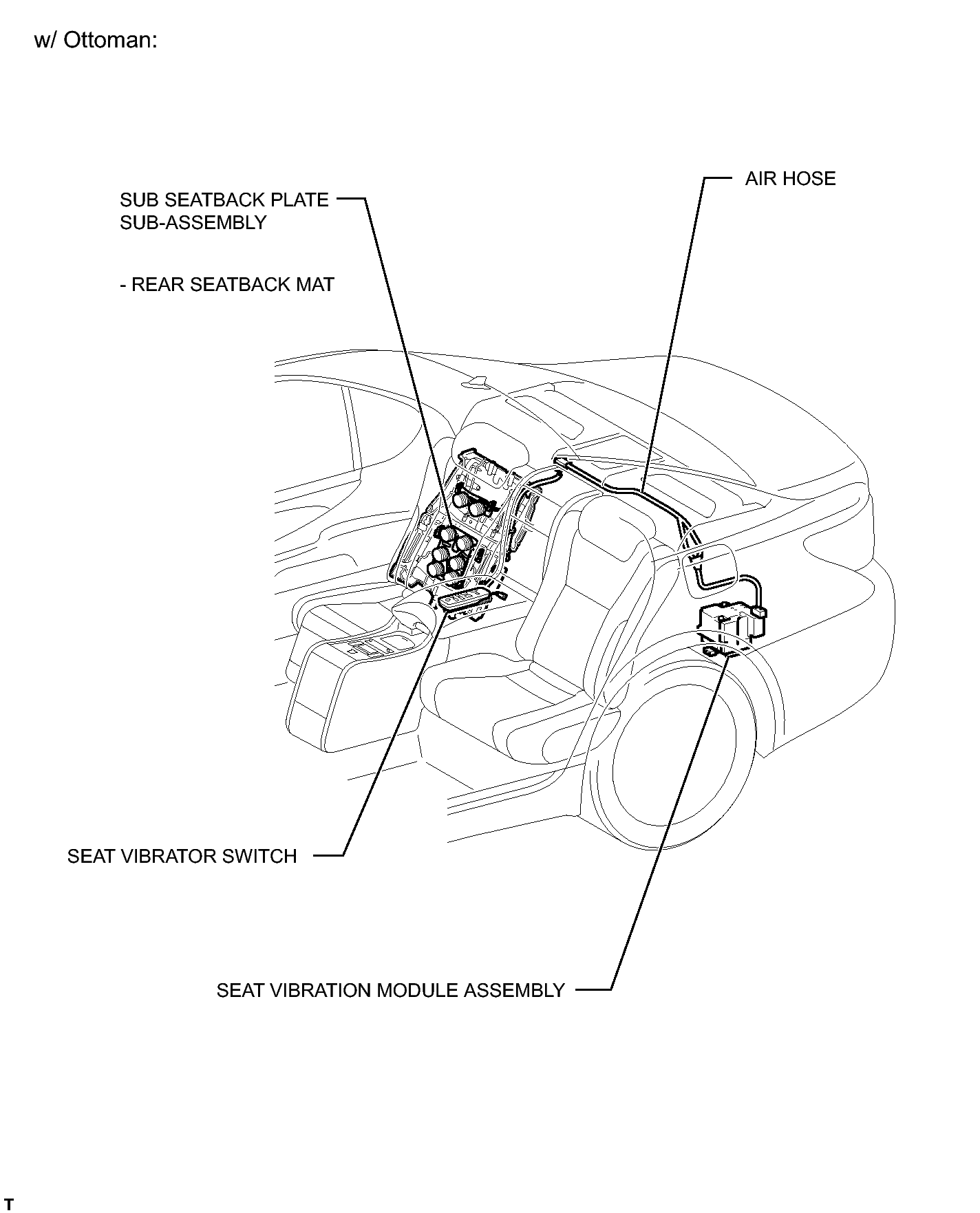

Fig 1: Identifying Seat Vibration System Components Location (3 Of 3)
GTY286507Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
