Parts Location: Illustration

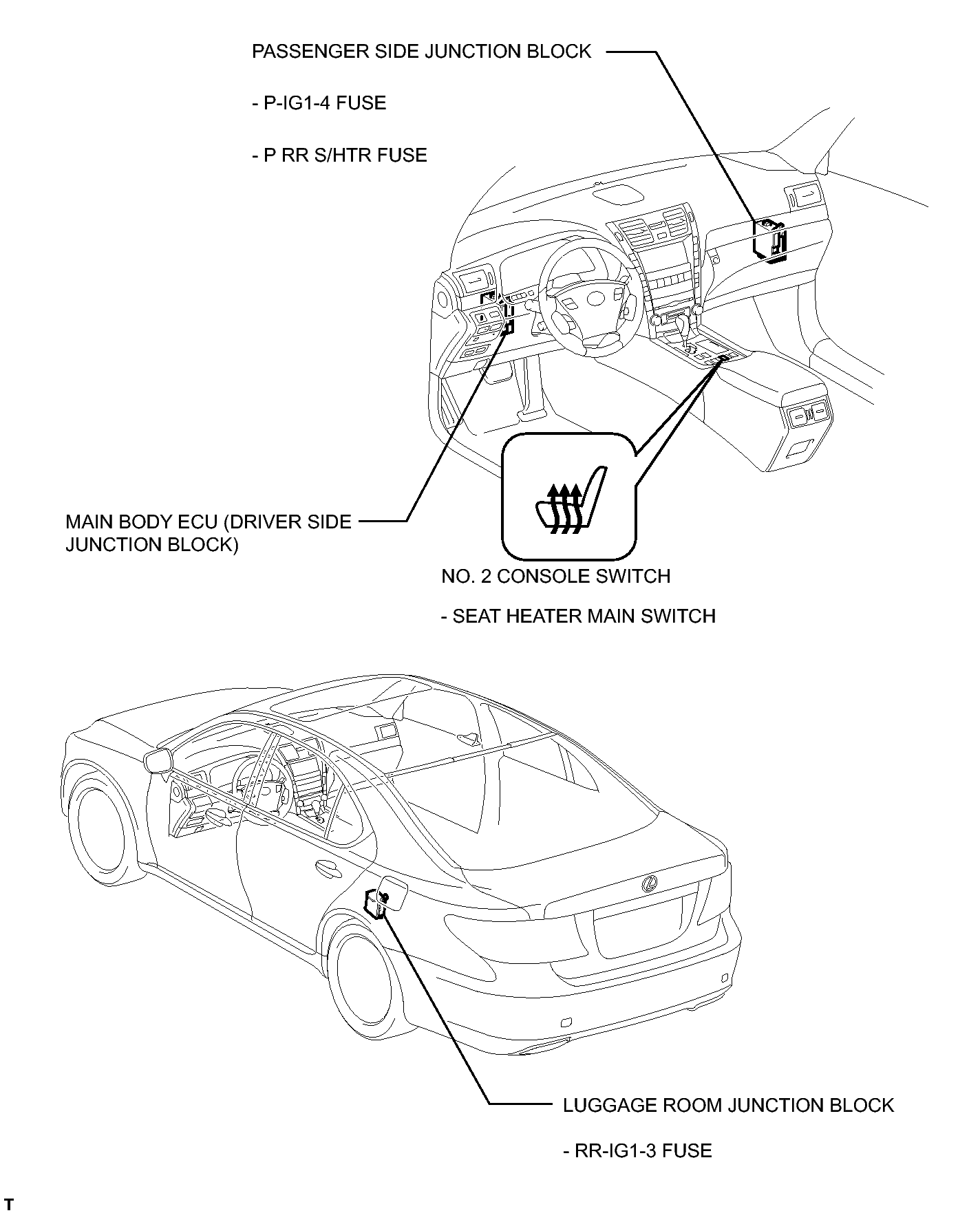

Fig 1: Identifying Seat Heater System Components Location (1 Of 2)
GTY283142Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

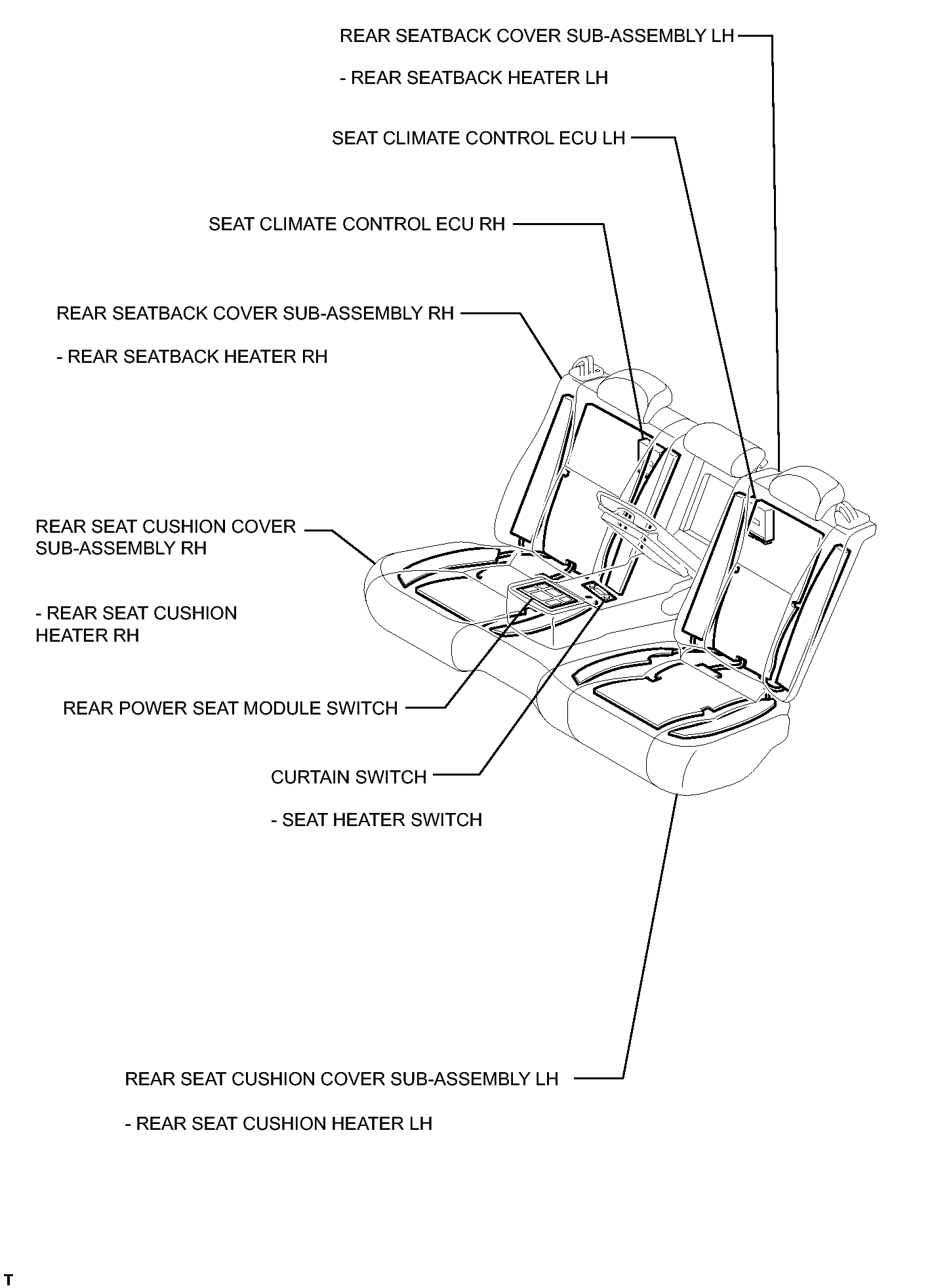

Fig 1: Identifying Seat Heater System Components Location (2 Of 2)
GTY395101Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
