FRONT CONSOLE BOX (w/ Rear Seat Entertainment System): Components: Illustration

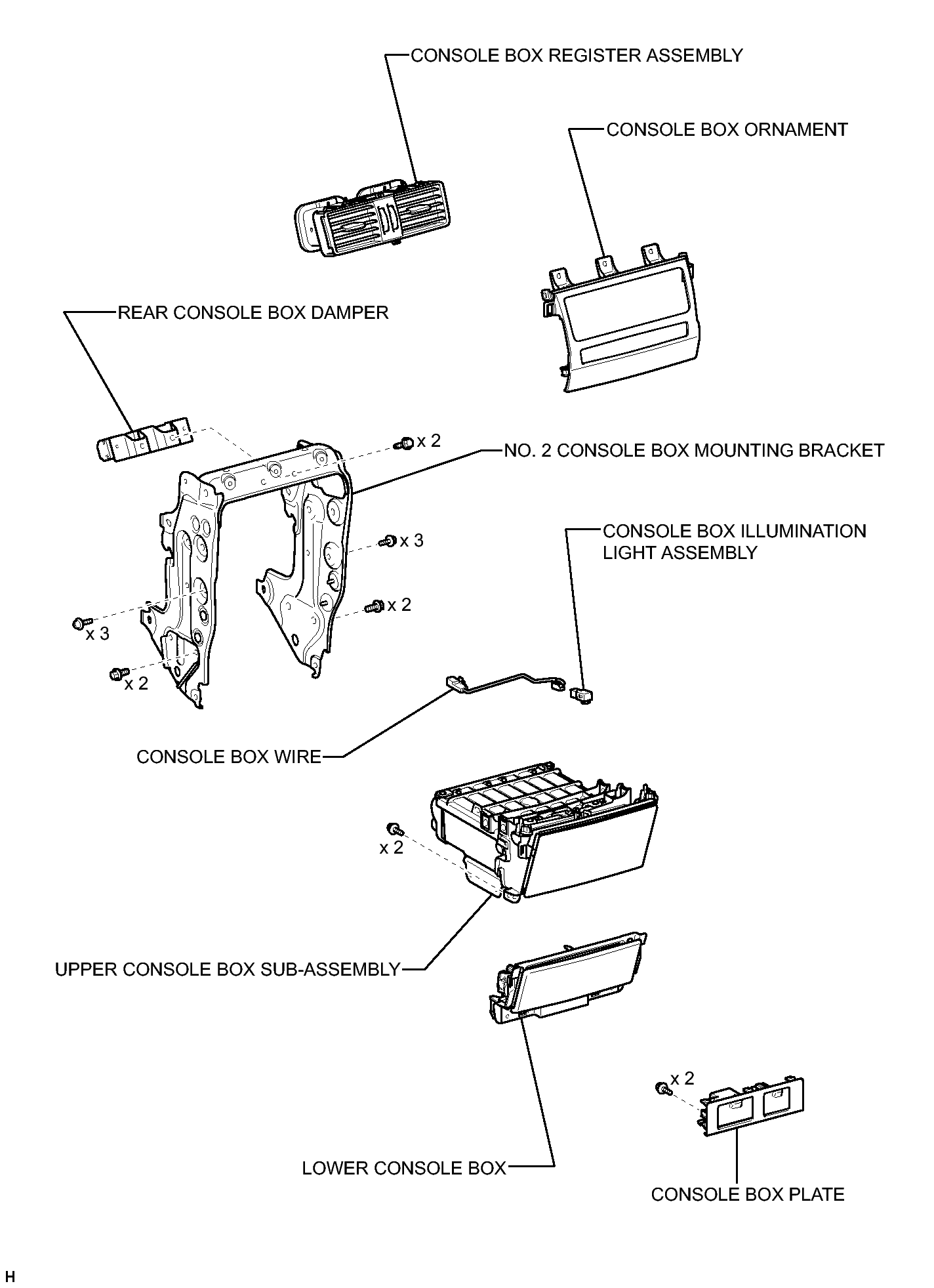

Fig 1: Identifying Front Console Box (W/ Rear Seat Entertainment System) Replacement Components (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

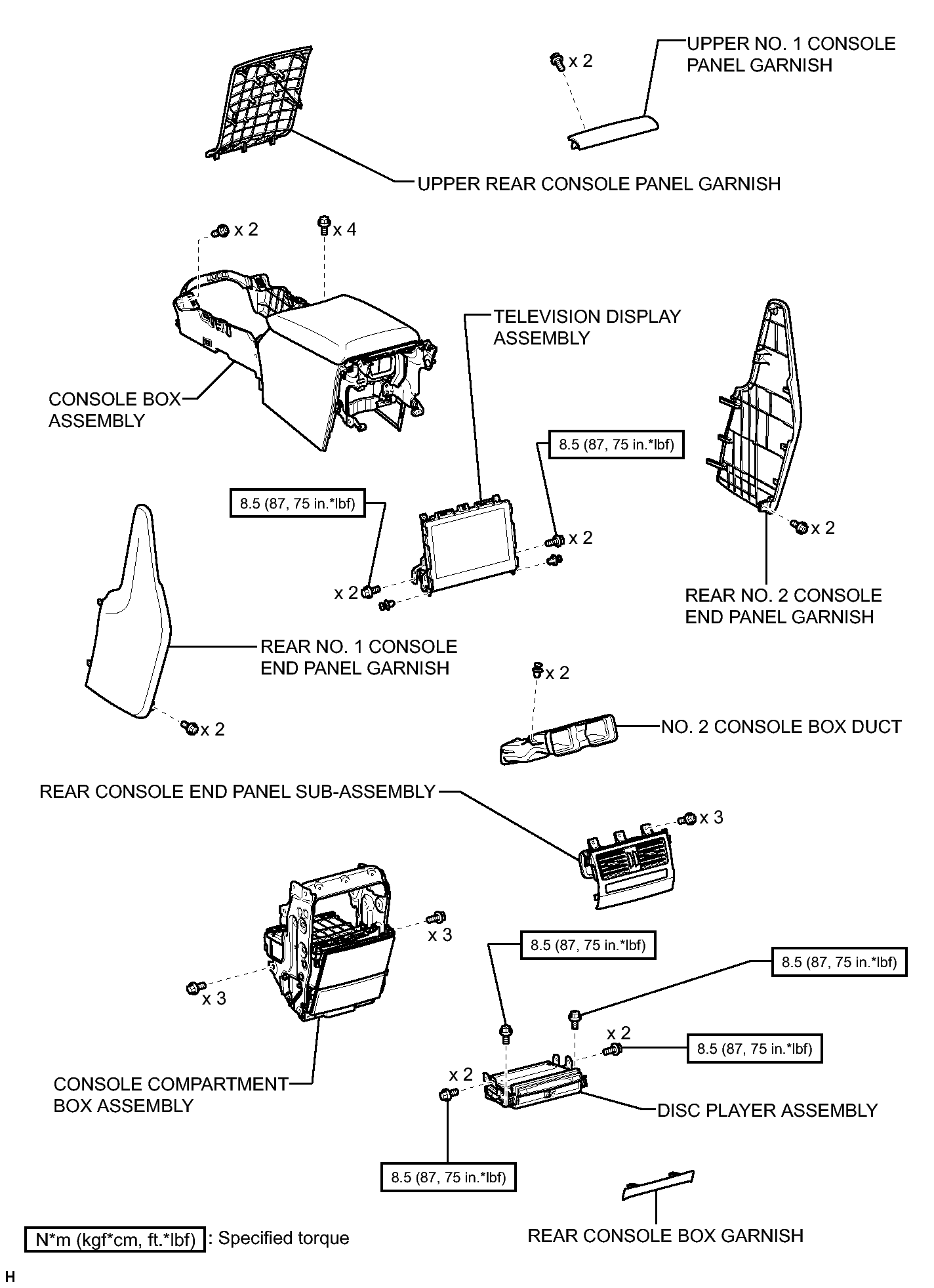

Fig 1: Identifying Front Console Box (W/ Rear Seat Entertainment System) Replacement Components With Torque Specifications (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

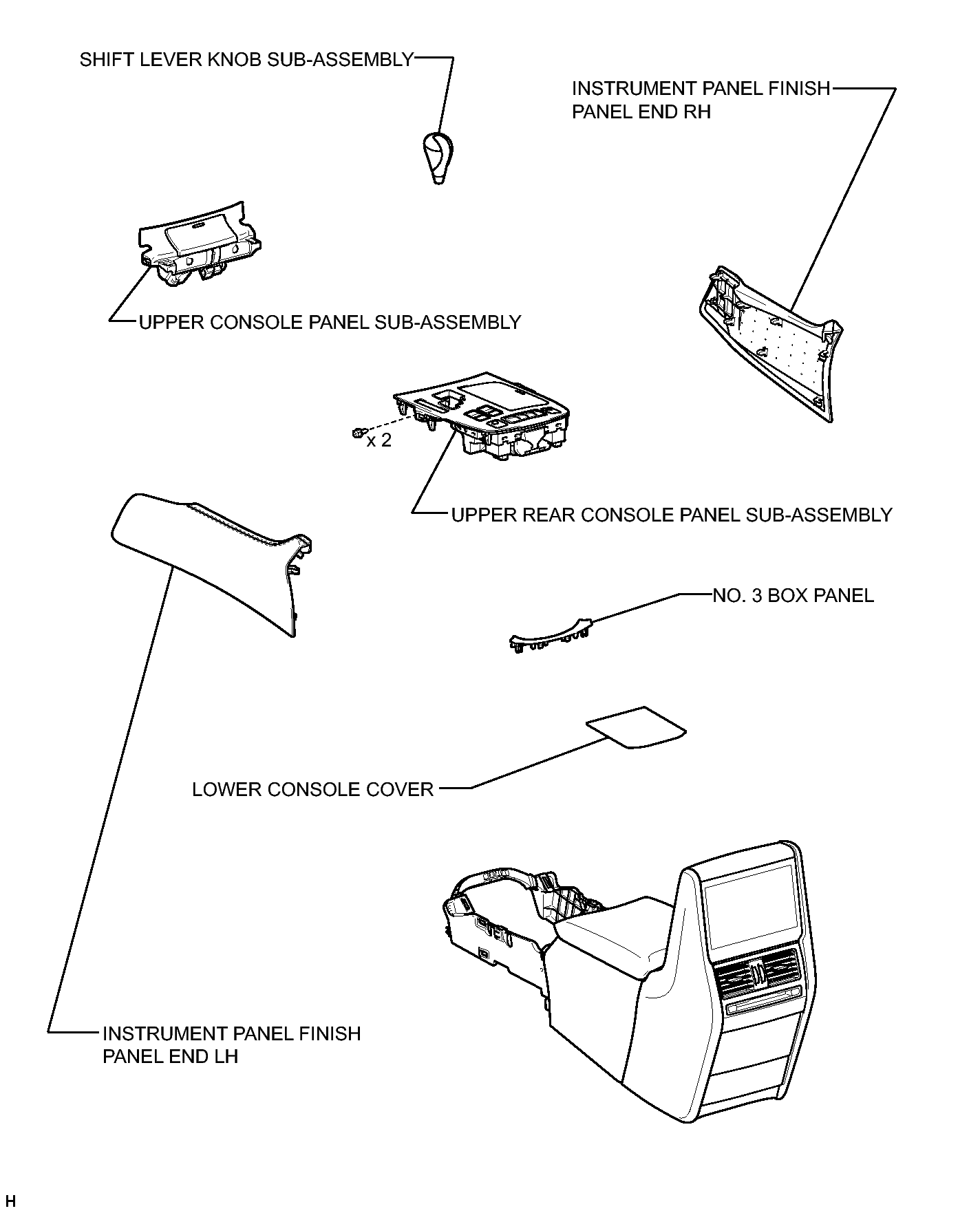

Fig 1: Identifying Front Console Box (W/ Rear Seat Entertainment System) Replacement Components (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

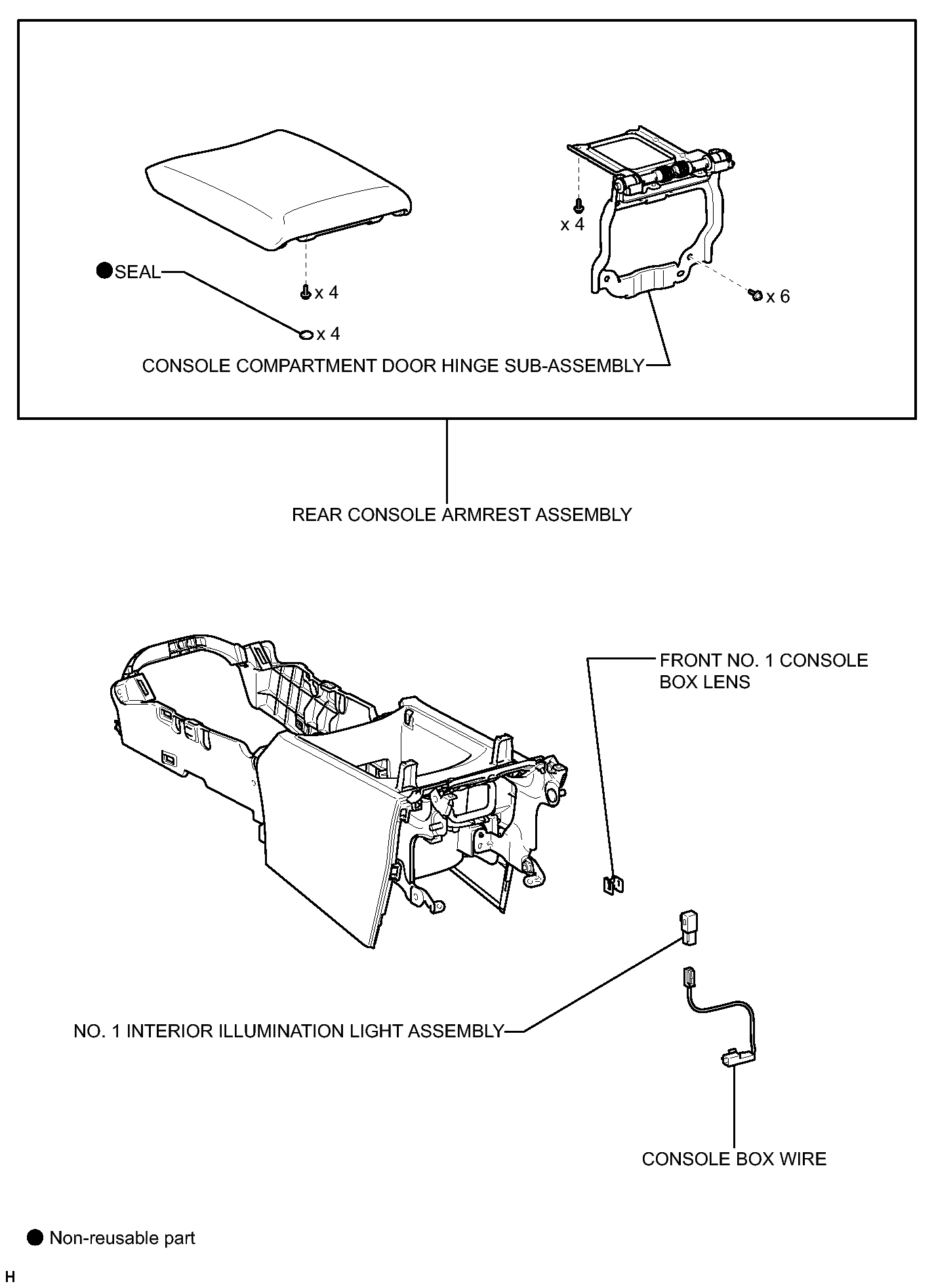

Fig 1: Identifying Front Console Box (W/ Rear Seat Entertainment System) Replacement Components (4 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
