FRONT CONSOLE BOX (w/o Rear Seat Entertainment System): Components: Illustration

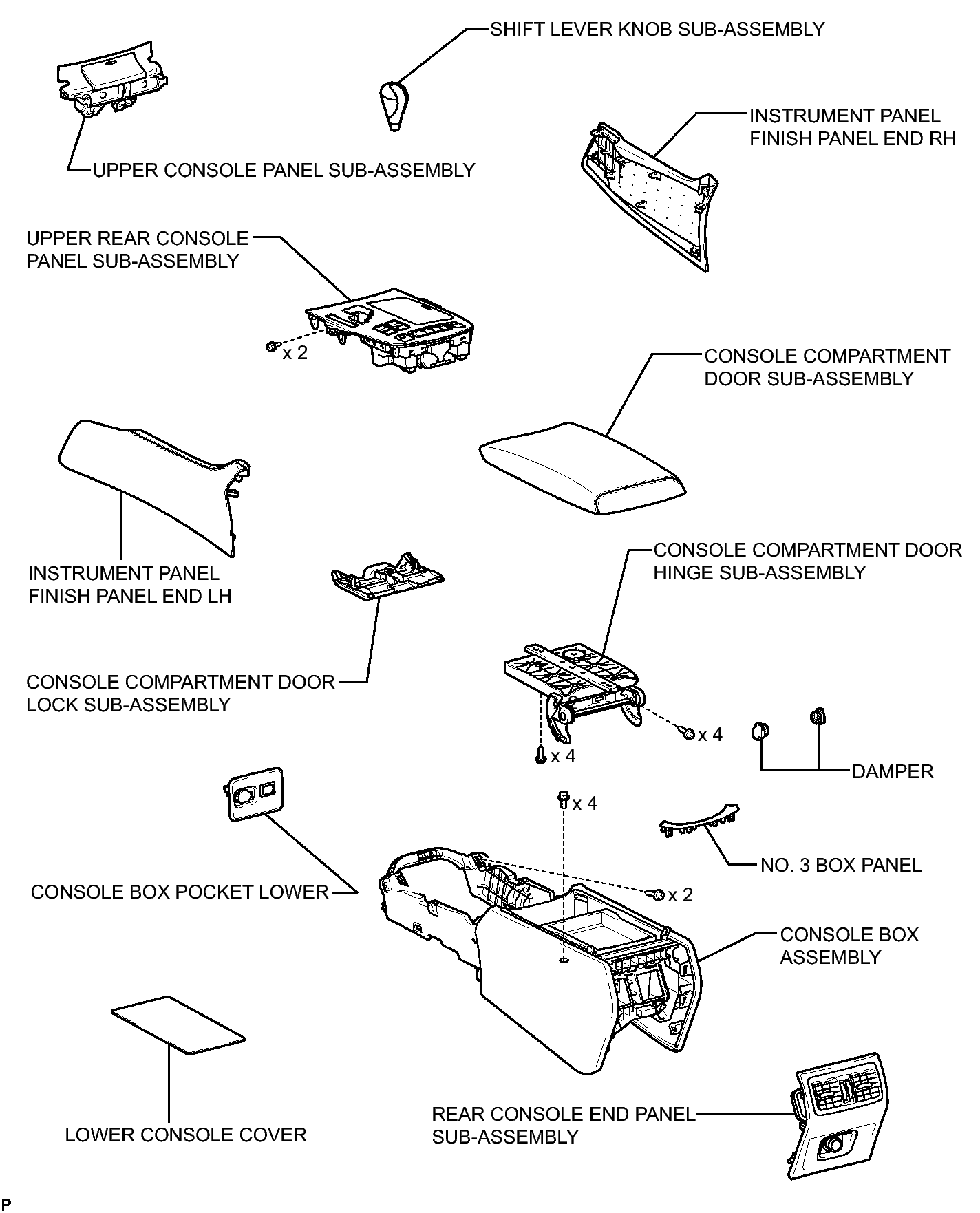

Fig 1: Identifying Front Console Box (W/O Rear Seat Entertainment System) Replacement Components
GTY264191Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
