Parts Location: Illustration

Fig 1: Identifying Rear Seat Entertainment System Components Location (1 Of 3)
GTY276485Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

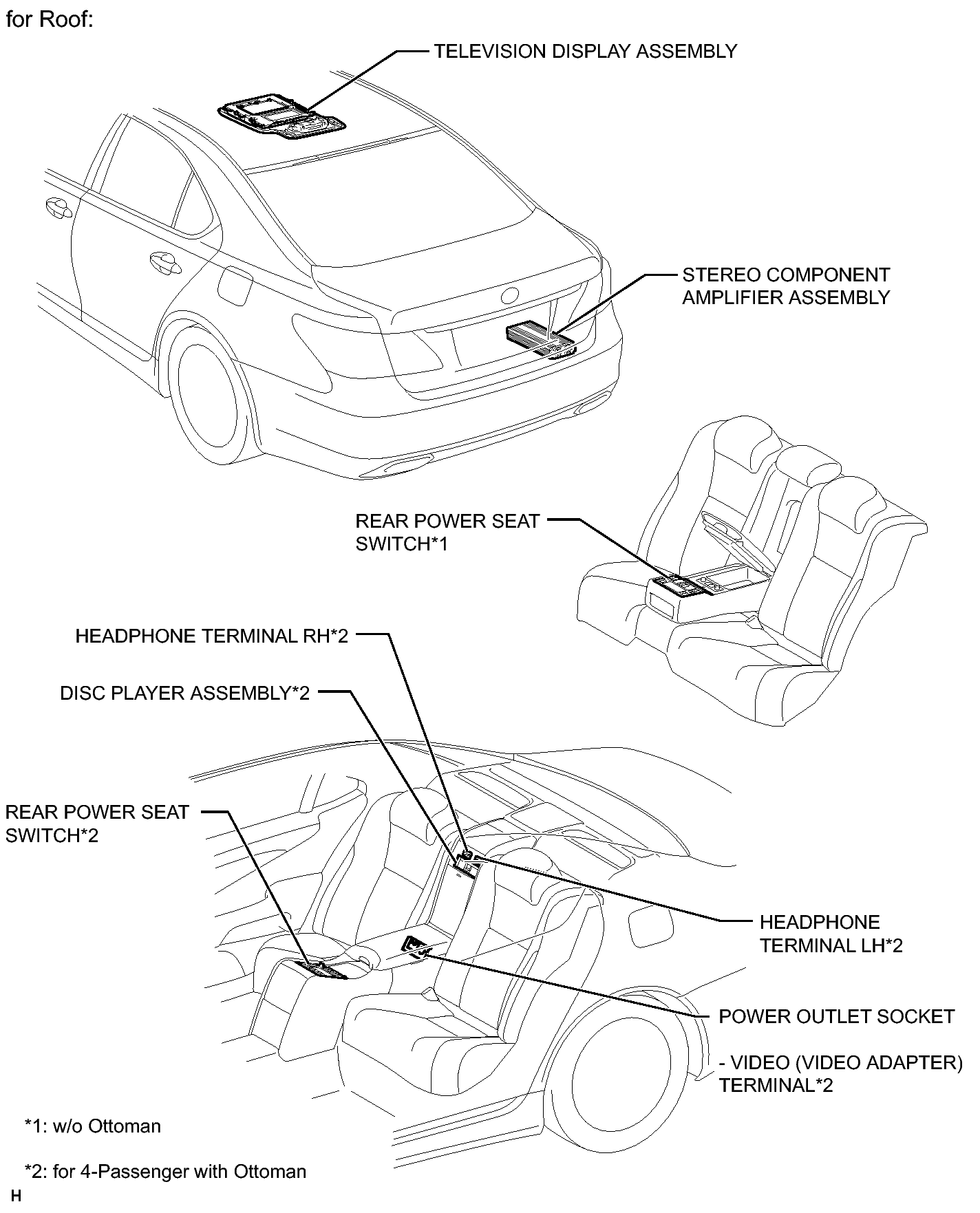

Fig 1: Identifying Rear Seat Entertainment System Components Location (2 Of 3)
GTY269134Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

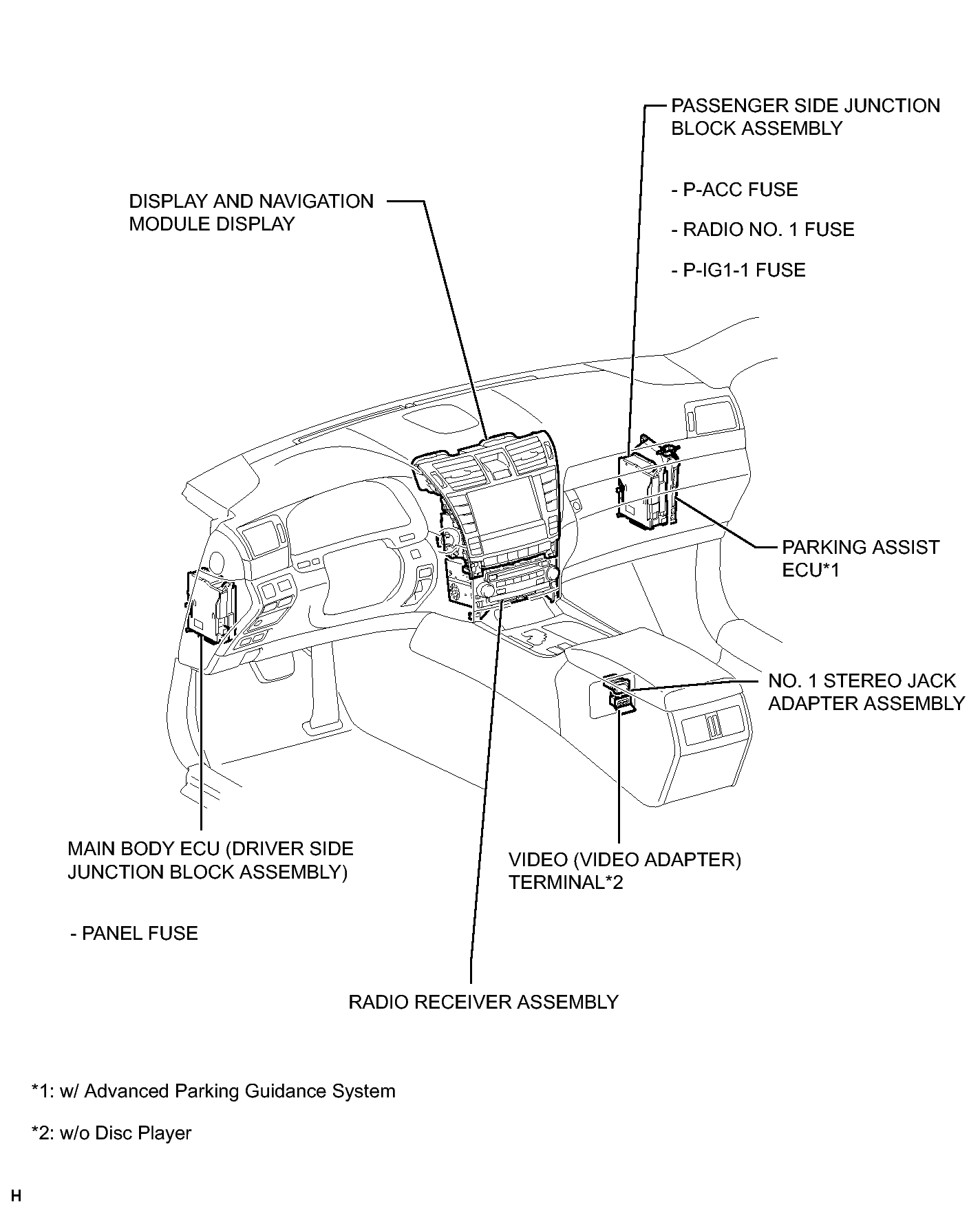

Fig 1: Identifying Rear Seat Entertainment System Components Location (3 Of 3)
GTY260575Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
