Illumination Circuit: Wiring Diagram

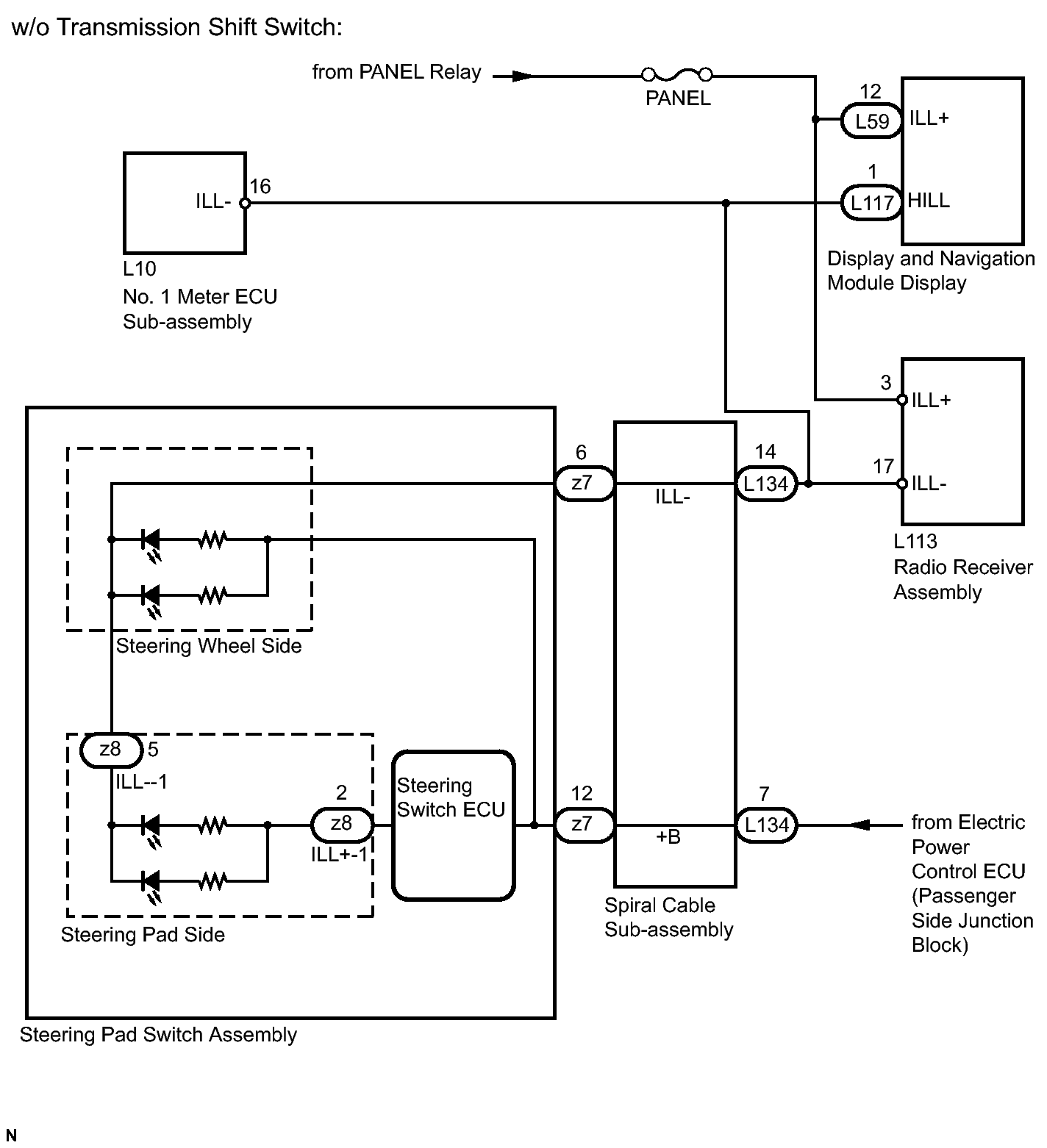

Fig 1: Illumination Circuit (Without Transmission Shift Switch) - Wiring Diagram
GTY348777Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Illumination Circuit (With Transmission Shift Switch) - Wiring Diagram
GTY348776Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
