DTC B15D0: MOST Communication Malfunction: Wiring Diagram

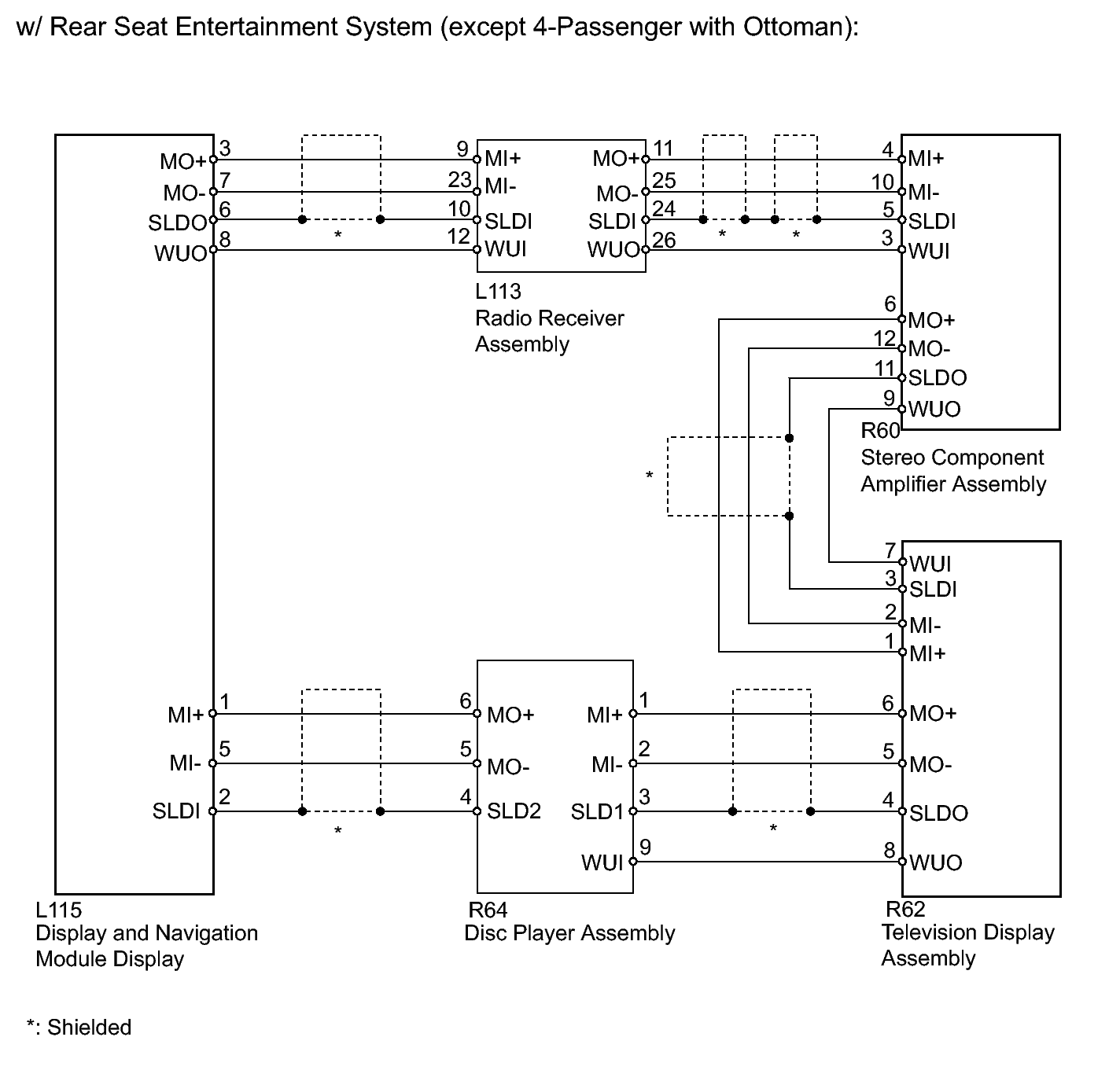

Fig 1: L115 Display And Navigation Module Display Assembly System Diagram (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

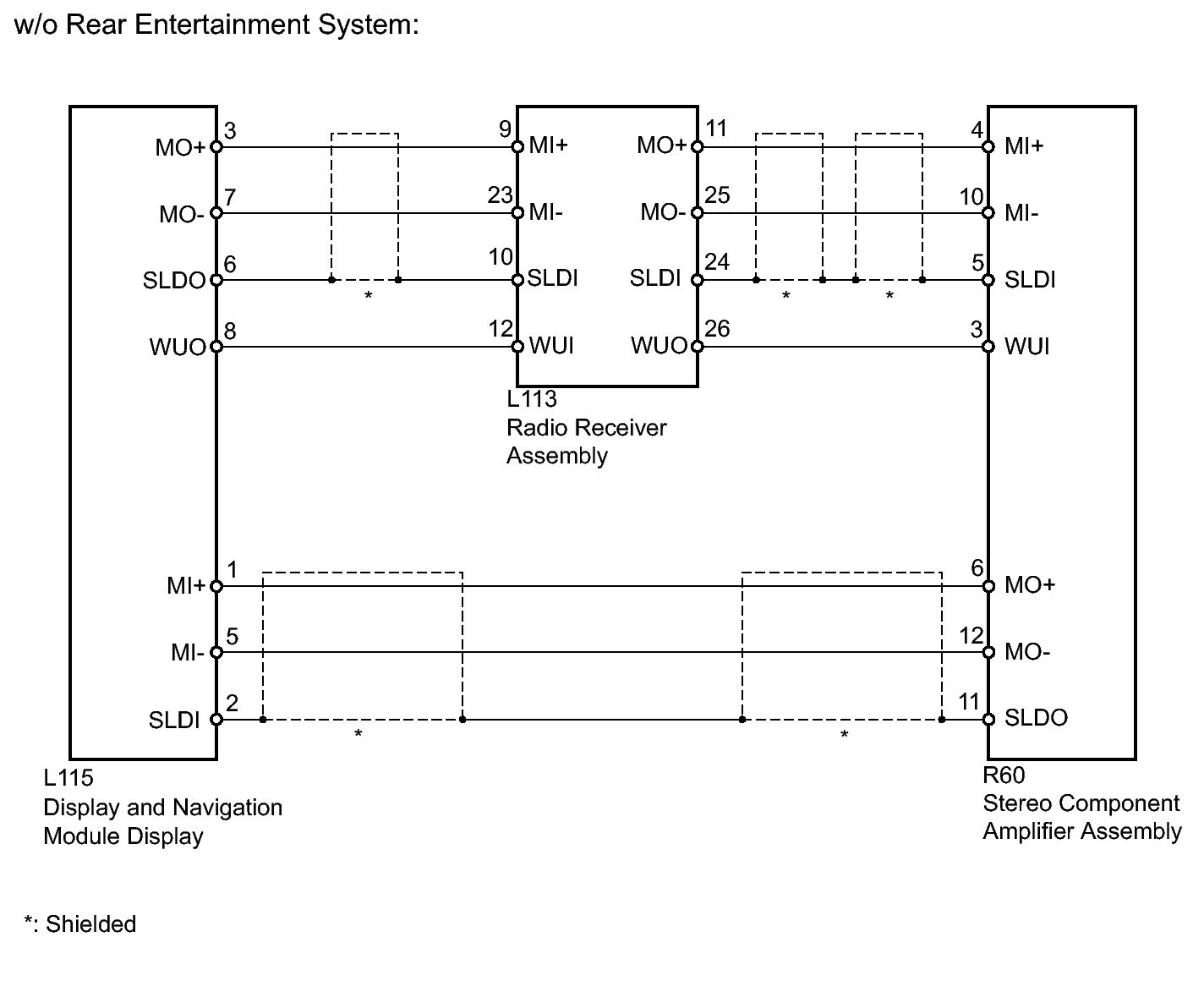

Fig 2: L115 Display And Navigation Module Display Assembly System Diagram (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

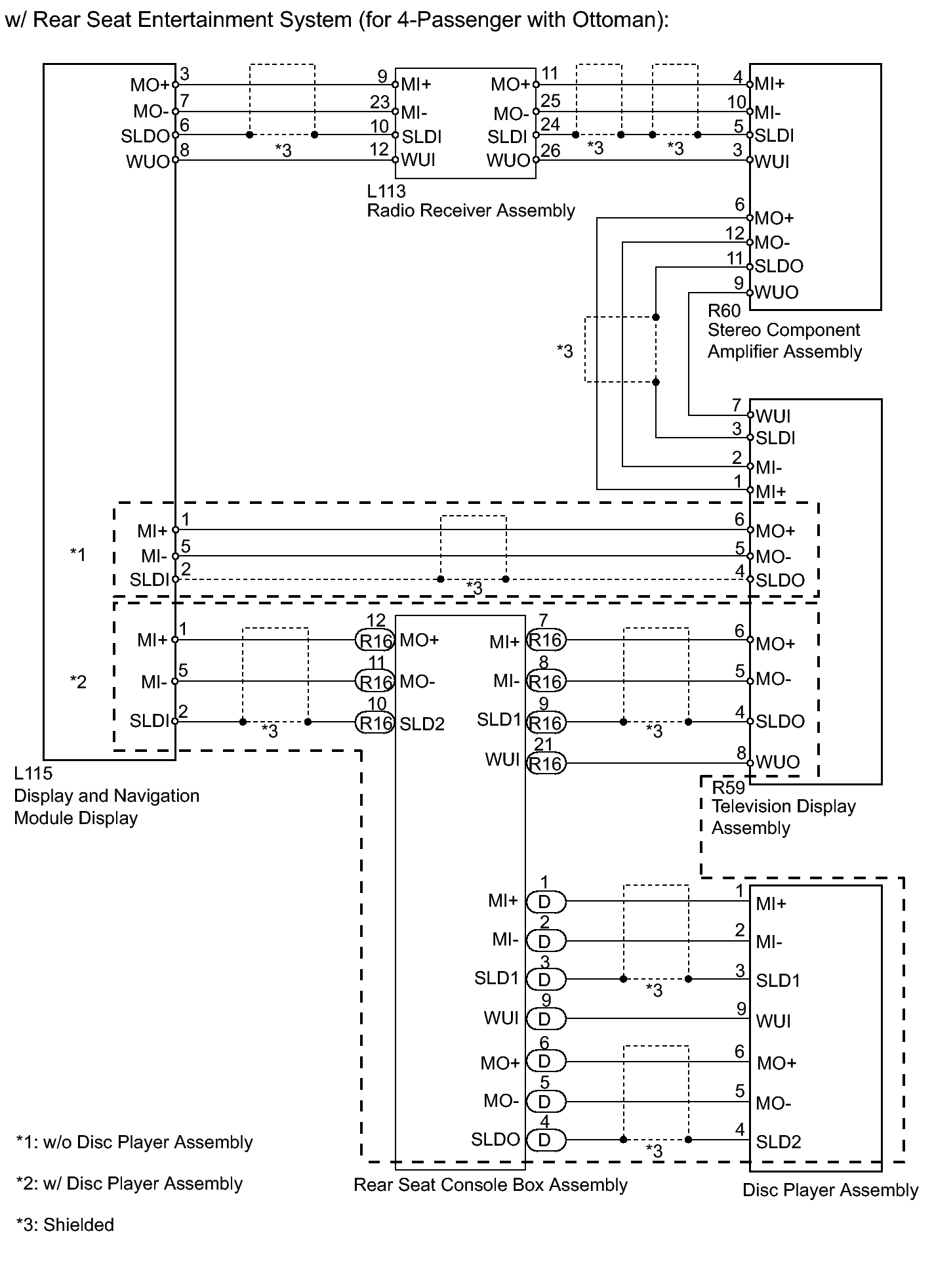

Fig 3: Display And Navigation Module Display Assembly System Diagram (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
