DTC B1595: No Response from Rear Seat Entertainment System; DTC B15D5: Rear Seat Entertainment System Disconnected: Wiring Diagram

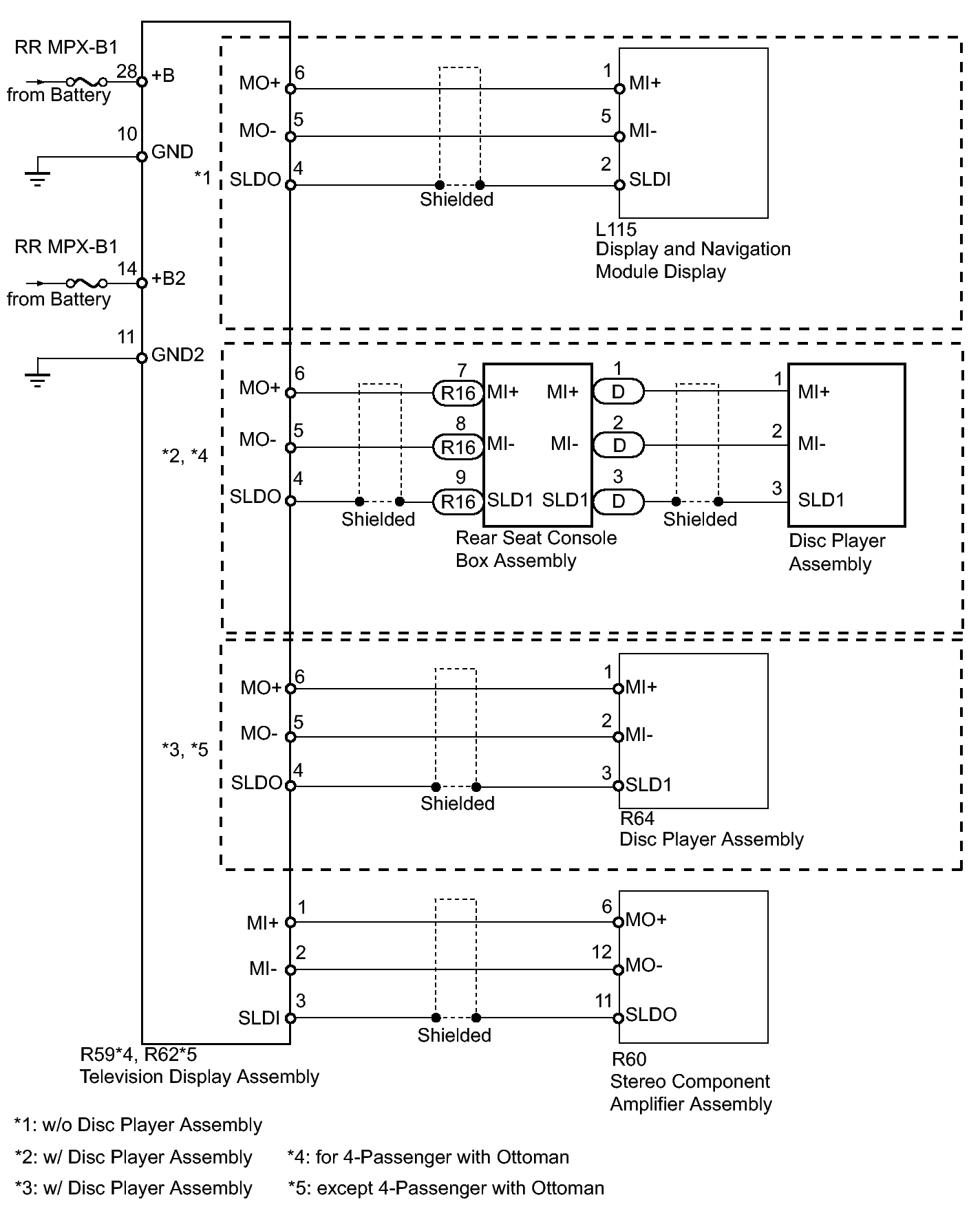

Fig 1: Television Display Assembly - Wiring Diagram
GTY350432Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
