DTC B1592: No Response from DVD Player; DTC B15D2: DVD Player Disconnected: Wiring Diagram

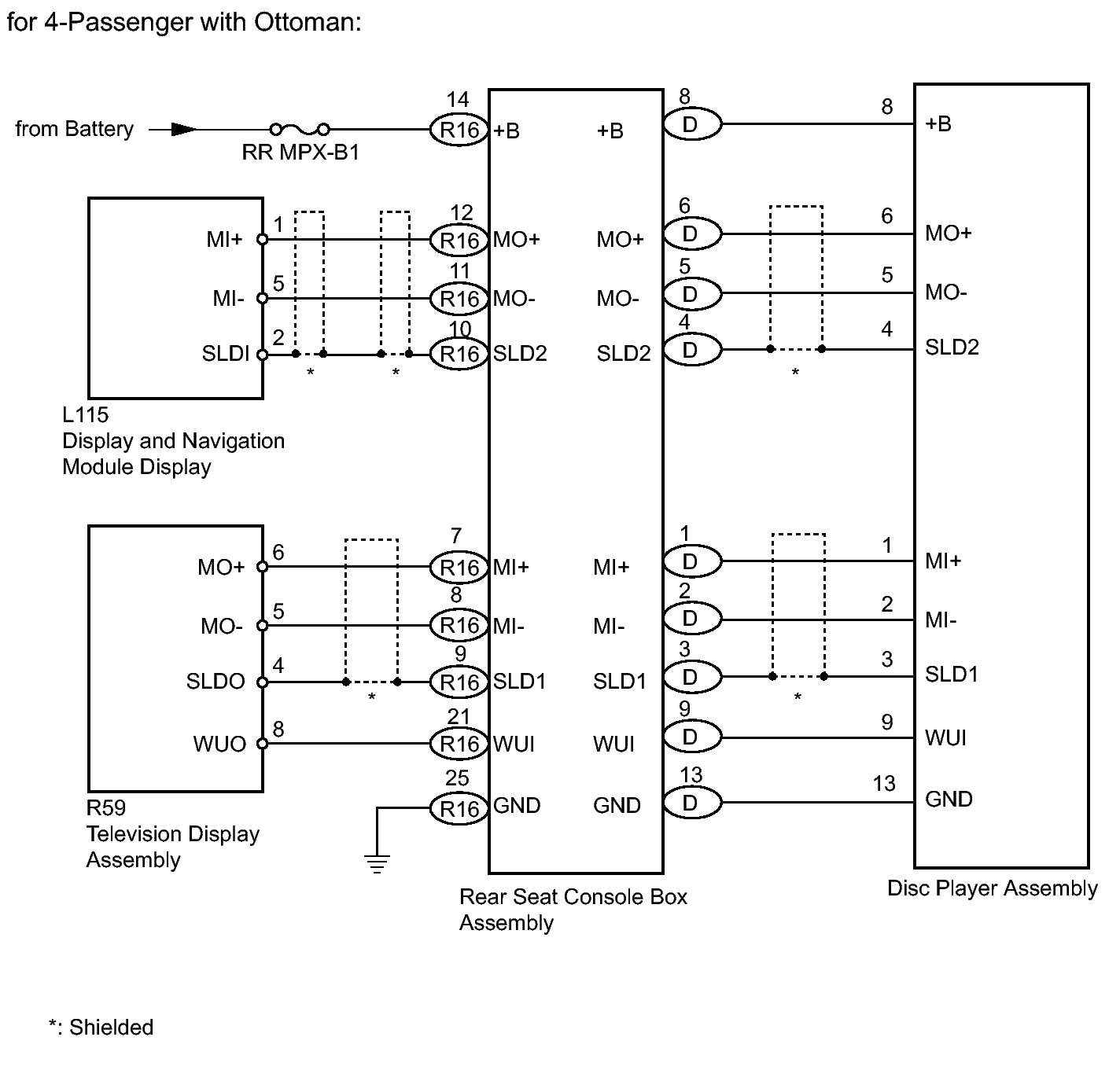

Fig 1: MOST Communication Line (For 4-Passenger With Ottoman) - Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

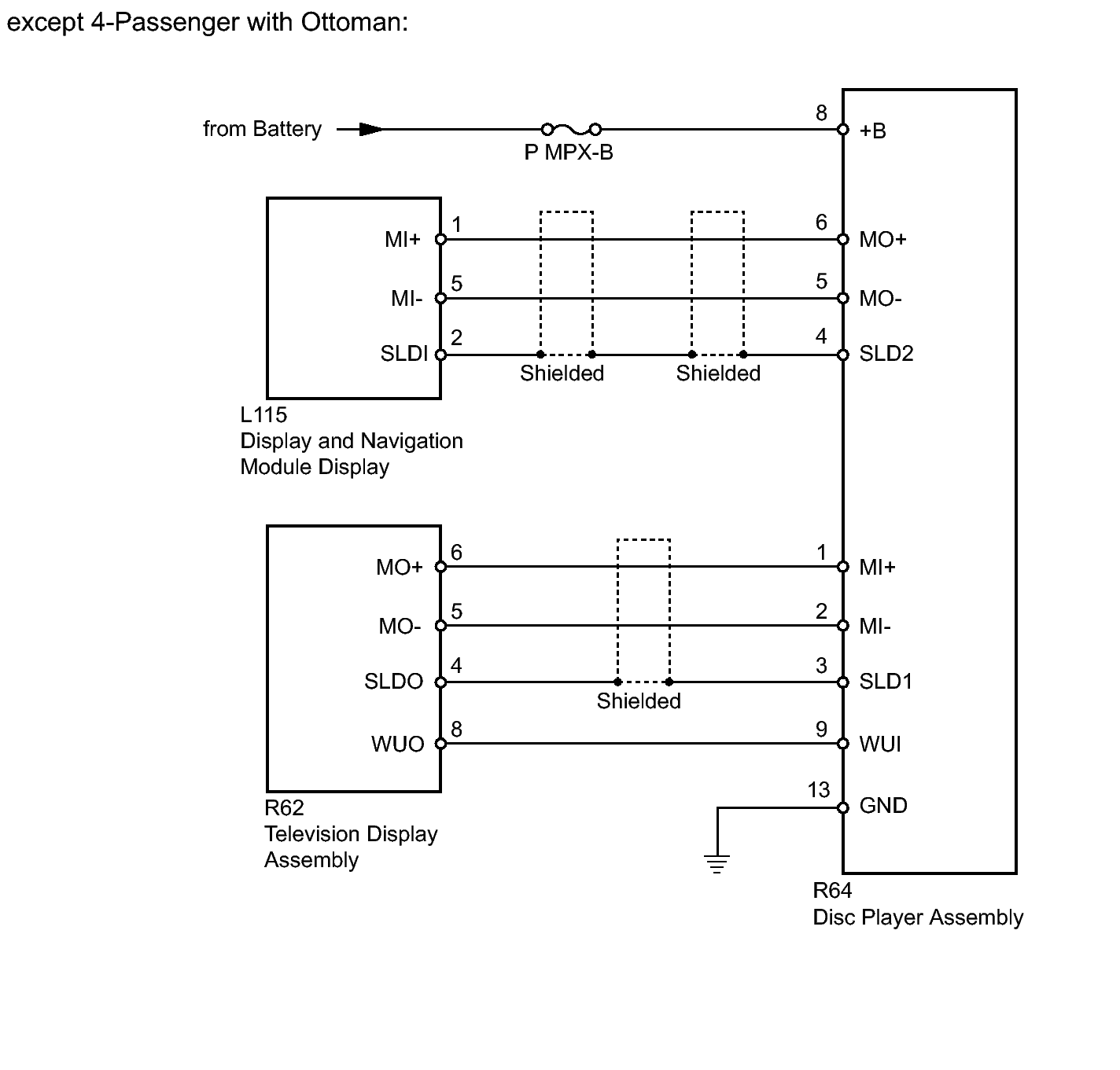

Fig 2: MOST Communication Line (Except 4-Passenger With Ottoman) - Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
