DTC B1592: No Response from DVD Player; DTC B15D2: DVD Player Disconnected: Procedure
- CHECK OPTIONAL COMPONENTS (INCLUDING ASSOCIATED WIRING)
- Check that optional components (including associated wiring) which generate radio waves are not installed.RESULT
Result Proceed to Optional components (including associated wiring) are installed. A Optional components (including associated wiring) are not installed. B HINT:
- Electrical noise from radio waves generated by optional components or the wiring for those components may affect MOST communication.
- This DTC may be stored when a MOST communication error occurs due to electrical noise.
B → See step 3
A: Go to next step
- Check that optional components (including associated wiring) which generate radio waves are not installed.
- REMOVE OPTIONAL COMPONENTS (INCLUDING ASSOCIATED WIRING)
- Remove optional components (including associated wiring).NOTE:
Do not remove optional components or associated wiring without the permission of the customer.
NEXT: Go to next step
- Remove optional components (including associated wiring).
- CHECK FOR DTC
- Clear the DTCs. Refer to DTC CHECK / CLEAR .
- Check for DTCs and check if the same trouble occurs again.
OK
No DTCs are output.
NG → See step 4
OK → END
- CHECK HARNESS AND CONNECTOR (DISC PLAYER - BATTERY AND BODY GROUND)
- Disconnect the D*1 or R64*2 disc player assembly connector.
- *1: for 4-Passenger with Ottoman
- *2: except 4-Passenger with Ottoman
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
for 4-Passenger with Ottoman
except 4-Passenger with Ottoman
Tester Connection Condition Specified Condition D-13 (GND) - Body ground Always Below 1 Ω Tester Connection Condition Specified Condition R64-13 (GND) - Body ground Always Below 1 Ω - Measure the voltage according to the value(s) in the table below.
Standard Voltage
for 4-Passenger with Ottoman
except 4-Passenger with Ottoman
Tester Connection Condition Specified Condition D-8 (+B) - Body ground Always 11 to 14 V Tester Connection Condition Specified Condition R64-8 (+B) - Body ground Always 11 to 14 V TEXT IN ILLUSTRATION*A for 4-Passenger with Ottoman *B except 4-Passenger with Ottoman *a Front view of wire harness connector
(to Disc Player Assembly)RESULTResult Proceed to OK A NG (except 4-Passenger with Ottoman) B NG (for 4-Passenger with Ottoman) C
B → REPAIR OR REPLACE HARNESS OR CONNECTOR
C → See step 8
A: Go to next step
- Disconnect the D*1 or R64*2 disc player assembly connector.
- CHECK HARNESS AND CONNECTOR (DISC PLAYER - DISPLAY AND NAVIGATION MODULE DISPLAY)
- for 4-Passenger with Ottoman:
- Disconnect the D disc player assembly connector.
- Disconnect the L115 display and navigation module display connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition D-6 (MO+) - L115-1 (MI+) Always Below 1 Ω D-5 (MO-) - L115-5 (MI-) Always Below 1 Ω D-4 (SLD2) - L115-2 (SLDI) Always Below 1 Ω D-6 (MO+) - Body ground Always 10 kΩ or higher D-5 (MO-) - Body ground Always 10 kΩ or higher D-4 (SLD2) - Body ground Always 10 kΩ or higher
- except 4-Passenger with Ottoman:
- Disconnect the R64 disc player assembly connector.
- Disconnect the L115 display and navigation module display connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition R64-6 (MO+) - L115-1 (MI+) Always Below 1 Ω R64-5 (MO-) - L115-5 (MI-) Always Below 1 Ω R64-4 (SLD2) - L115-2 (SLDI) Always Below 1 Ω R64-6 (MO+) - Body ground Always 10 kΩ or higher R64-5 (MO-) - Body ground Always 10 kΩ or higher R64-4 (SLD2) - Body ground Always 10 kΩ or higher RESULTResult Proceed to OK A NG (except 4-Passenger with Ottoman) B NG (for 4-Passenger with Ottoman) C
B → REPAIR OR REPLACE HARNESS OR CONNECTOR
C → See step 8
A: Go to next step
- for 4-Passenger with Ottoman:
- CHECK HARNESS AND CONNECTOR (DISC PLAYER - TELEVISION DISPLAY)
- *1: except 4-Passenger with Ottoman
- *2: for 4-Passenger with Ottoman
- Disconnect the D*1 or R64*2 disc player assembly connector.
- Disconnect the R62*1 or R59*2 television assembly connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
except 4-Passenger with Ottoman
for 4-Passenger with Ottoman
Tester Connection Condition Specified Condition R64-1 (MI+) - R62-6 (MO+) Always Below 1 Ω R64-2 (MI-) - R62-5 (MO-) Always Below 1 Ω R64-3 (SLD1) - R62-4 (SLDO) Always Below 1 Ω R64-9 (WUI) - R62-8 (WUO) Always Below 1 Ω R64-1 (MI+) - Body ground Always 10 kΩ or higher R64-2 (MI-) - Body ground Always 10 kΩ or higher R64-3 (SLD1) - Body ground Always 10 kΩ or higher R64-9 (WUI) - Body ground Always 10 kΩ or higher Tester Connection Condition Specified Condition D-1 (MI+) - R59-6 (MO+) Always Below 1 Ω D-2 (MI-) - R59-5 (MO-) Always Below 1 Ω D-3 (SLD1) - R59-4 (SLDO) Always Below 1 Ω D-9 (WUI) - R59-8 (WUO) Always Below 1 Ω D-1 (MI+) - Body ground Always 10 kΩ or higher D-2 (MI-) - Body ground Always 10 kΩ or higher D-3 (SLD1) - Body ground Always 10 kΩ or higher D-9 (WUI) - Body ground Always 10 kΩ or higher RESULTResult Proceed to OK A NG (except 4-Passenger with Ottoman) B NG (for 4-Passenger with Ottoman) C
B → REPAIR OR REPLACE HARNESS OR CONNECTOR
C → See step 8
A: Go to next step
- REPLACE DISC PLAYER ASSEMBLY
- Temporarily replace the disc player assembly with a new or normally functioning.
- Clear the DTCs. Refer to DTC CHECK / CLEAR .
- Recheck for DTCs and check if the same trouble occurs again.
OK
No DTCs are output.
NG → See step 9
OK → END

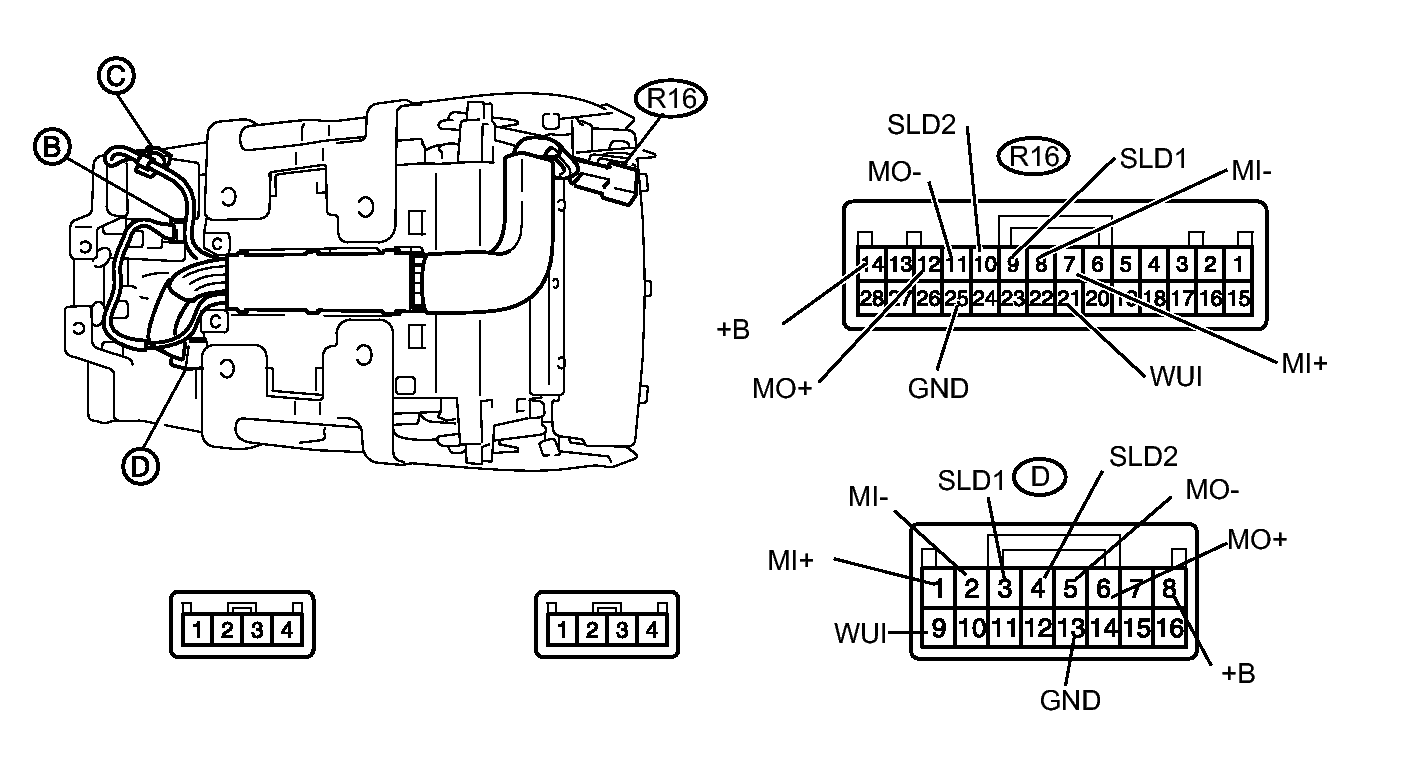

- INSPECT REAR SEAT CONSOLE BOX ASSEMBLY
- Remove the rear seat console box assembly. Refer to REMOVAL .
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition R16-14 (+B) - D-8 (+B) Always Below 1 Ω R16-12 (MO+) - D-6 (MO+) Always Below 1 Ω R16-11 (MO-) - D-5 (MO-) Always Below 1 Ω R16-10 (SLD2) - D-4 (SLD2) Always Below 1 Ω R16-7 (MI+) - D-1 (MI+) Always Below 1 Ω R16-8 (MI-) - D-2 (MI-) Always Below 1 Ω R16-9 (SLD1) - D-3 (SLD1) Always Below 1 Ω R16-21 (WUI) - D-9 (WUI) Always Below 1 Ω R16-25 (GND) - D-13 (GND) Always Below 1 Ω
NG → See step 10
OK → REPAIR OR REPLACE HARNESS OR CONNECTOR
- REPLACE DISPLAY AND NAVIGATION MODULE DISPLAY. Refer to REMOVAL
- REPLACE REAR SEAT CONSOLE BOX ASSEMBLY. Refer to REMOVAL
