DTC B156B: Multi-media Interface ECU Disconnected; DTC B156E: No Response from Multi-media Interface ECU: Wiring Diagram

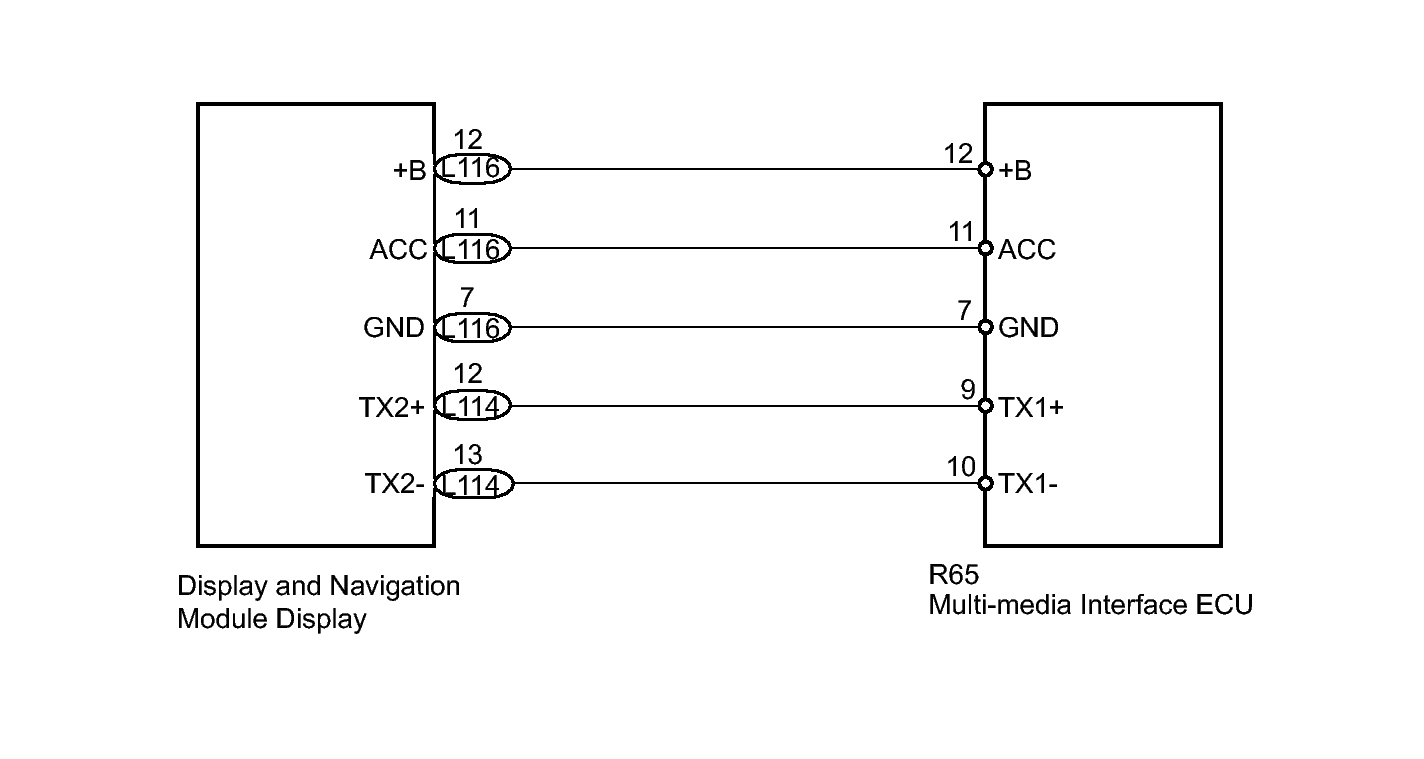

Fig 1: Display And Navigation Module Display - Wiring Diagram
GTY282070Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
