Parts Location: Illustration

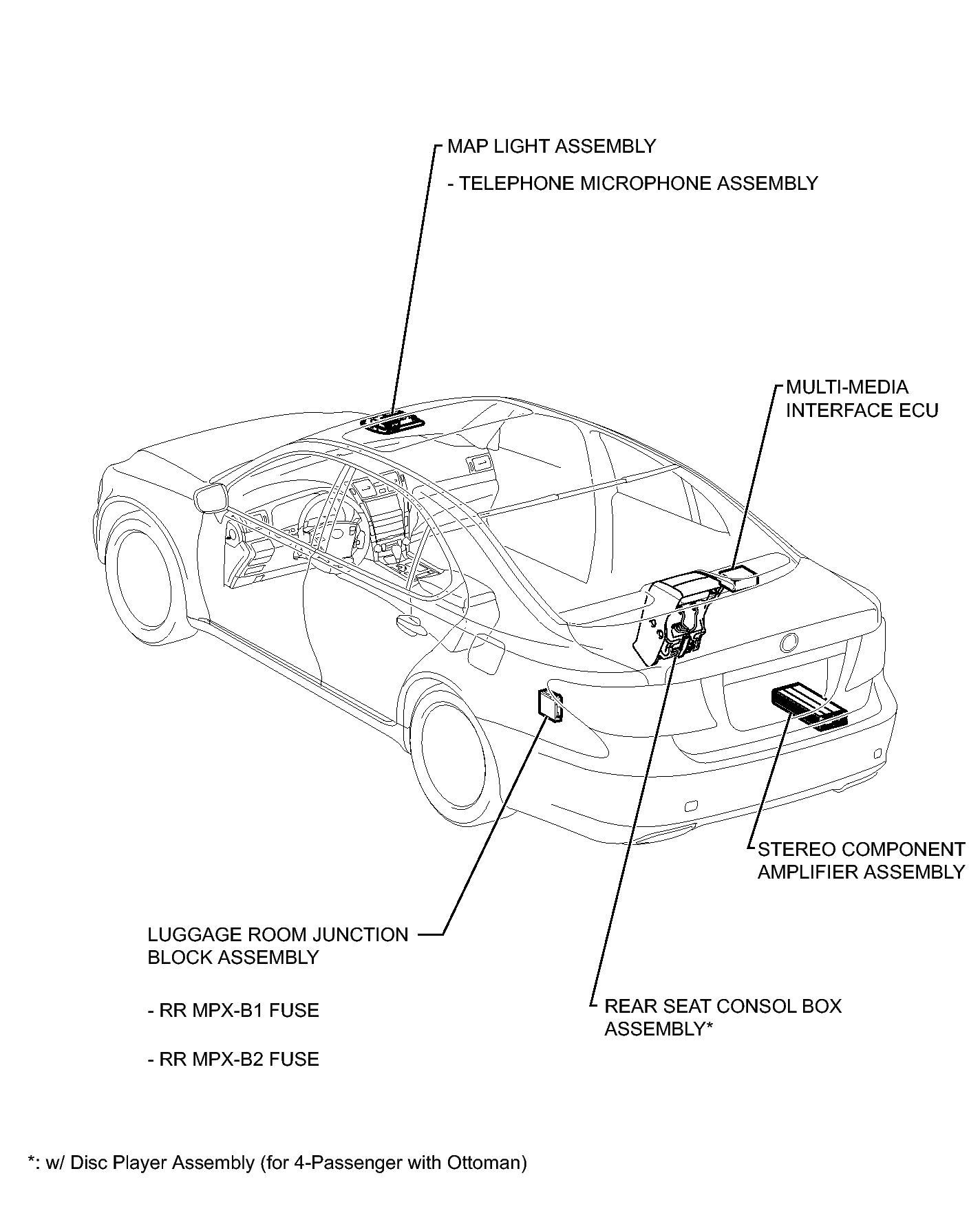

Fig 1: Identifying Navigation System (for DVD) Components Location (1 Of 4)
GTY358480Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

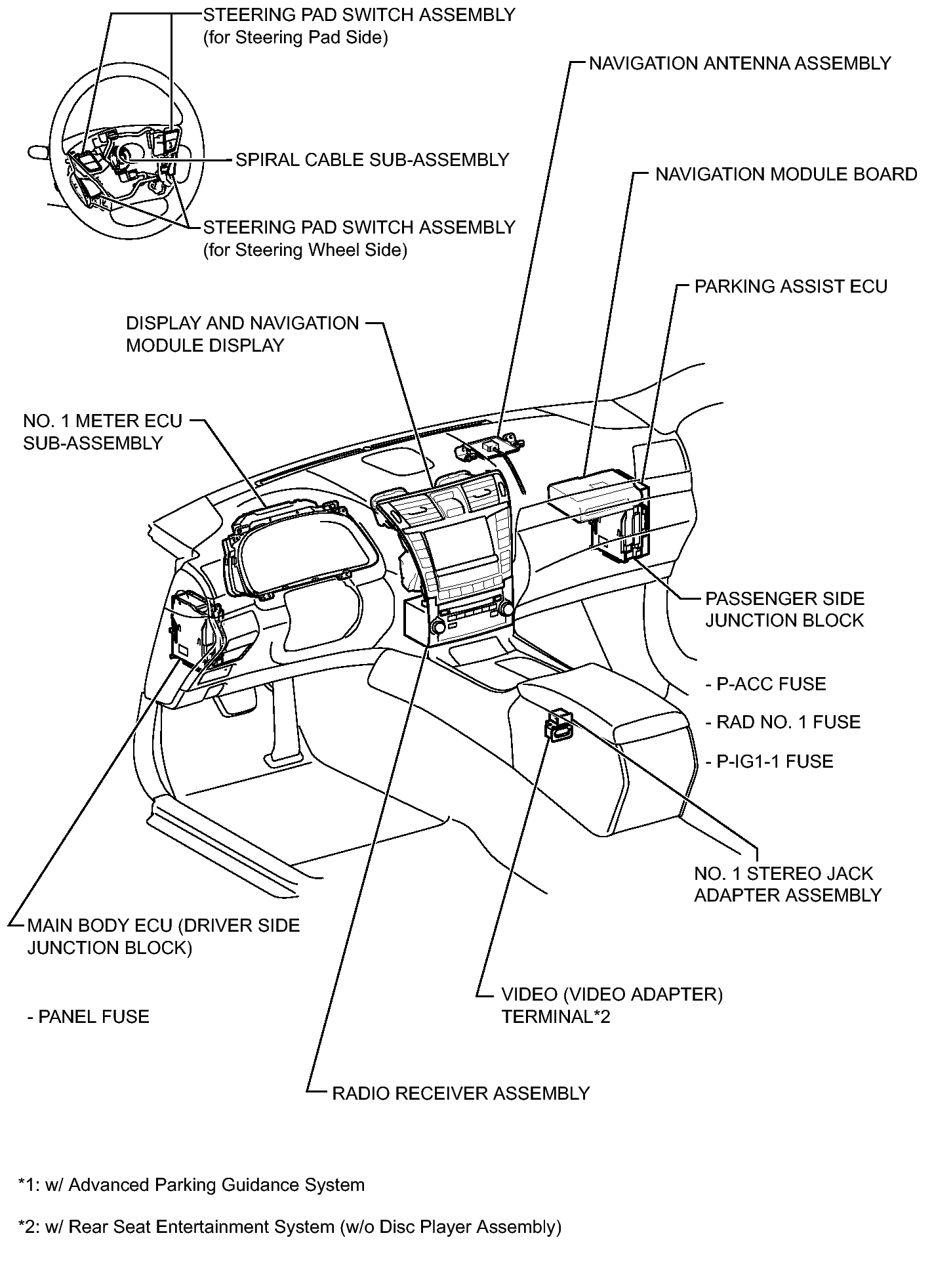

Fig 1: Identifying Navigation System Components Location (2 Of 4)
GTY358903Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

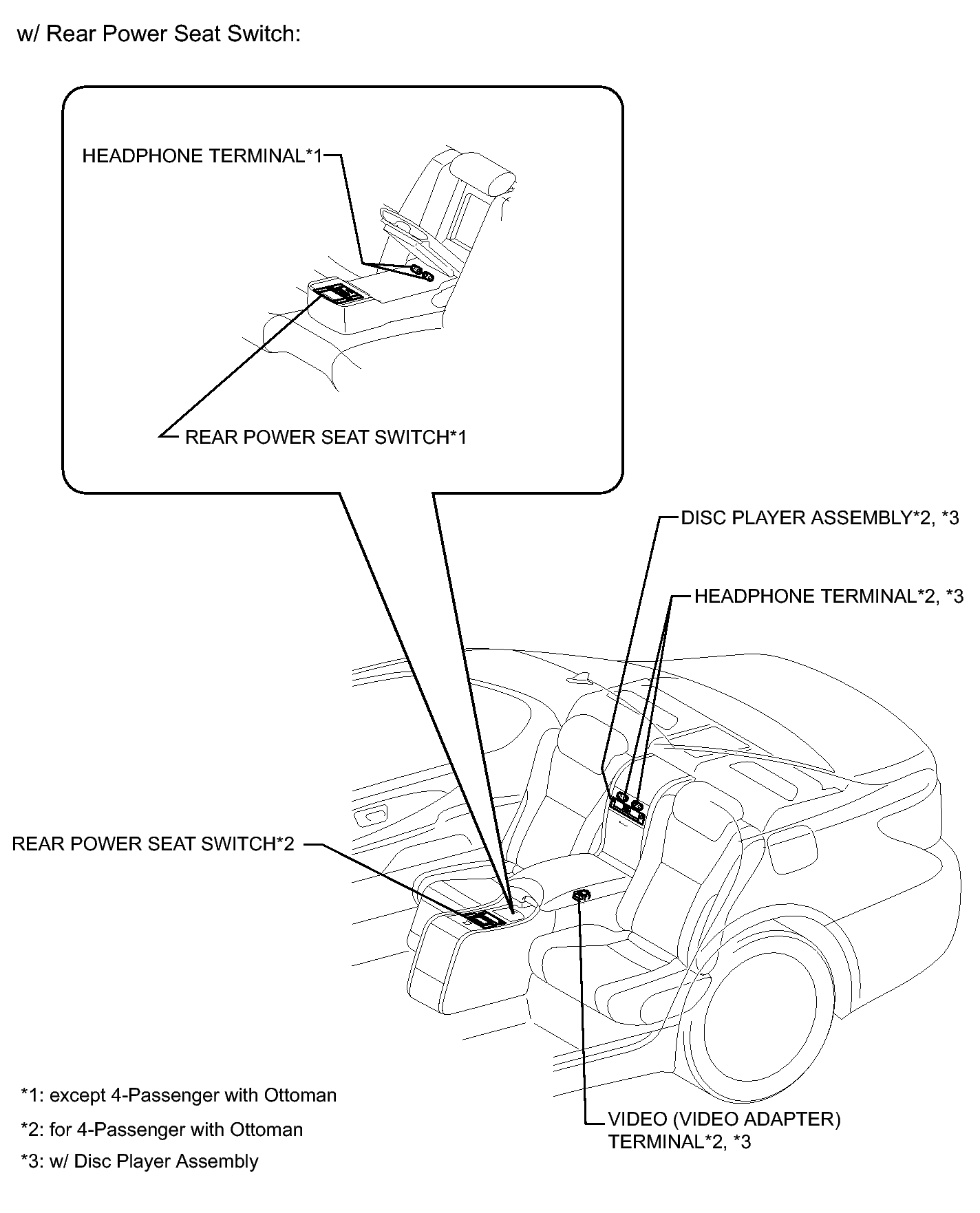

Fig 1: Identifying Navigation System (for DVD) Components Location (3 Of 4)
GTY275935Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


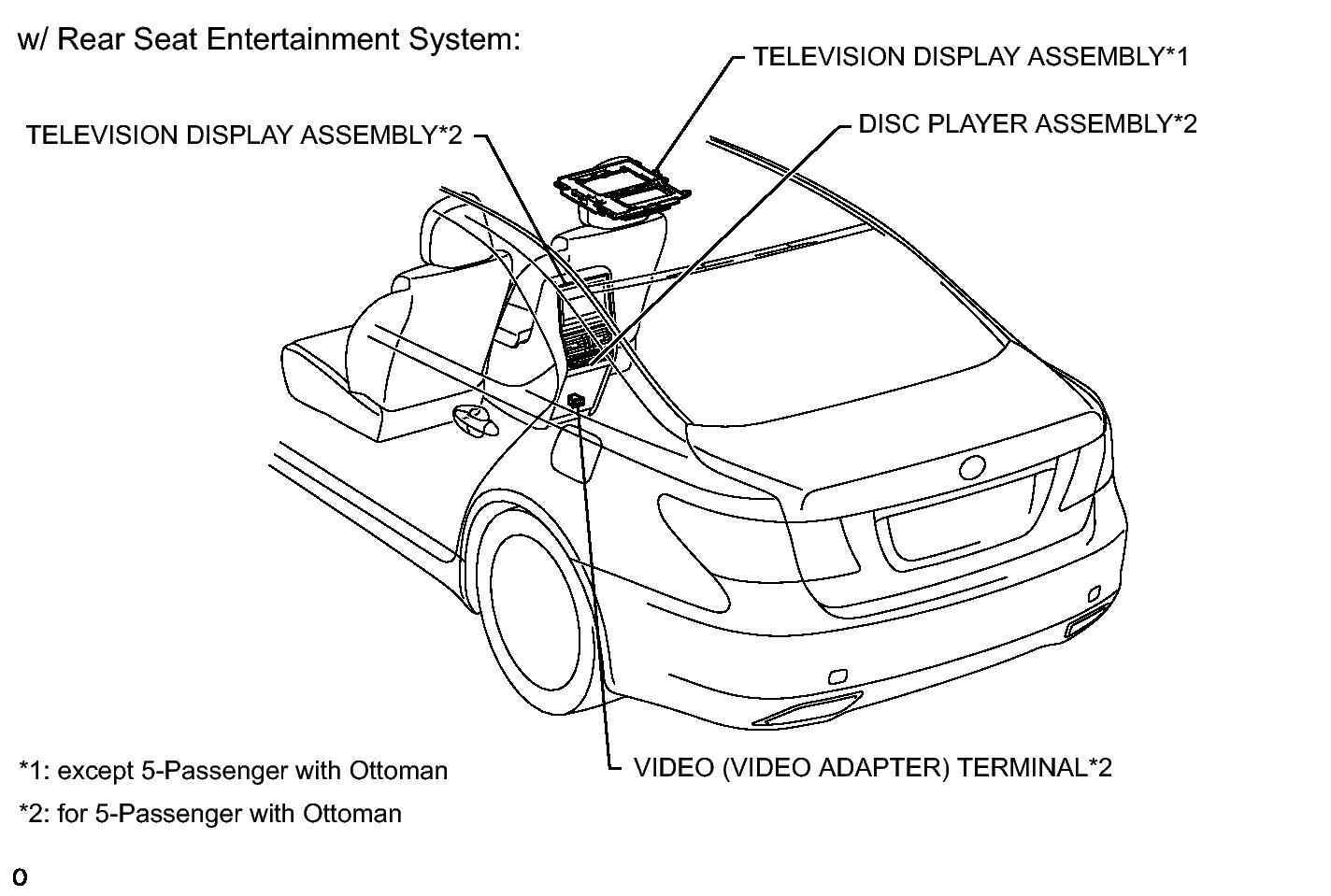

Fig 1: Identifying Navigation System (for DVD) Components Location (4 Of 4)
GTY280694Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
