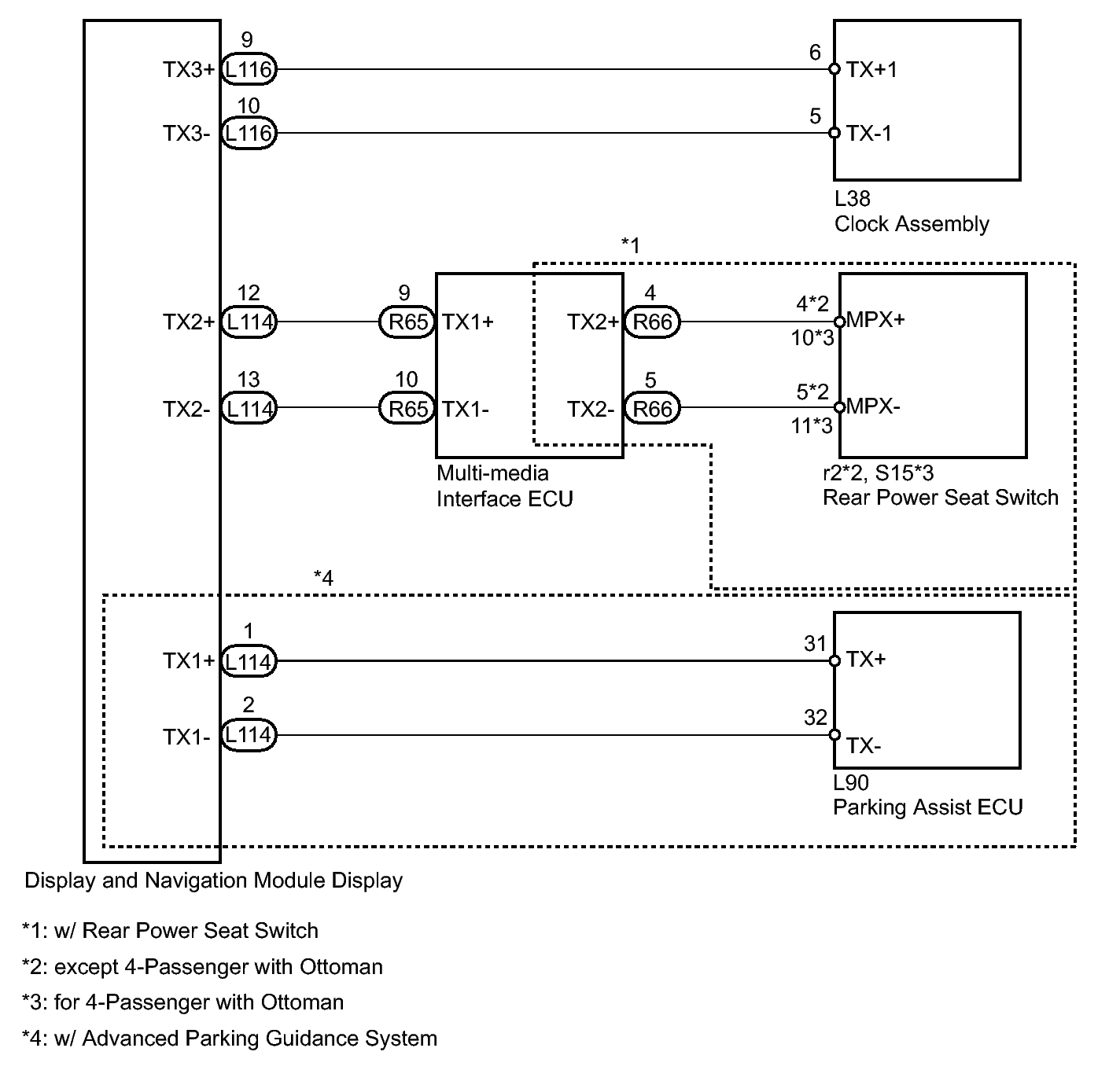

Home >> Lexus >> 2012 >> LS 460 AWD >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Infotainment >> Navigation System (For DVD) (Diagnostic Codes & Symptom Tests) >> NAVIGATION SYSTEM (for DVD) >> Symptom Tests >> AVC-LAN Circuit >> Wiring Diagram
