DTC B156B: Multi-media Interface ECU Disconnected; DTC B156E: No Response from Multi-media Interface ECU: Wiring Diagram

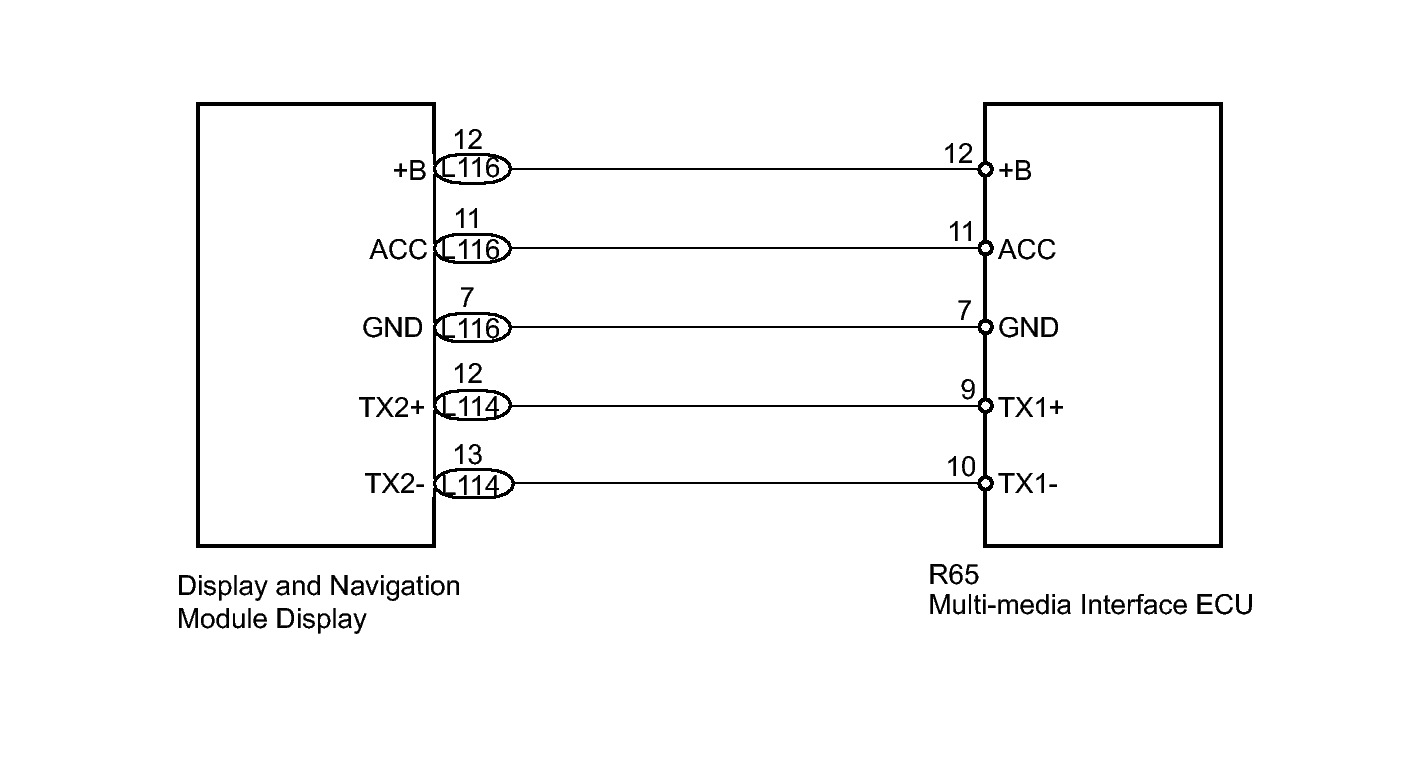

Fig 1: R65 Multi-Media Interface ECU - Wiring Diagram
GTY260832Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
