DISC PLAYER (Except 5-Passenger With Ottoman): Components: Illustration

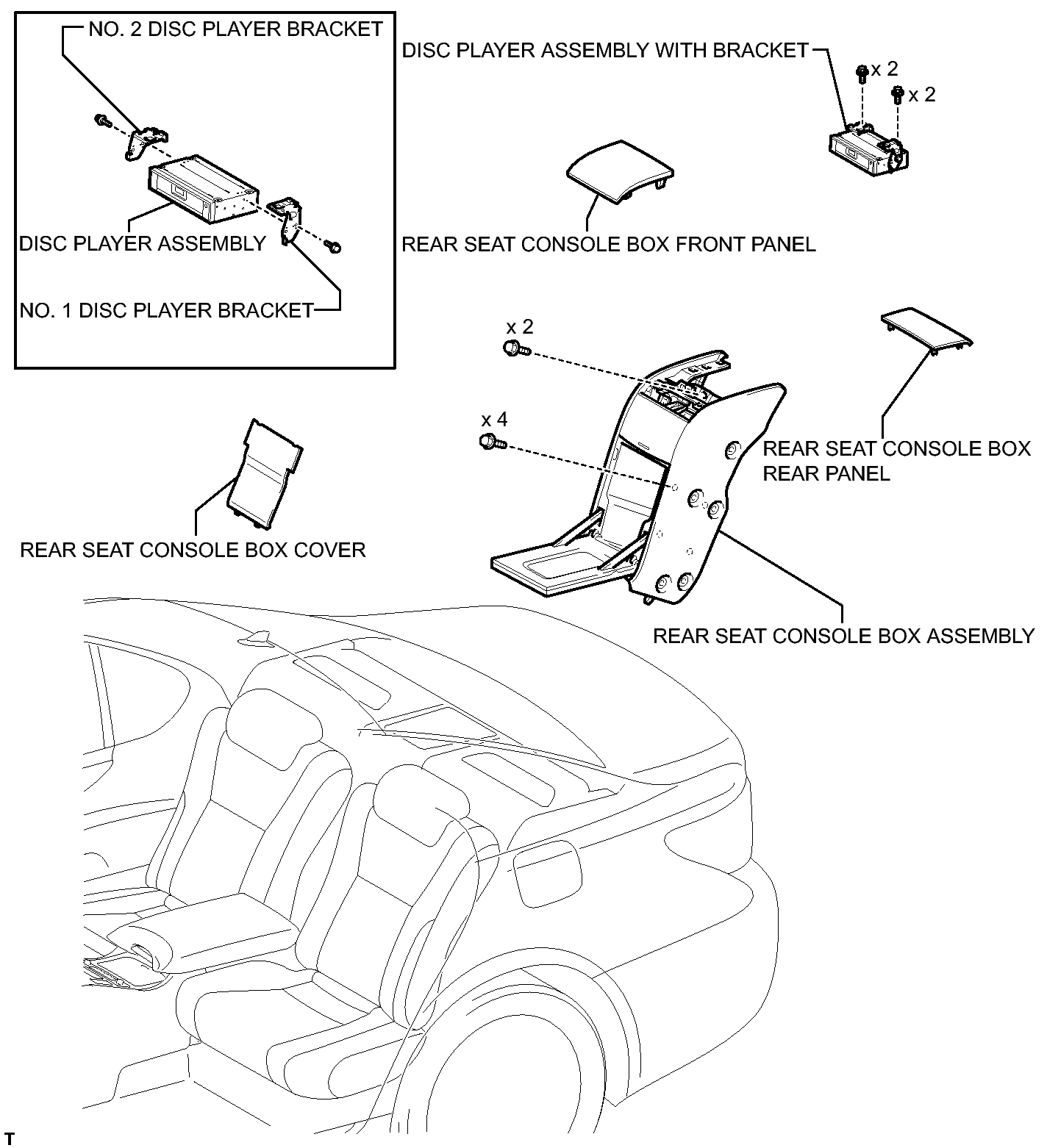

Fig 1: Identifying Disc Player (Ottoman) Replacement Components

GTY267496

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
