Instrument Panel Safety Pad: Installation: Installation

HINT:

A bolt without a torque specification is shown in the standard bolt chart. Refer to SPECIFIED TORQUE FOR STANDARD BOLTS .

INSTALL NO. 3 INSTRUMENT PANEL STAY
1. Attach the 5 claws to install the 5 No. 3 instrument panel stays.

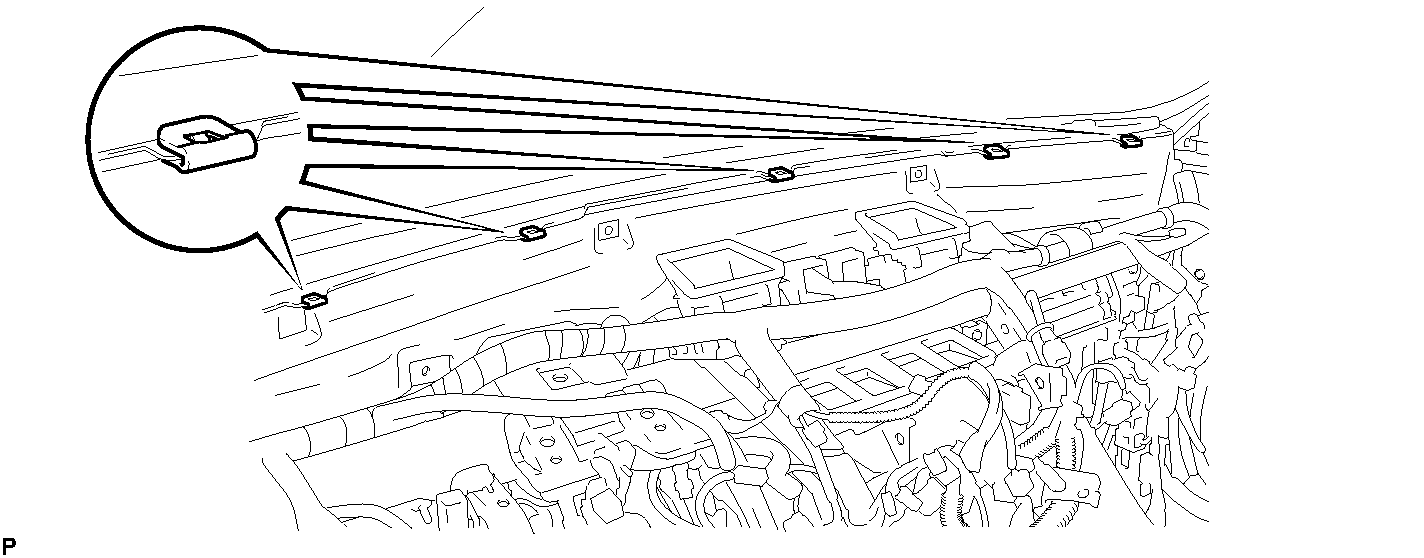

  Fig 1: Identifying No. 3 Instrument Panel Stay
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
1. Attach the 5 claws to install the instrument panel safety pad.
2. Install the 5 bolts and nut.
3. Install the 2 passenger airbag bolts.
  Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)

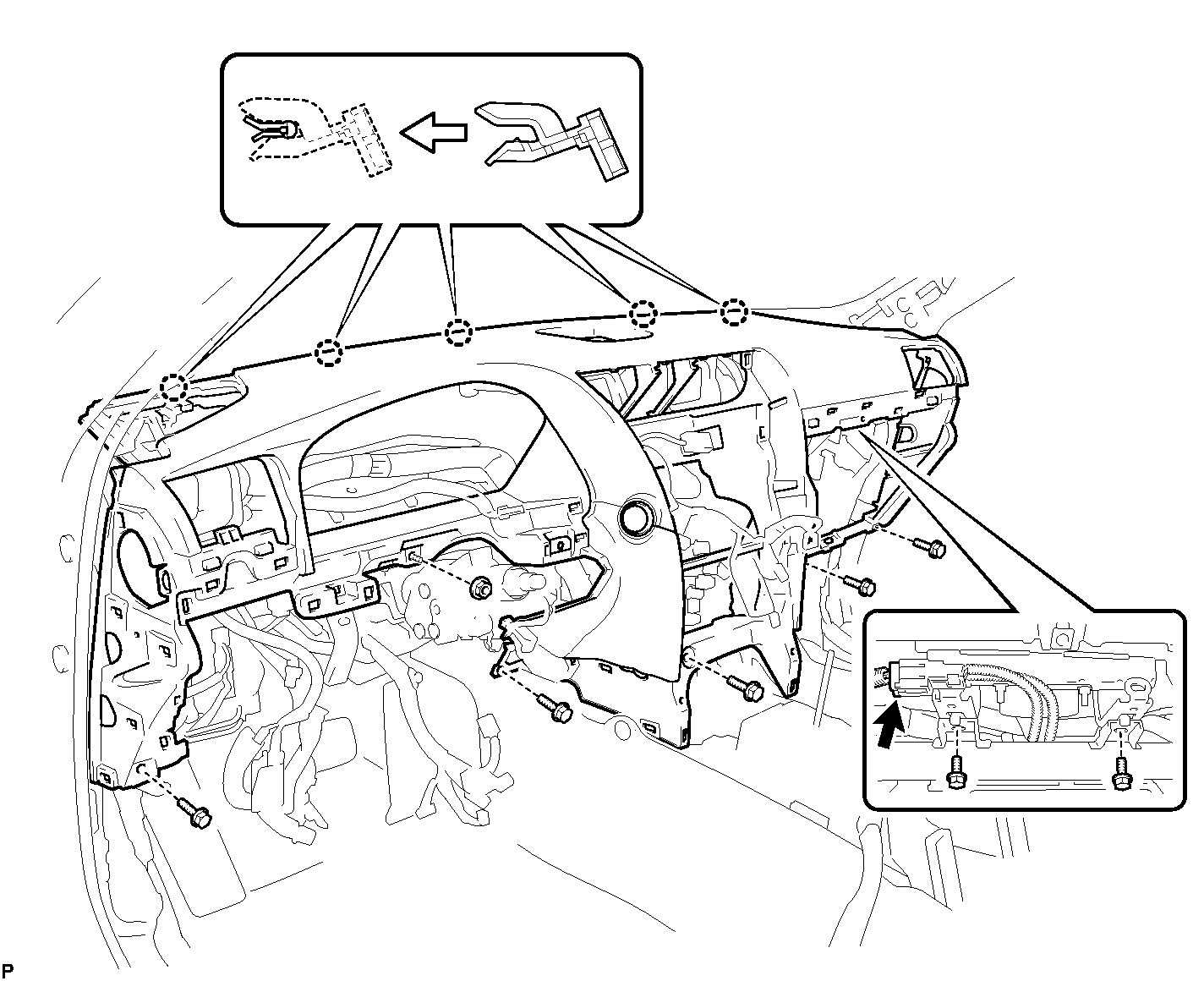

  Fig 2: Identifying Instrument Panel Safety Pad Bolts Location
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Connect each connector and each clamp.

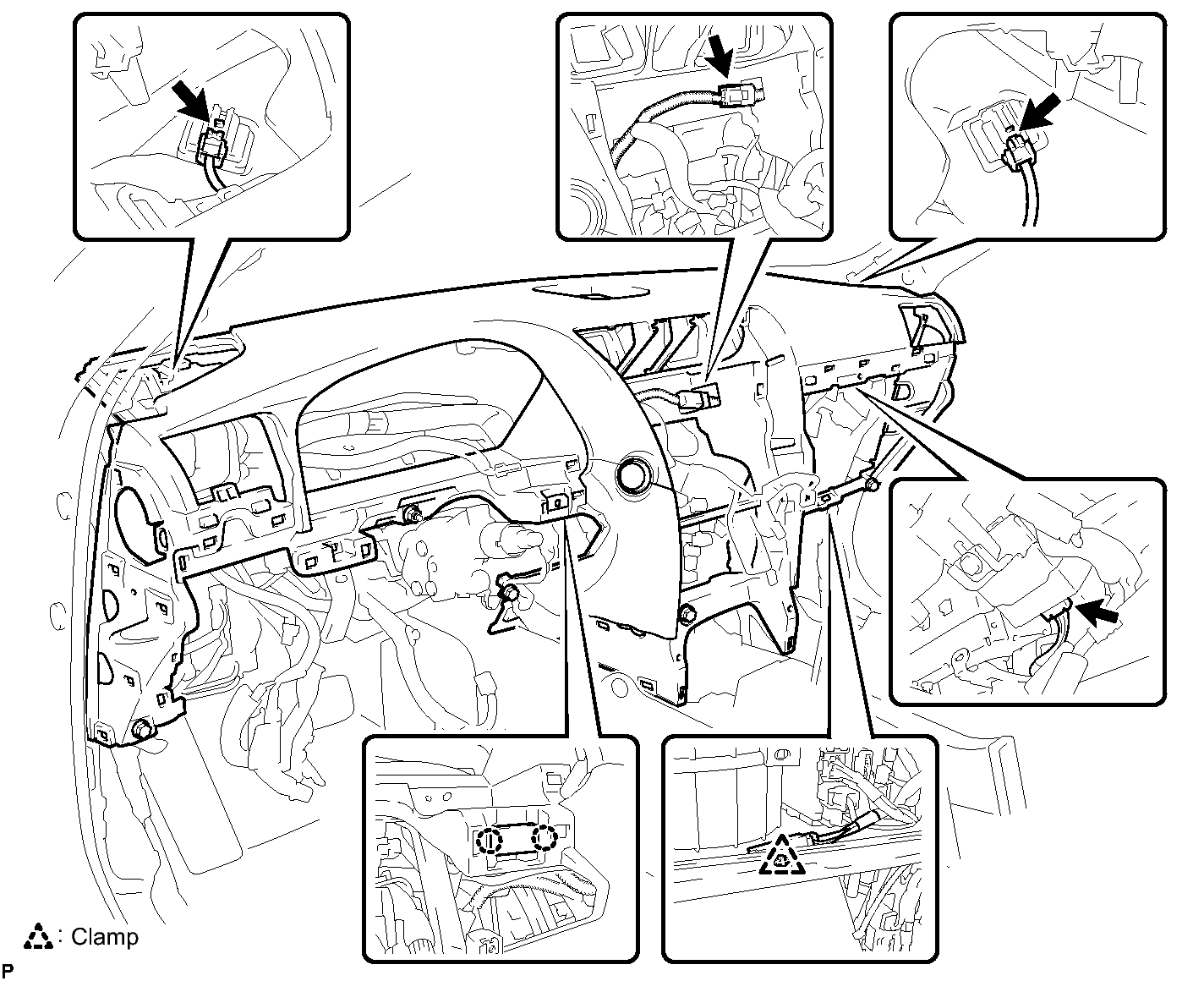

  Fig 3: Identifying Instrument Panel Safety Pad Connectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NAVIGATION MODULE BOARD (w/ Navigation System for DVD) . Refer to INSTALLATION - Step 3
INSTALL DCM (TELEMATICS TRANSCEIVER) . Refer to INSTALLATION - Step 3
INSTALL FRONT NO. 3 SPEAKER ASSEMBLY . Refer to INSTALLATION - Step 4
INSTALL NO. 1 SPEAKER HOLE COVER . Refer to INSTALLATION - Step 5
INSTALL FRONT NO. 2 SPEAKER ASSEMBLY (for LH Side) . Refer to INSTALLATION - Step 1
INSTALL FRONT NO. 2 SPEAKER ASSEMBLY (for RH Side)
HINT:

Use the same procedure described for the LH side.
INSTALL NO. 1 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY . Refer to INSTALLATION - Step 2
INSTALL NO. 2 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY
HINT:

Use the same procedure described for the No. 1 instrument panel speaker panel.
INSTALL NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY

Fig 4: Identifying No. 2 Instrument Panel Register Claws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Connect each connector.
2. Attach the 4 claws to install the No. 2 instrument panel register.
INSTALL NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY

Fig 5: Identifying No. 1 Instrument Panel Register Claws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Connect each connector.
2. Attach the 4 claws to install the No. 1 instrument panel register.
INSTALL FRONT PILLAR GARNISH LH . Refer to INSTALLATION - Step 33
INSTALL FRONT PILLAR GARNISH RH . Refer to INSTALLATION - Step 34
INSTALL INTEGRATION CONTROL AND PANEL ASSEMBLY (w/o Navigation System) . Refer to INSTALLATION - Step 3
INSTALL DISPLAY AND NAVIGATION MODULE DISPLAY (w/ Navigation System) . Refer to INSTALLATION - Step 3
INSTALL RADIO RECEIVER ASSEMBLY WITH BRACKET . Refer to INSTALLATION - Step 4
INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY

Fig 6: Identifying Glove Compartment Door Screws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Connect each connector and clamp.
2. Install the glove compartment door with the 5 screws.
INSTALL NO. 2 INSTRUMENT CLUSTER MOLDING

Fig 7: Identifying No. 2 Instrument Cluster Molding Clips
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Attach the 5 clips to install the No. 2 instrument cluster molding.
INSTALL FRONT PASSENGER SIDE KNEE AIRBAG ASSEMBLY . Refer to INSTALLATION - Step 1
INSTALL INSTRUMENT PANEL LOWER . Refer to INSTALLATION - Step 2
INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

Fig 8: Identifying No. 2 Instrument Panel Under Cover Claws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Connect each connector.
2. Attach the 4 claws to install the No. 2 instrument panel under cover.
INSTALL INSTRUMENT SIDE PANEL RH

Fig 9: Identifying Instrument Side Panel RH Clips
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Attach the 6 clips to install the instrument side panel.
INSTALL DRIVER SIDE KNEE AIRBAG ASSEMBLY . Refer to INSTALLATION - Step 1
INSTALL NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

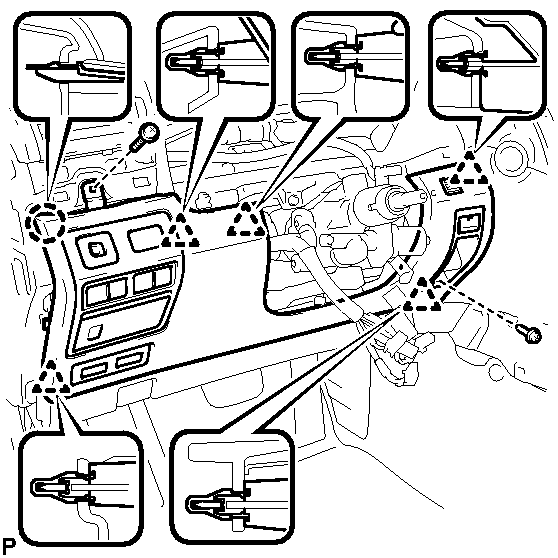

Fig 10: Identifying No. 1 Instrument Panel Safety Pad Clips
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Connect each connector.
2. Attach the 5 clips and claw to install the No. 1 instrument panel safety pad.
3. Install the 2 screws.
4. Attach the claw to install the hole cover.

  Fig 11: Identifying No. 1 Instrument Panel Safety Pad Claw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

Fig 12: Identifying No. 1 Instrument Panel Under Cover Screws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Connect each connector and clamp.
2. Attach the 2 claws to install the No. 1 instrument panel under cover.
3. Install the 2 screws.
INSTALL NO. 1 INSTRUMENT CLUSTER MOLDING

Fig 13: Identifying Clips And Molding
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Attach the 2 clips to install the No. 1 instrument cluster molding.
INSTALL INSTRUMENT SIDE PANEL LH

Fig 14: Identifying Instrument Side Panel LH Clips
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Attach the 6 clips to install the instrument side panel.
INSTALL COMBINATION METER ASSEMBLY

Fig 15: Identifying Combination Meter Screws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Connect each connector.
2. Install the combination meter with the 4 screws.
INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

Fig 16: Instrument Cluster Finish Panel Clip Locations
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Connect each connector.
2. Attach the 2 clips to install the finish panel.
3. Install the 2 clips.
INSTALL HEADLIGHT DIMMER SWITCH ASSEMBLY
1. Install the headlight dimmer switch assembly. Refer to INSTALLATION .
INSTALL CONSOLE BOX ASSEMBLY
1. w/o Rear Seat Entertainment System:
  Install the console box assembly. Refer to INSTALLATION .
2. w/ Rear Seat Entertainment System:
  Install the console box assembly. Refer to INSTALLATION .
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE:
- Reset the AUTO TILT AWAY function setting to the previous condition by changing the customize parameter. Refer to CUSTOMIZE PARAMETERS .
- When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .
INSTALL COWL TOP VENTILATOR LOUVER RH . Refer to INSTALLATION - Step 11
CHECK SRS WARNING LIGHT
1. Check the SRS warning light. Refer to DIAGNOSIS SYSTEM .
