ROOM LIGHT ASSEMBLY (for Luggage Compartment): Components: Illustration

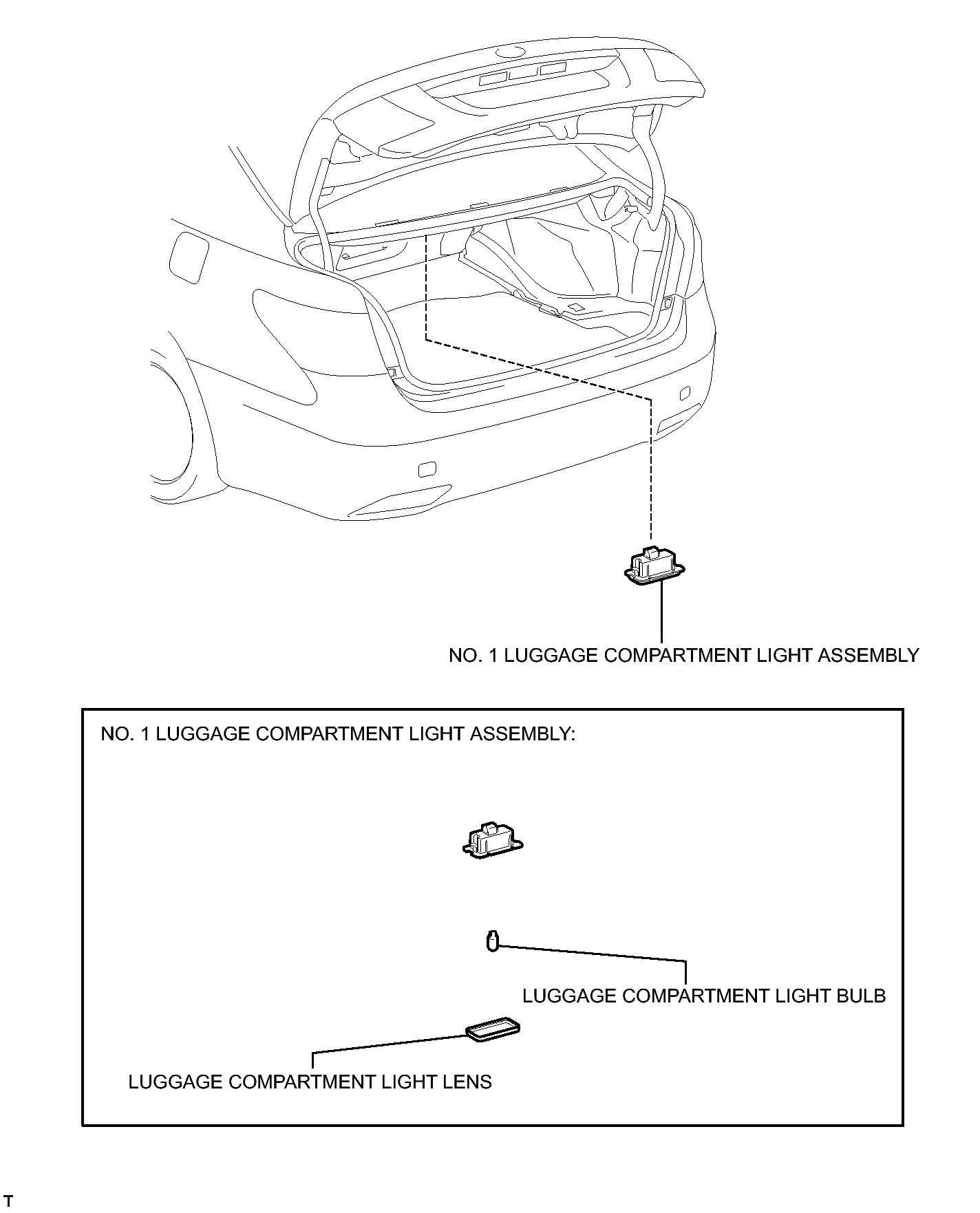

Fig 1: Identifying Room Light Assembly (For Luggage Compartment) Replacement Components (1 Of 2)
GTY284617Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Room Light Assembly (For Luggage Compartment) Replacement Components (2 Of 2)
GTY289620Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
