Turn Signal Light does not Illuminate: Wiring Diagram

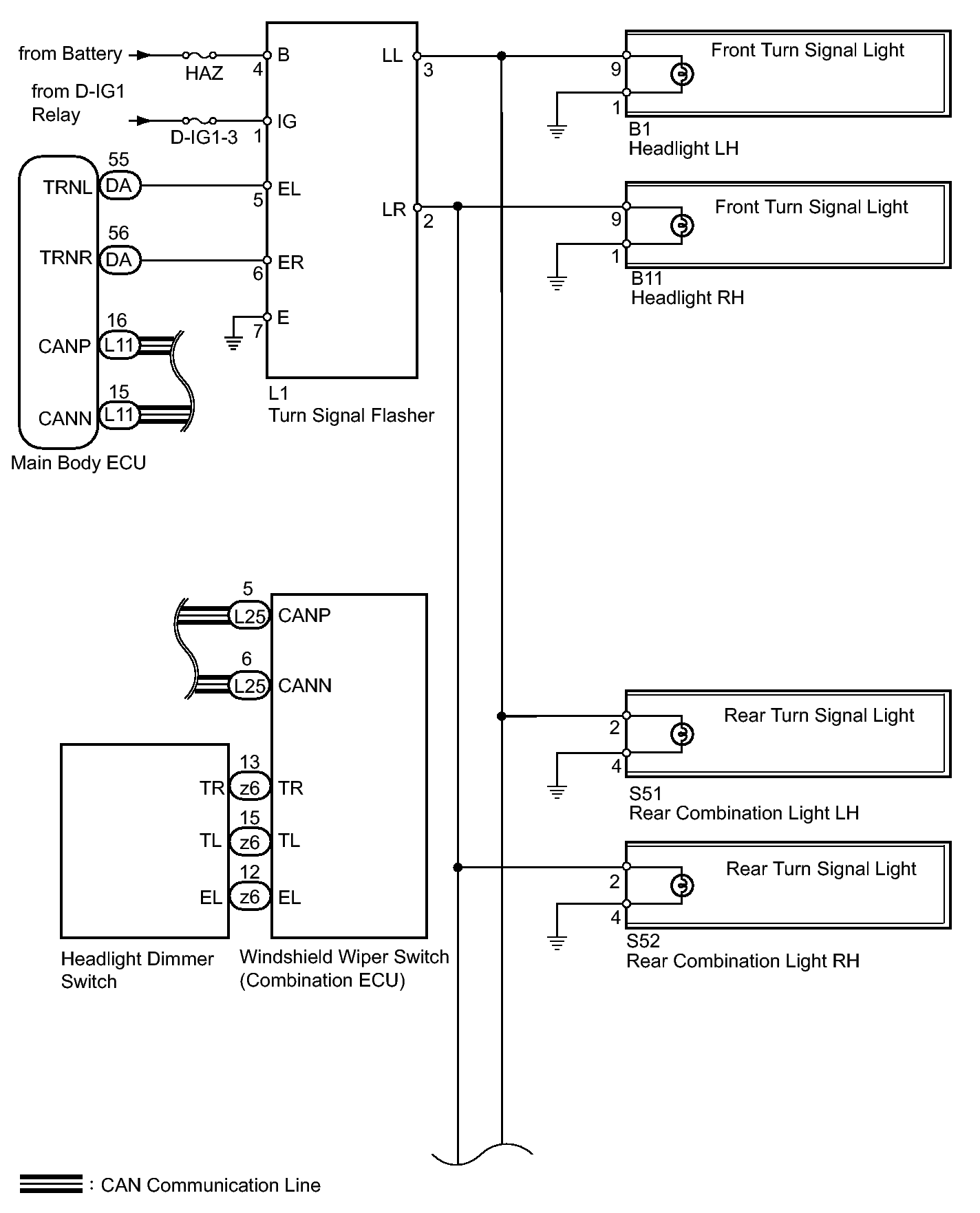

Fig 1: Front Multiplex Network Door ECU RH - Wiring Diagram (1 Of 2)
GTY276015Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

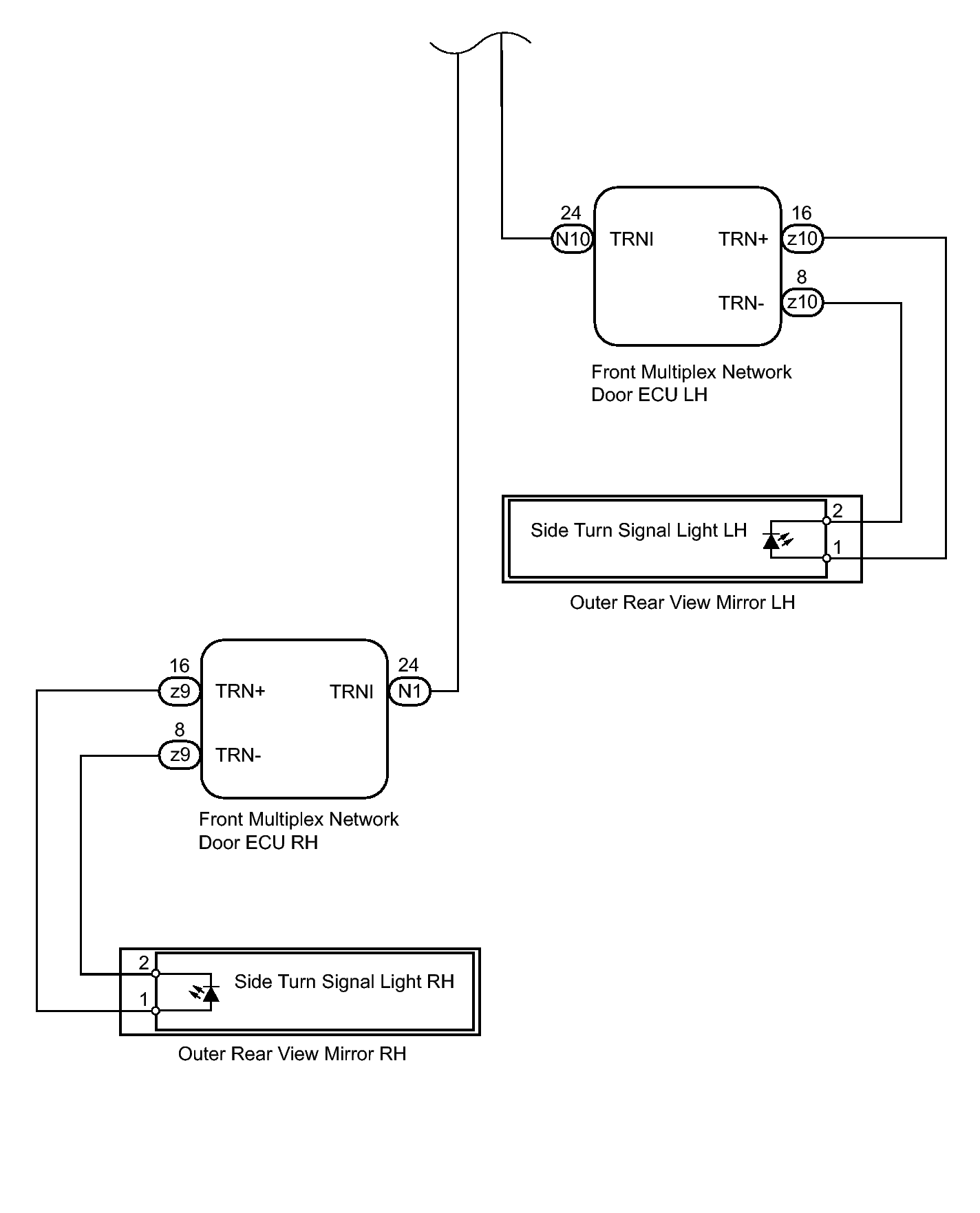

Fig 2: Turn Signal Lighting - Wiring Diagram (2 Of 2)
GTY266095Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
