Stop Light does not Illuminate: Wiring Diagram

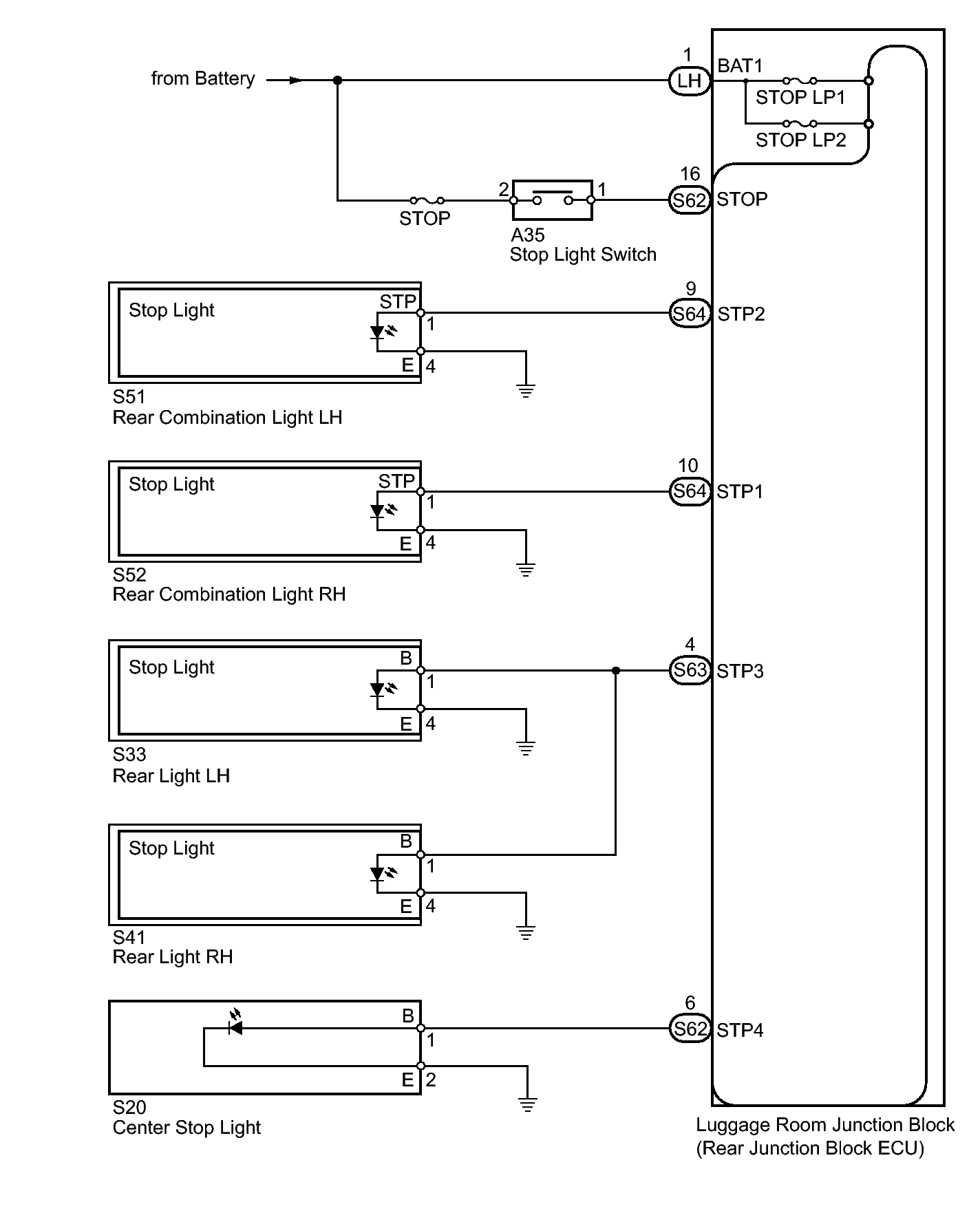

Fig 1: Luggage Room Junction Block - Wiring Diagram

GTY269506

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
