Rear Vanity Light does not Illuminate: Wiring Diagram

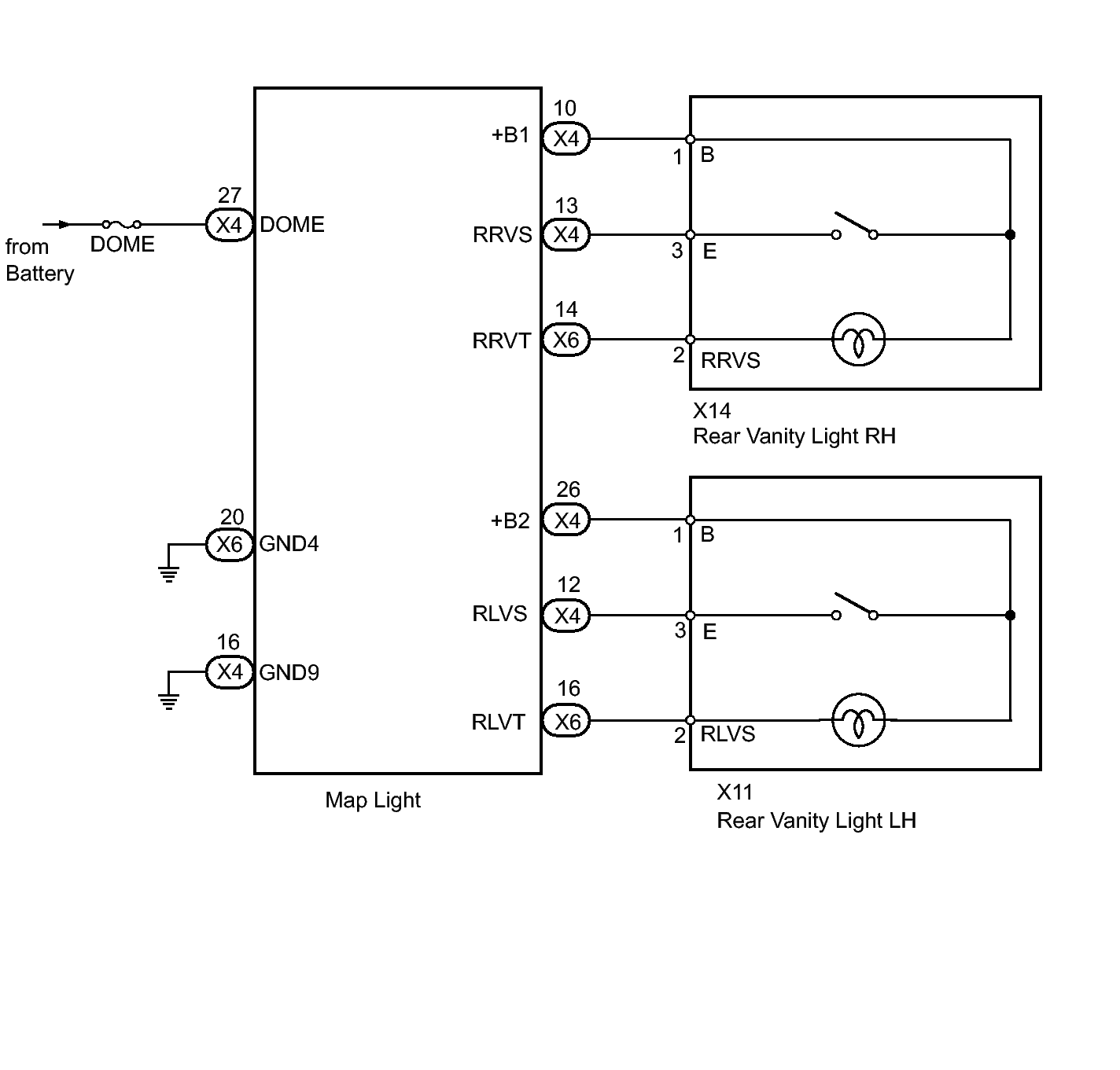

Fig 1: Rear Vanity Light - Wiring Diagram

GTY289669

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
