Interior Foot Light does not Illuminate: Wiring Diagram

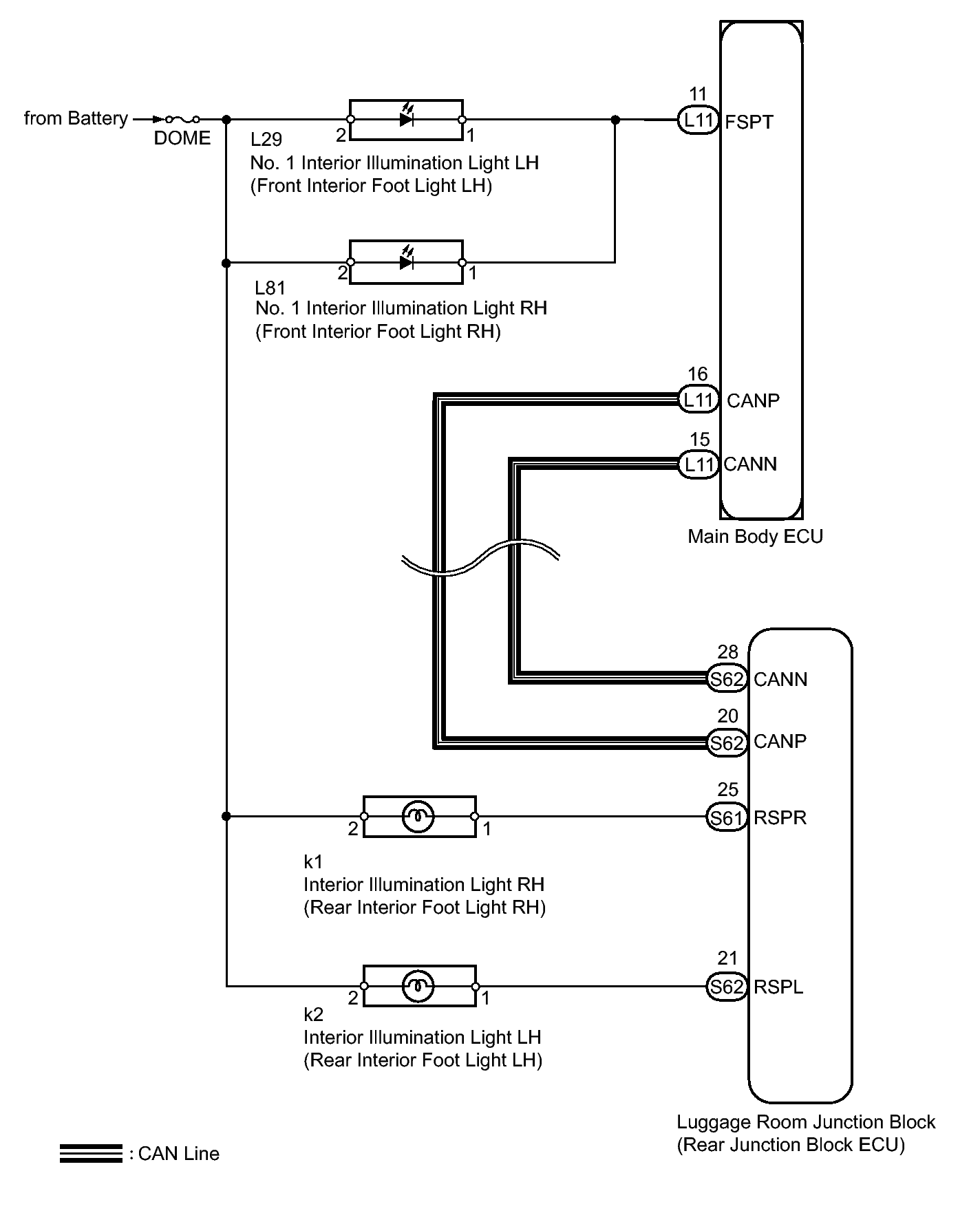

Fig 1: Main Body ECU - Wiring Diagram

GTY281101
