Front Fog Light does not Illuminate: Wiring Diagram

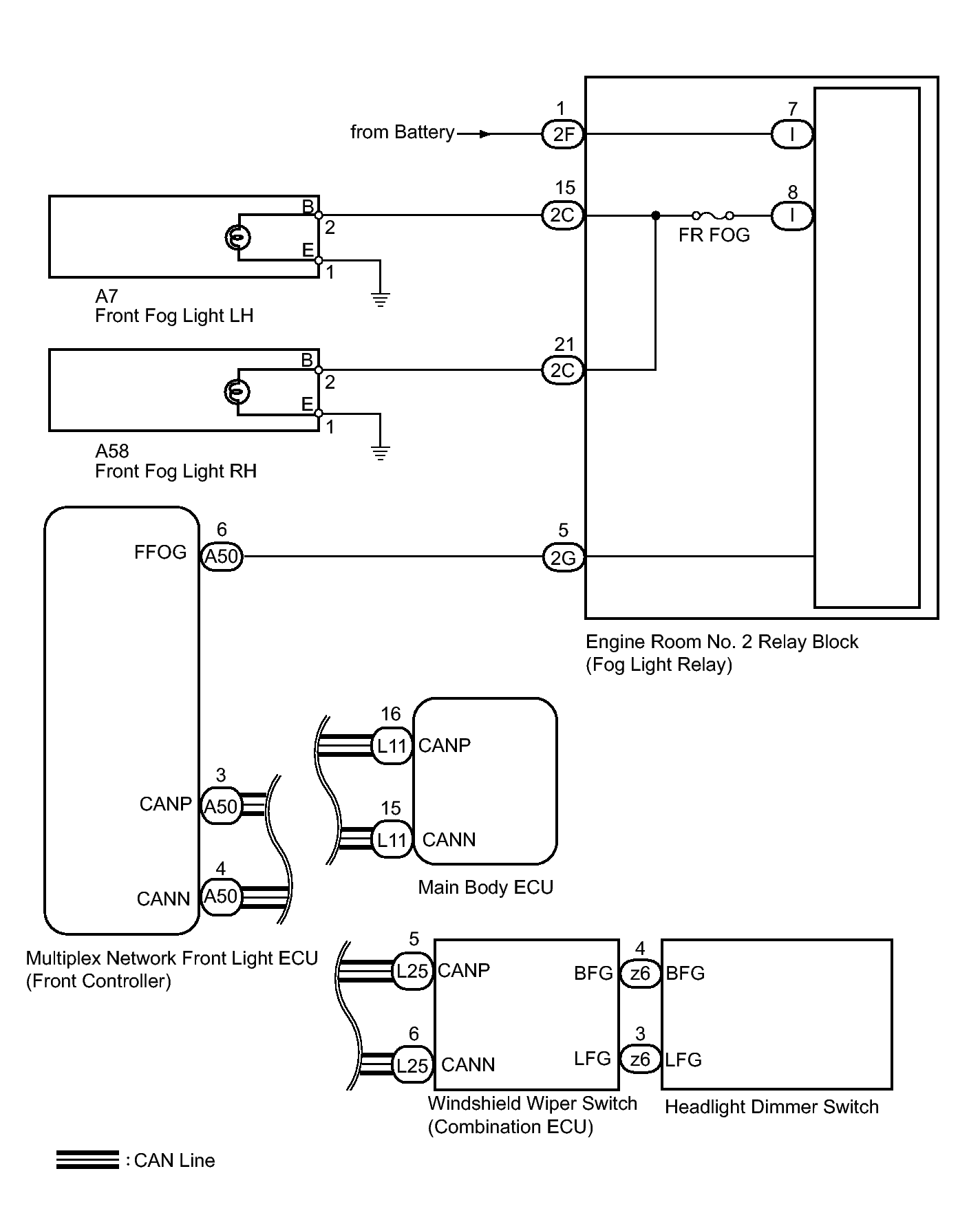

Fig 1: Fog Light Relay - Wiring Diagram

GTY287423

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
