DTC B2412: Headlight Swivel Motor LH Malfunction; DTC B2413: Headlight Swivel Motor RH Malfunction: Wiring Diagram

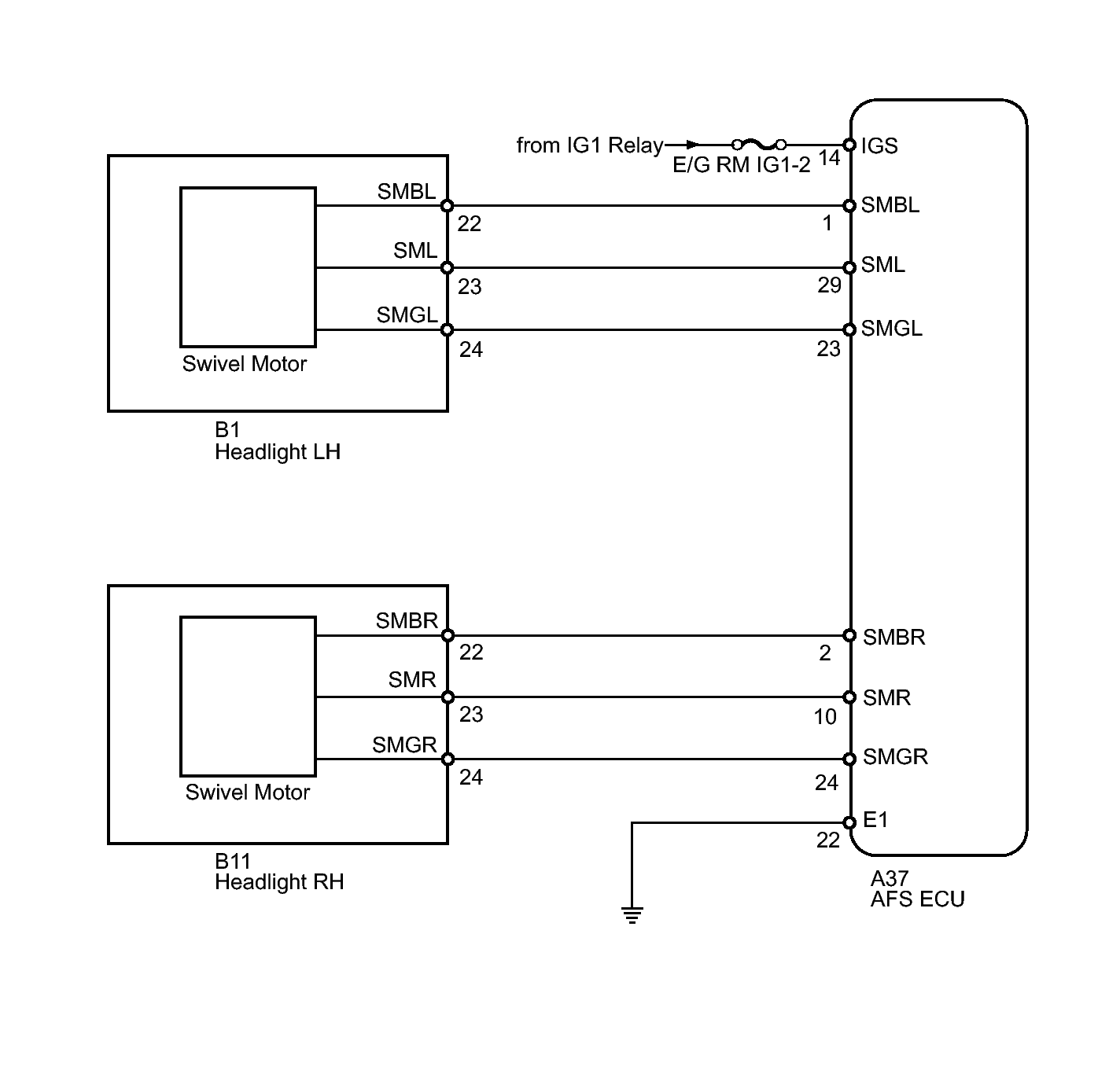

Fig 1: Headlight Swivel Motor - Wiring Diagram
GTY255030Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
