DTC B2410: Headlight Swivel Motor LH Communication Malfunction; DTC B2411: Headlight Swivel Motor RH Communication Malfunction: Wiring Diagram

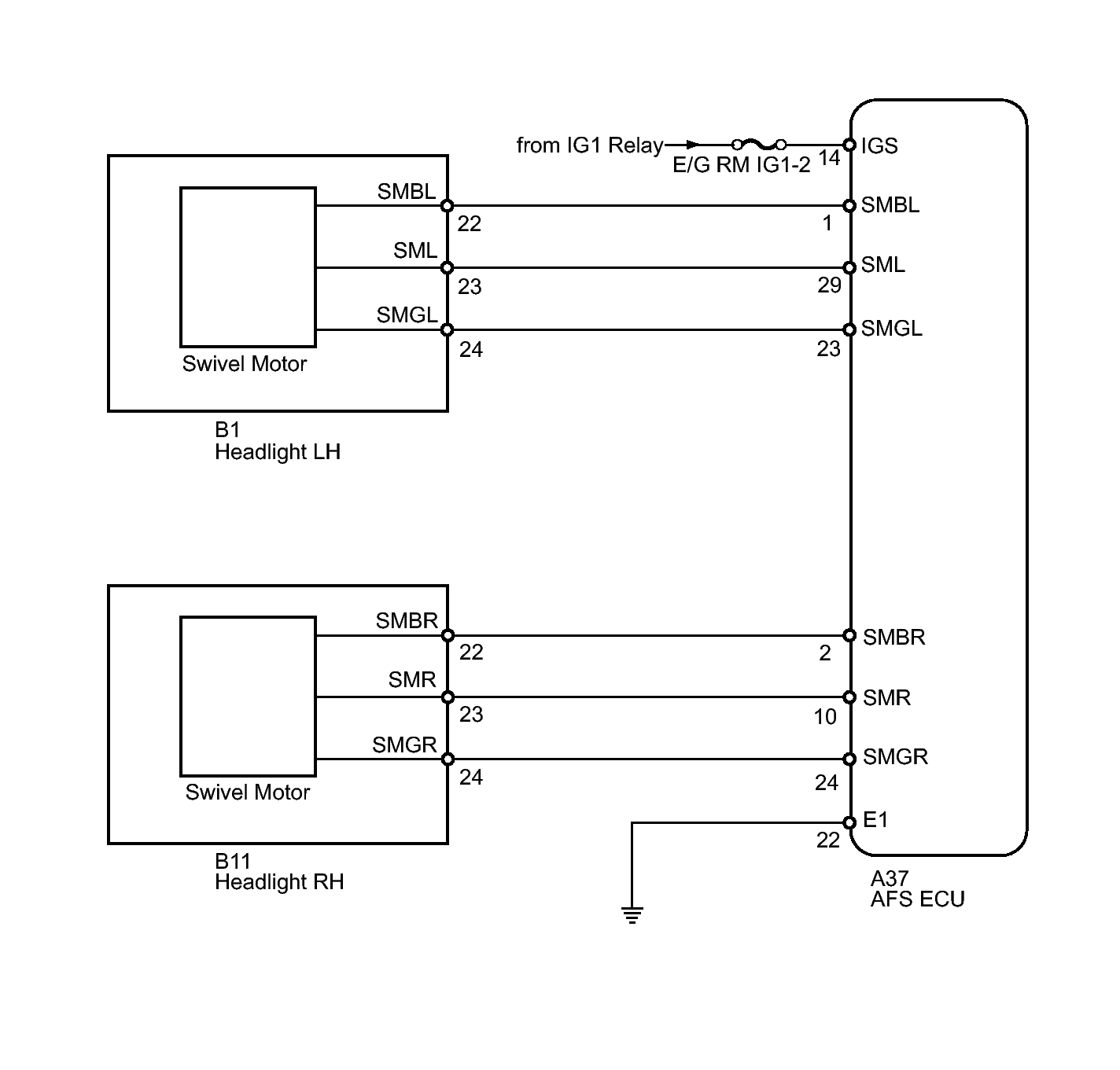

Fig 1: Headlight Swivel Motor - Wiring Diagram
GTY255031Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
