Sound Signal Circuit between Headphone Terminal and Television Display: Wiring Diagram

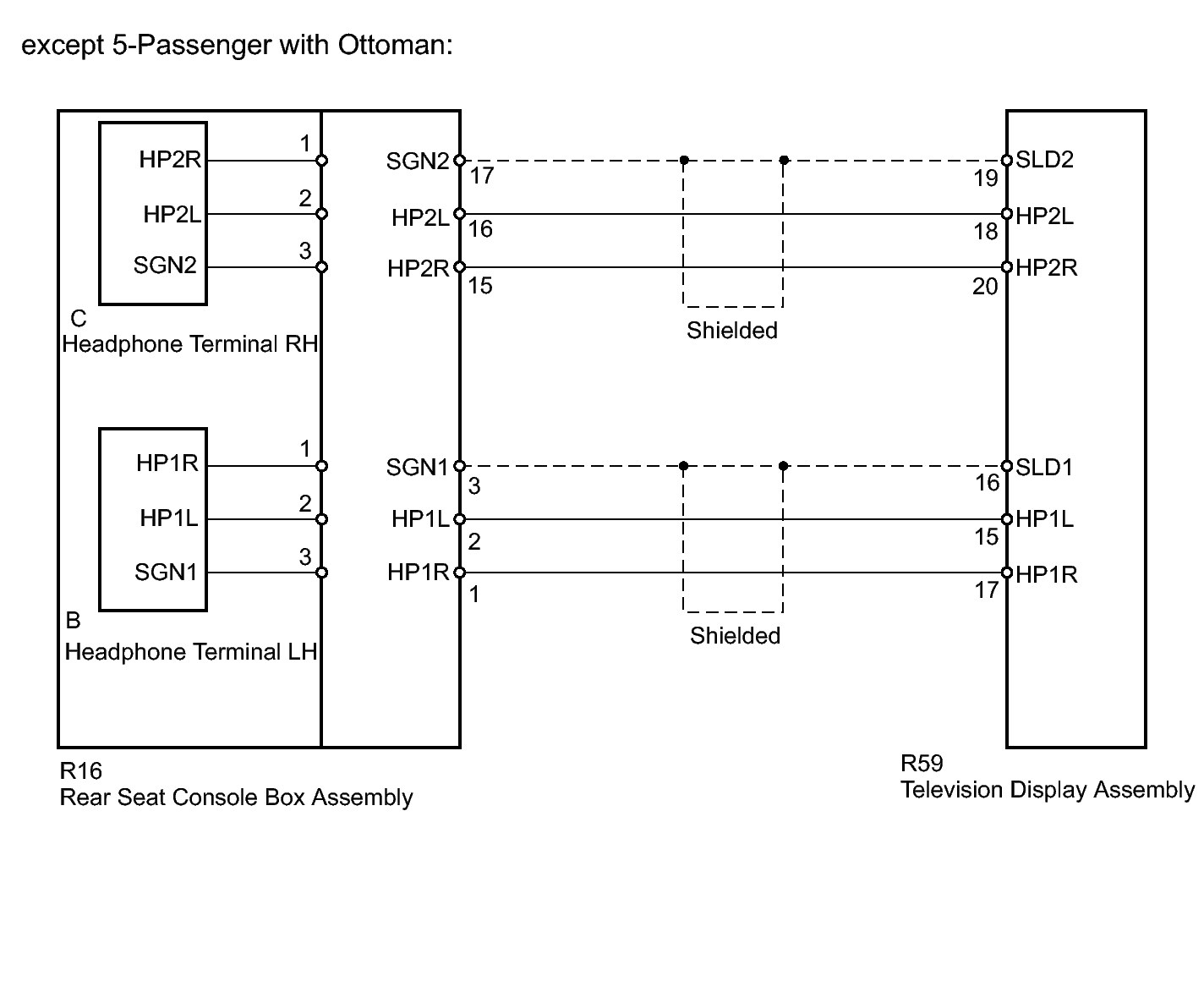

Fig 1: Identifying Headphone Terminal And Television Display Wiring Diagram (Except 5-Passenger With Ottoman)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

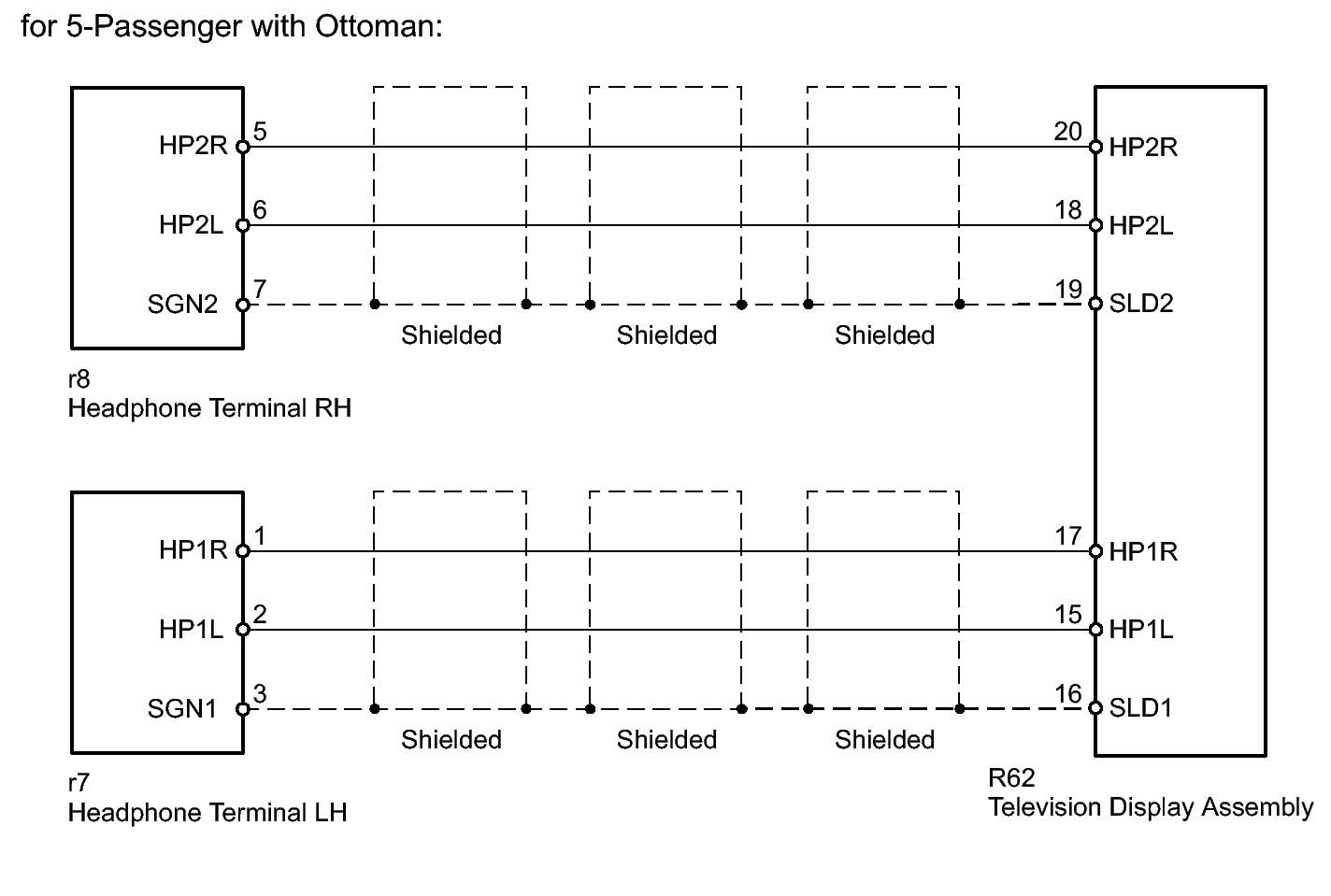

Fig 2: Identifying Headphone Terminal And Television Display Wiring Diagram (For 5-Passenger With Ottoman)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
