DTC B1595: No Response from Rear Seat Entertainment System; DTC B15D5: Rear Seat Entertainment System Disconnected
>>
Wiring Diagram
DTC B1595: No Response from Rear Seat Entertainment System; DTC B15D5: Rear Seat Entertainment System Disconnected: Wiring Diagram

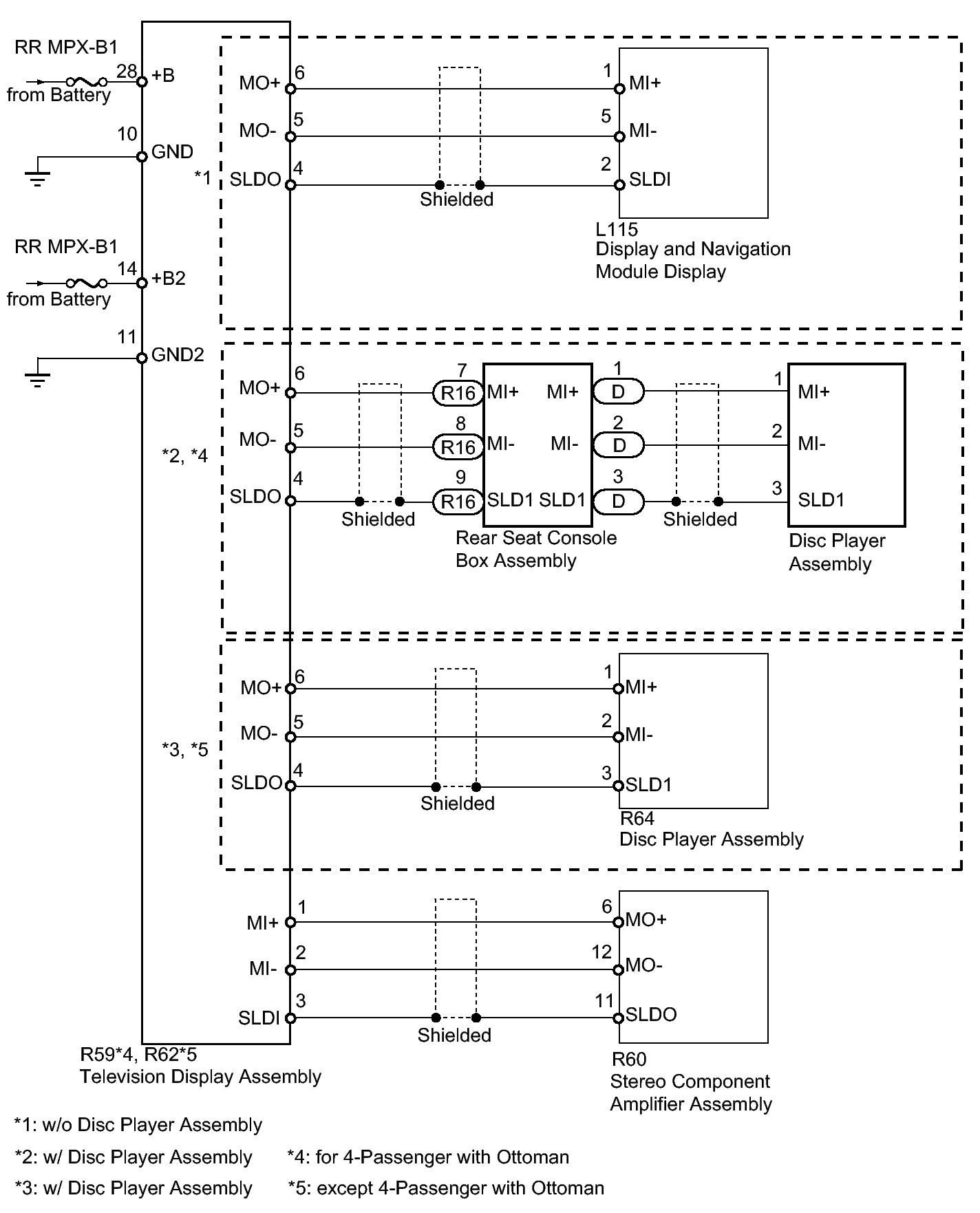

Fig 1: Rear Seat Entertainment System - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
