DTC U0100: Lost Communication with ECM / PCM "A": Wiring Diagram

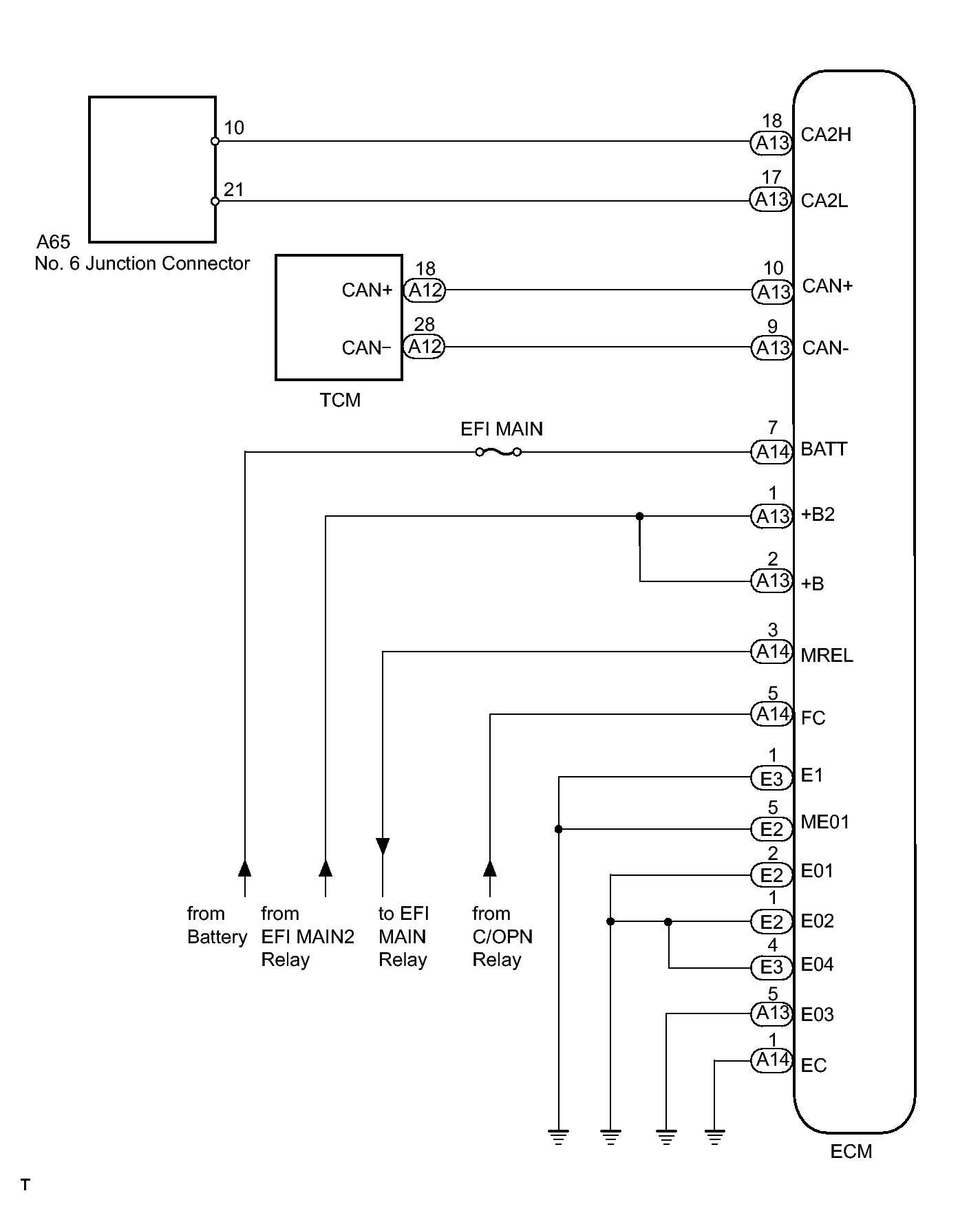

Fig 1: CAN Communication With ECM / PCM "A" - Wiring Diagram

GTY261084

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
