DTC U1113: Lost Communication with Steering Pad ECU: Wiring Diagram

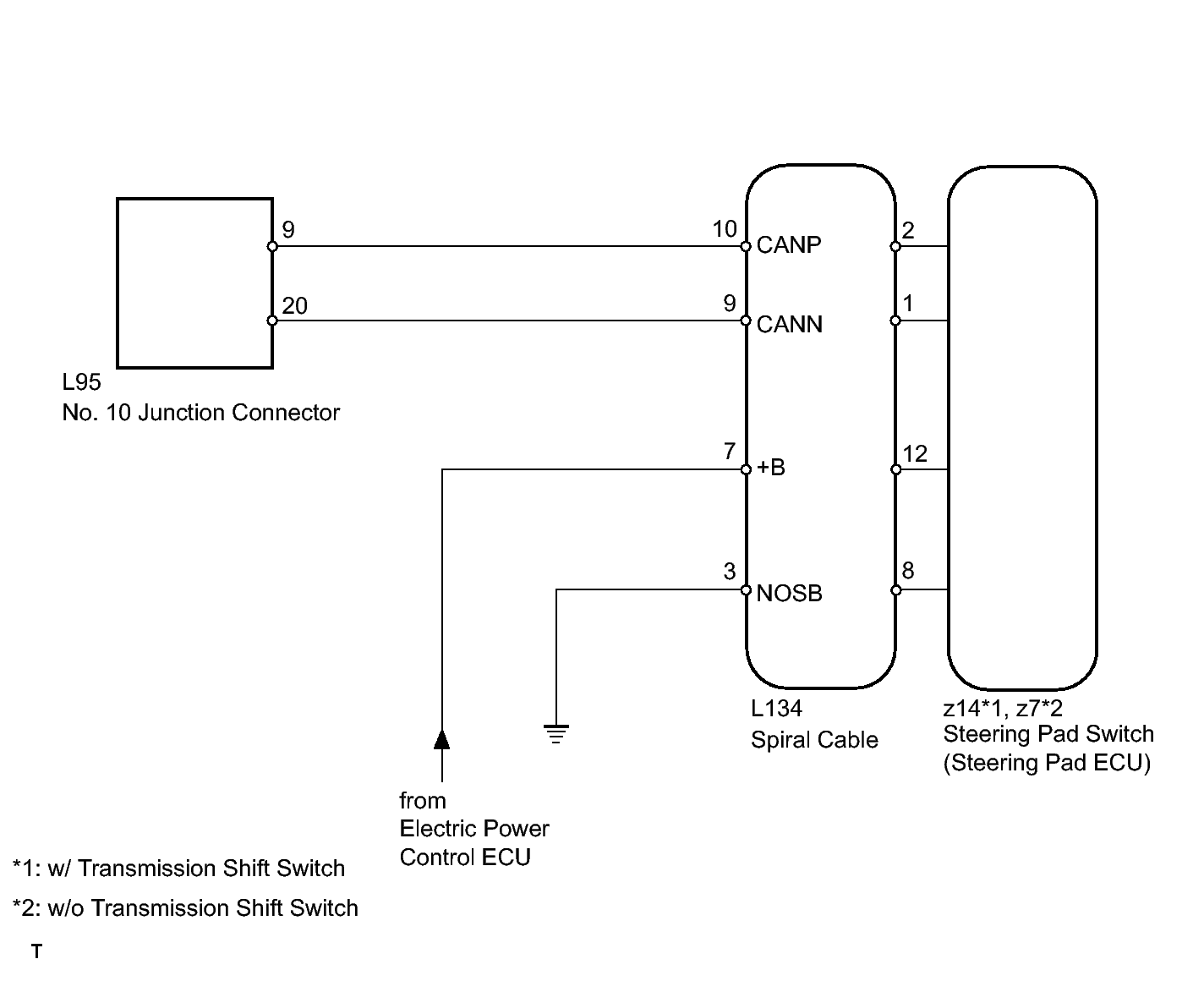

Fig 1: Identifying Lost Communication With Steering Pad ECU Wiring Diagram

GTY279875

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
