Engine Control System (Diagnostic Codes (P060D-P1605))
>>
SFI System
>>
DTC P1360: "A" Camshaft Position Actuator Circuit Open, Low, High Bank1; DTC P1361: "A" Camshaft Position Actuator Circuit Open, Low, High Bank2
>>
Wiring Diagram
DTC P1360: "A" Camshaft Position Actuator Circuit Open, Low, High Bank1; DTC P1361: "A" Camshaft Position Actuator Circuit Open, Low, High Bank2: Wiring Diagram

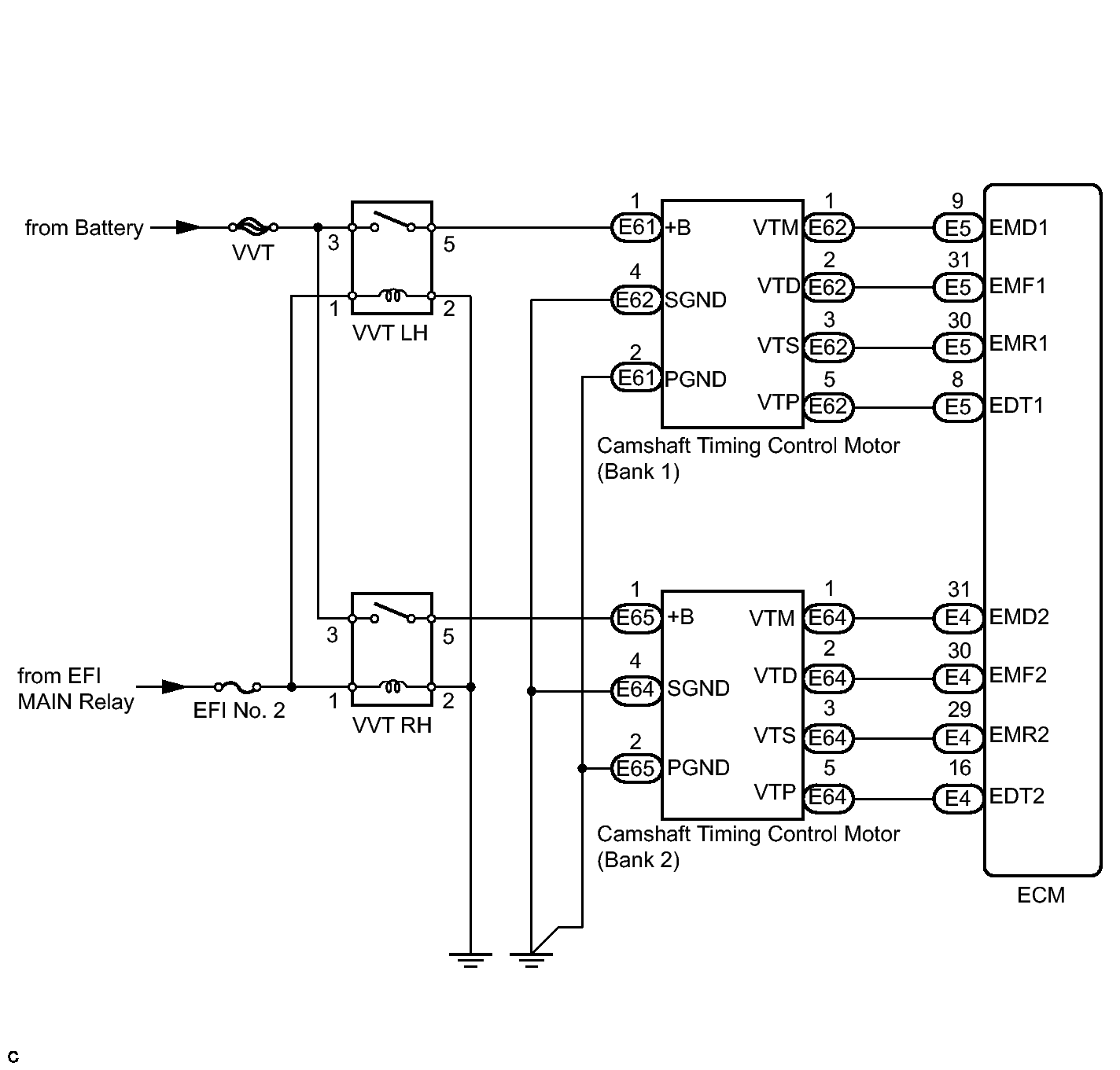

Fig 1: Identifying Camshaft Position Actuator Circuit Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
