How To Read This Service Information

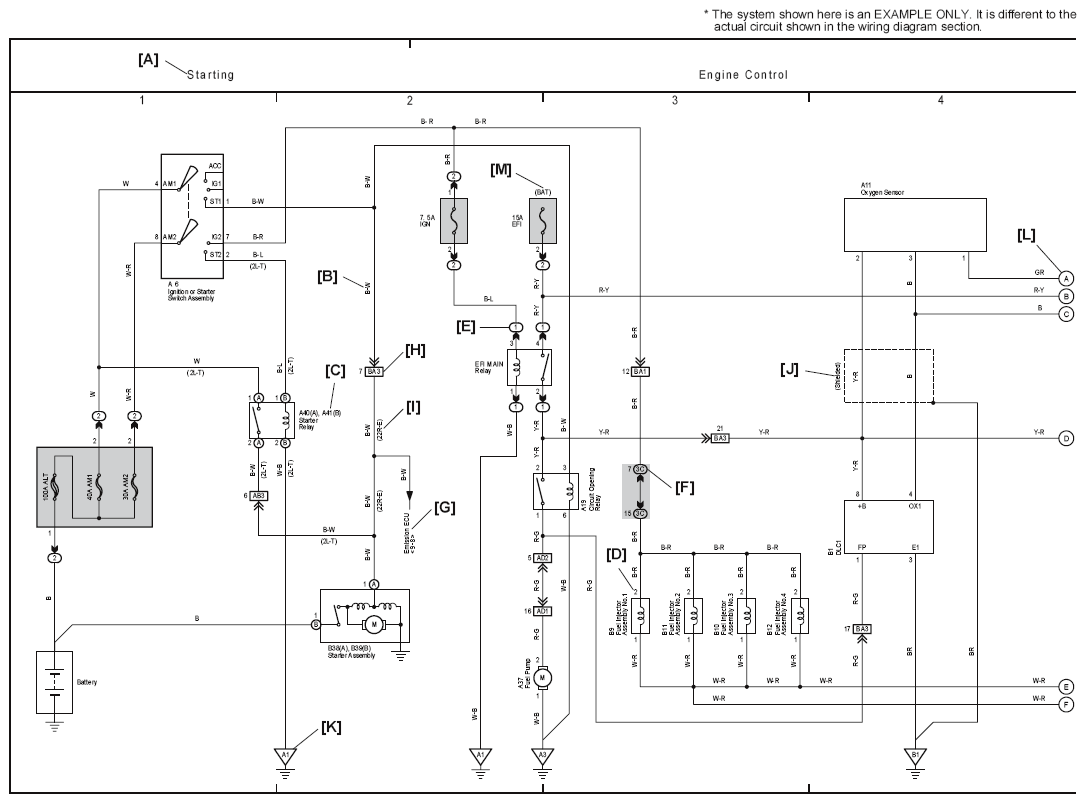

Fig 1: Electrical Wiring Diagram Example
G08940370Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

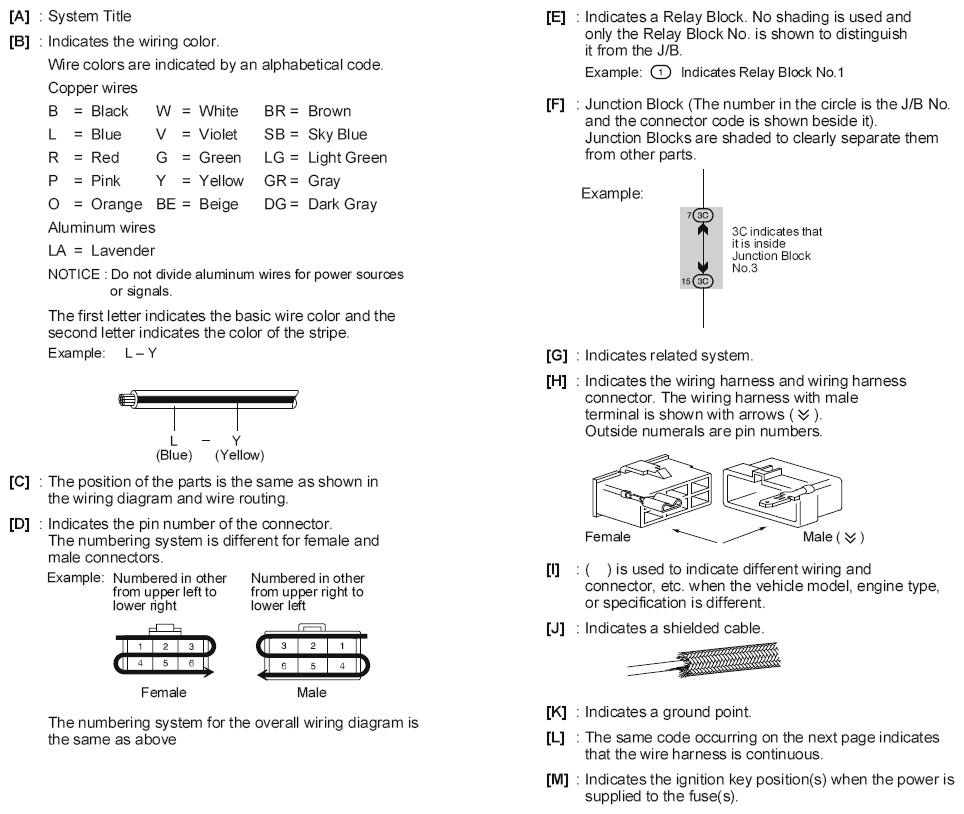

Fig 2: Electrical Wiring Diagram Legend Example
G08940371Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
