Combination Meter

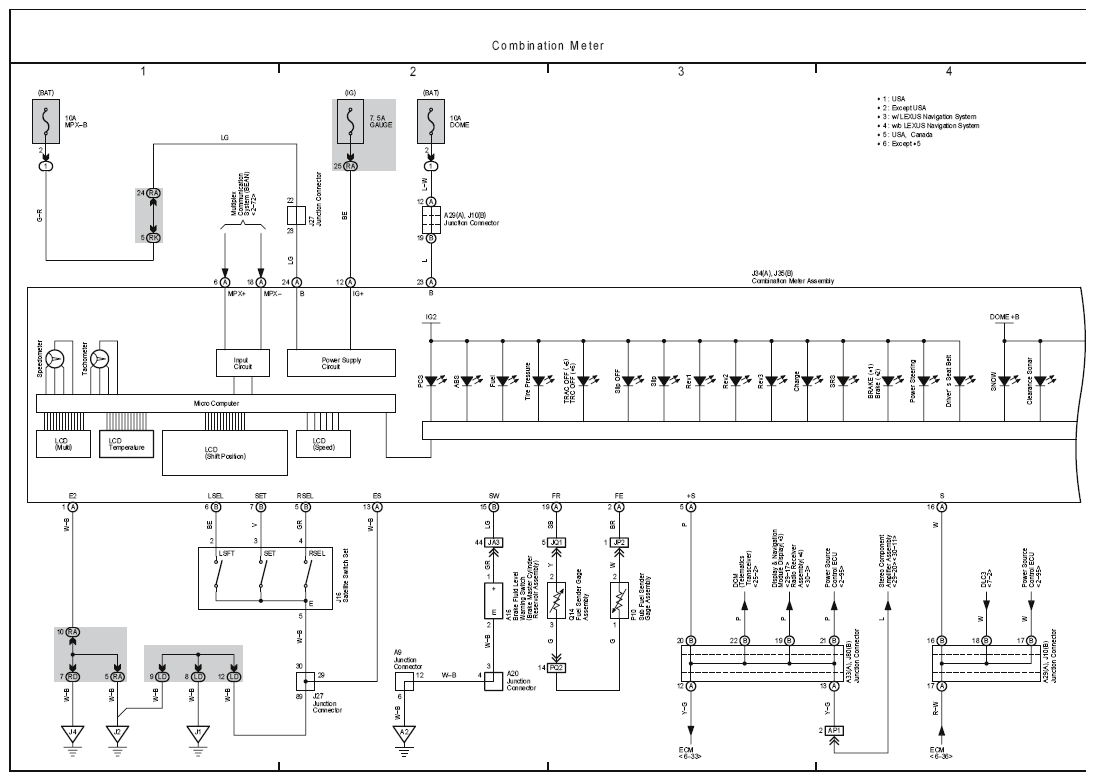

Fig 1: Combination Meter Electrical Wiring Diagram (1 Of 2)
G08940440Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

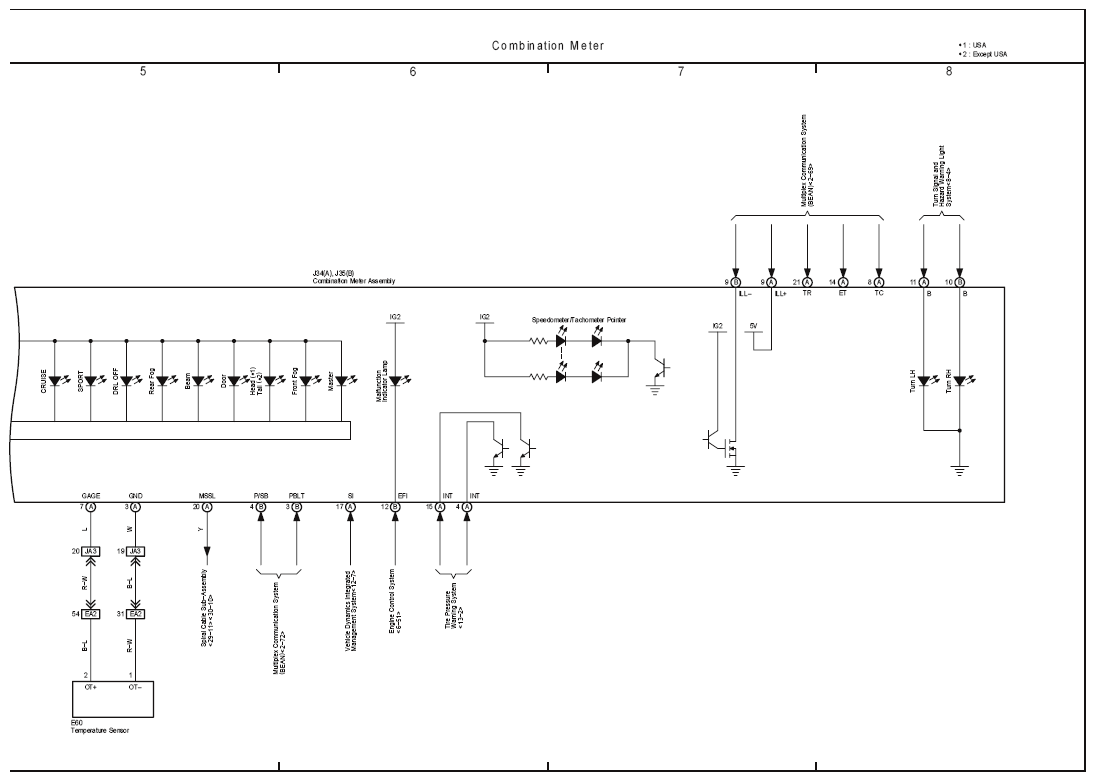

Fig 2: Combination Meter Electrical Wiring Diagram (2 Of 2)
G08940441Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
