Overall Electrical Wiring Diagram: Clock

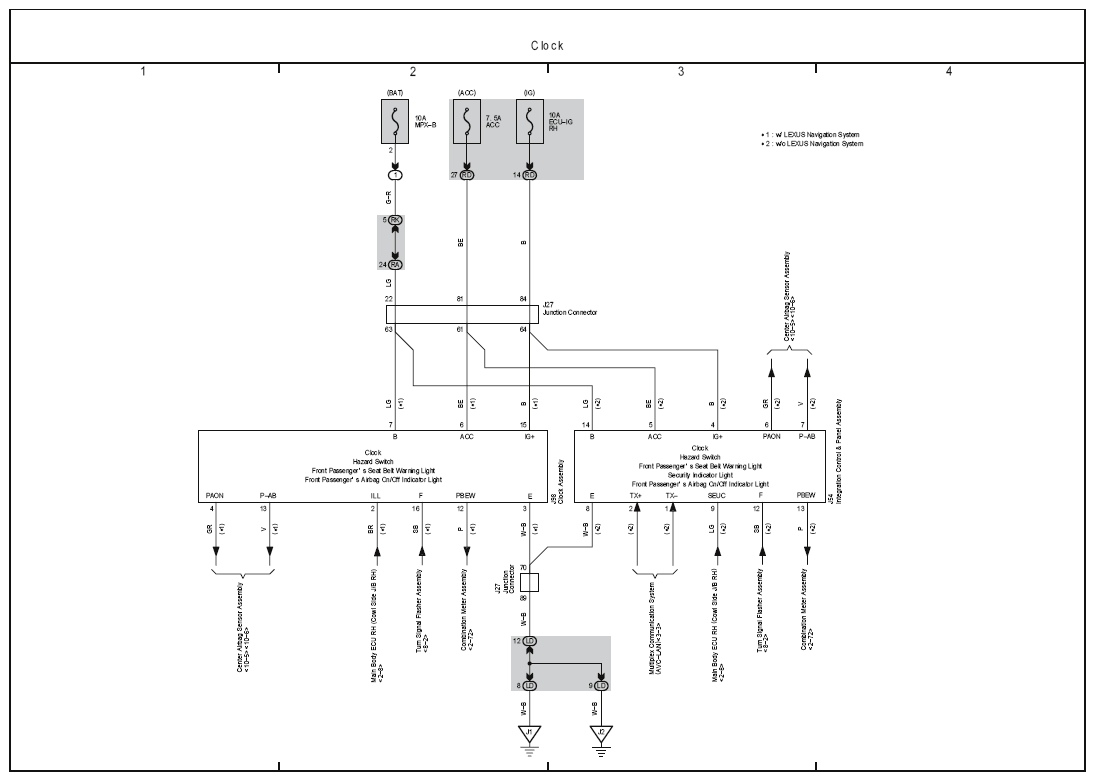

Fig 1: Clock Electrical Wiring Diagram

G08940437

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
