Disconnection Of Male And Female Connectors

To pull apart the connectors, pull on the connector itself, not the wire harness.

HINT: Check to see what kind of connector you are disconnecting before pulling apart.

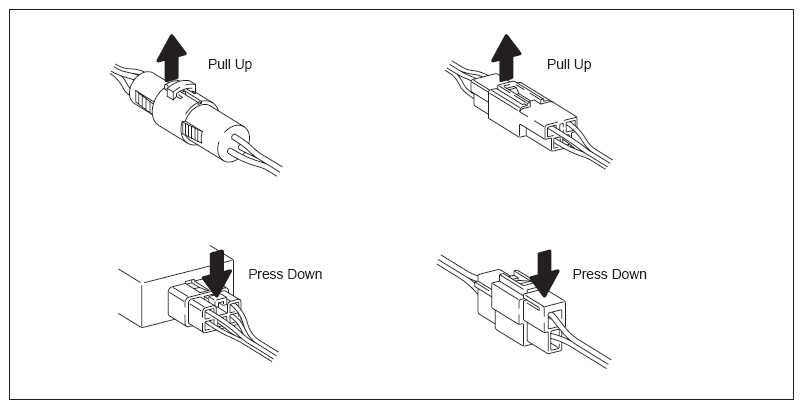

Fig 1: Identifying Disconnection Of Male And Female Connectors
G08931949Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
