Parts Location: Illustration

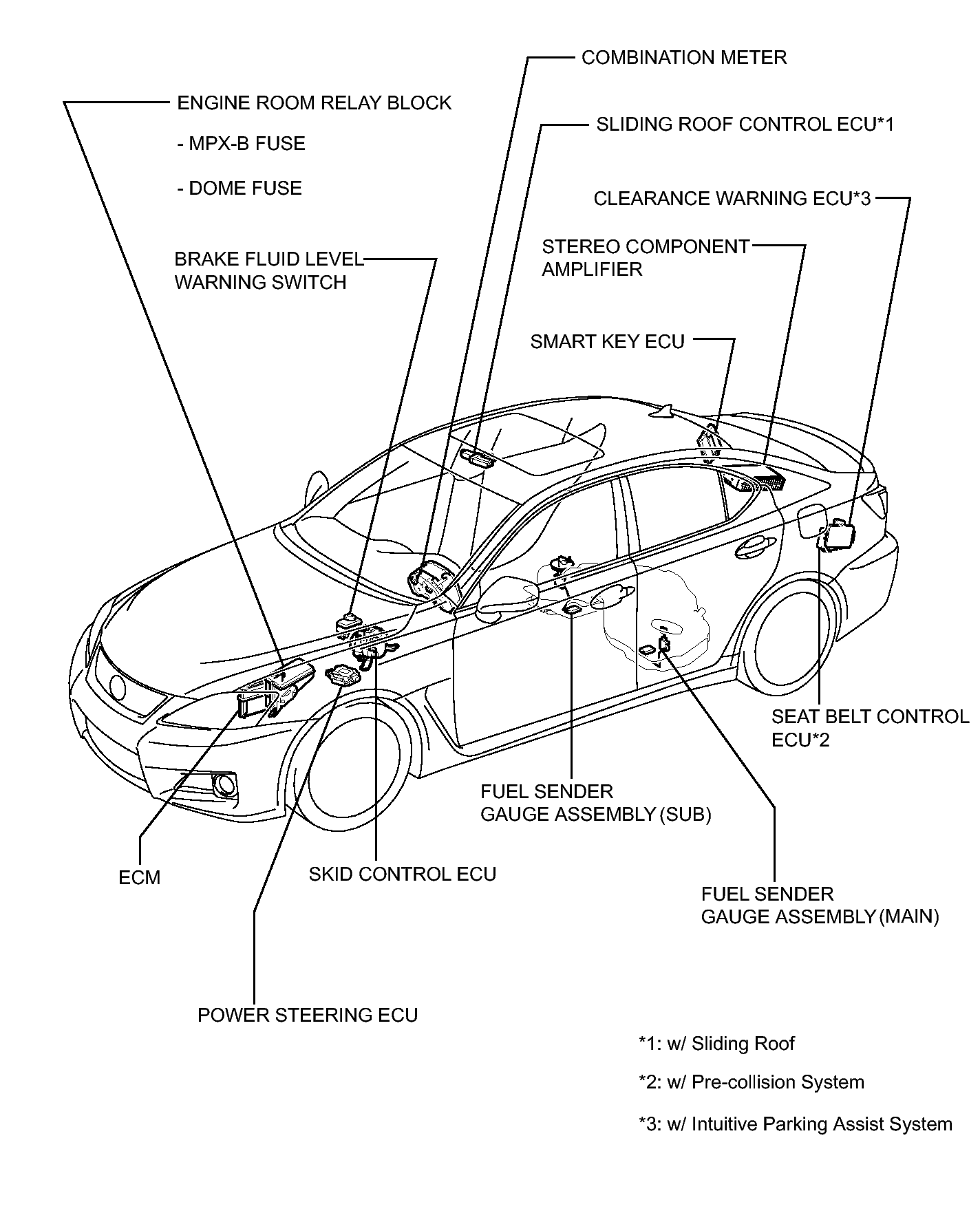

Fig 1: Identifying Meter / Gauge System Components Location (1 Of 3)
GTY281330Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

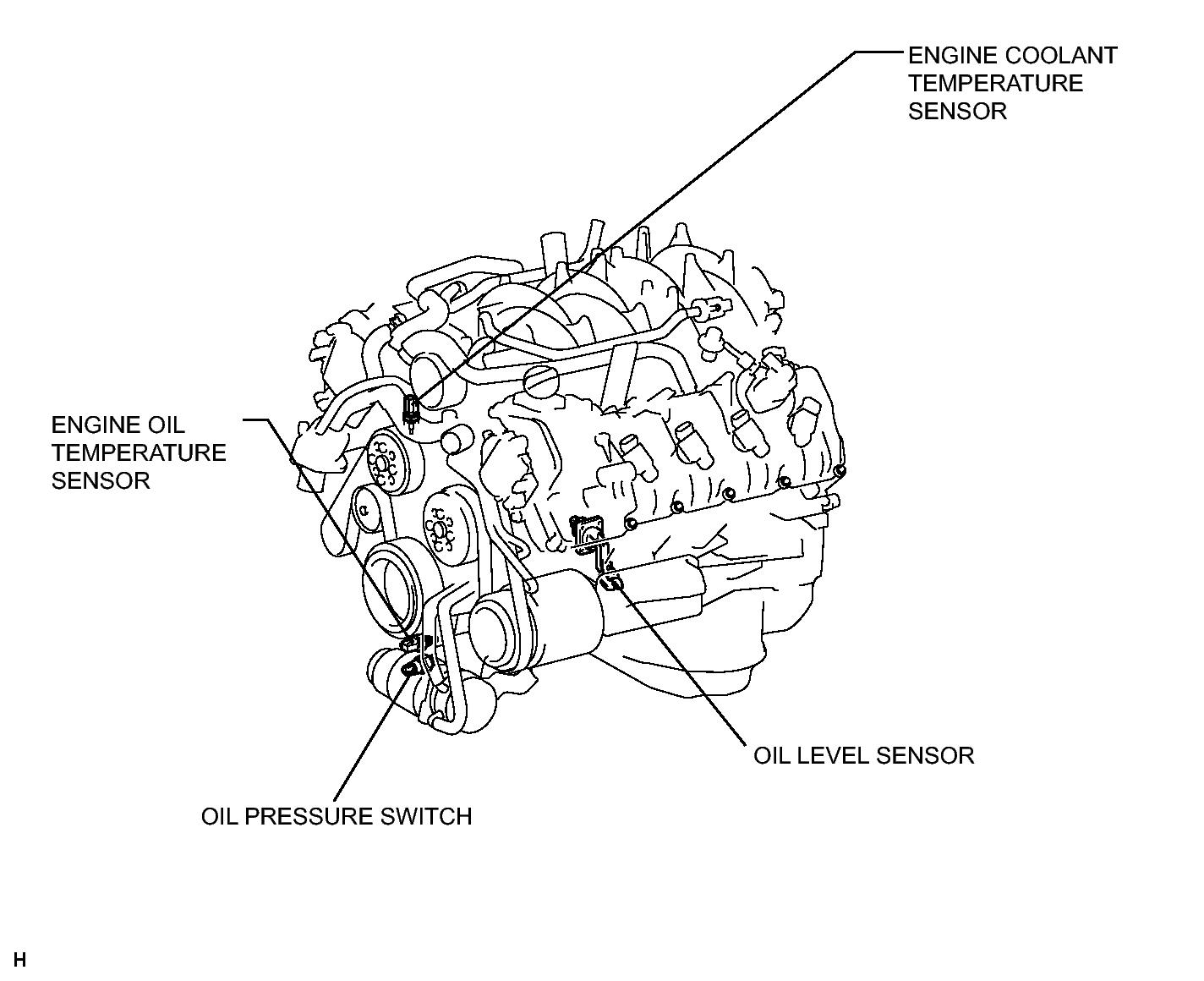

Fig 1: Identifying Meter / Gauge System Components Location (2 Of 3)
GTY394737Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

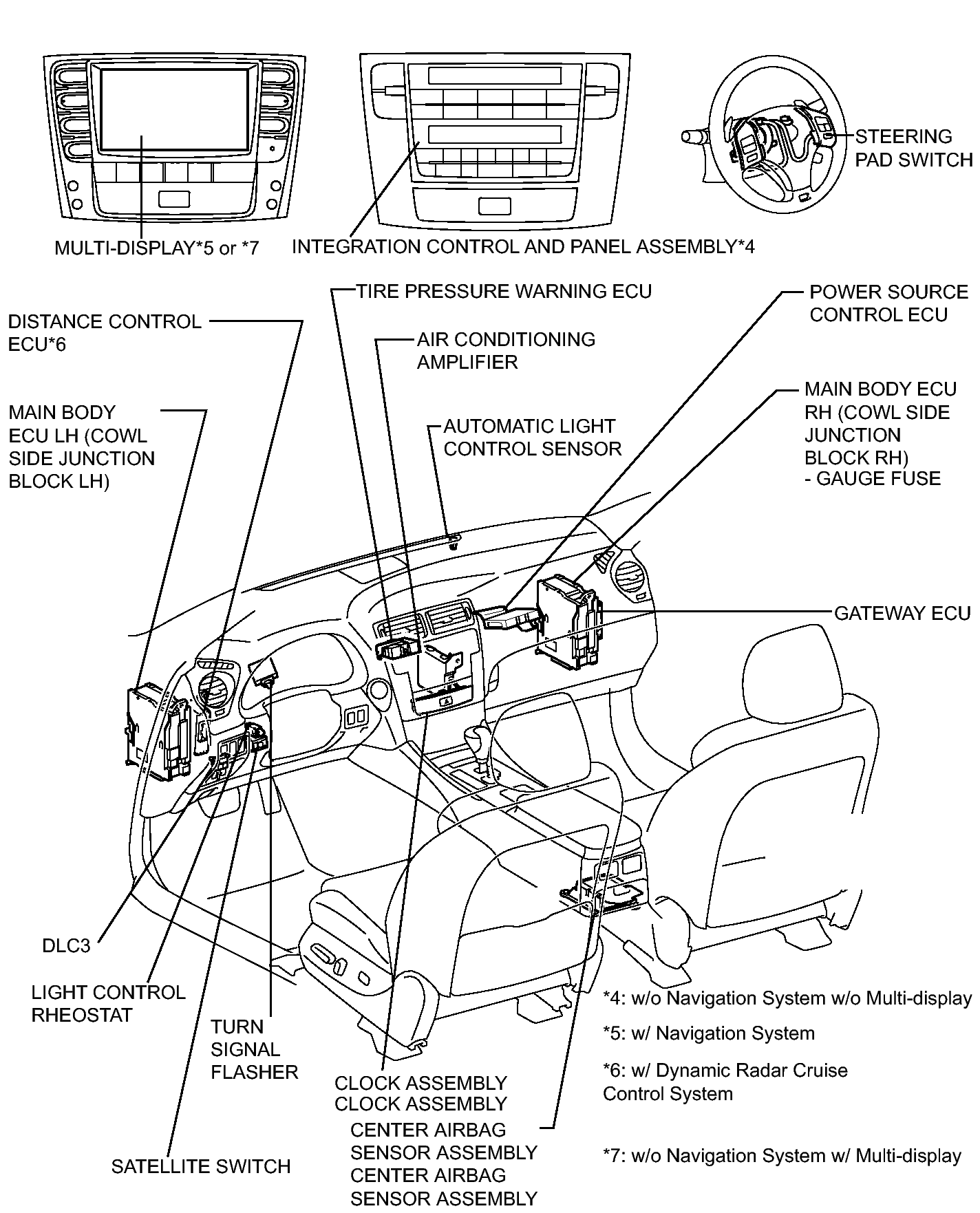

Fig 1: Identifying Meter / Gauge System Parts Location (3 Of 3)
GTY154173Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
