Power Seat (Driver's Seat), Power Seat (Front Passenger's Seat)

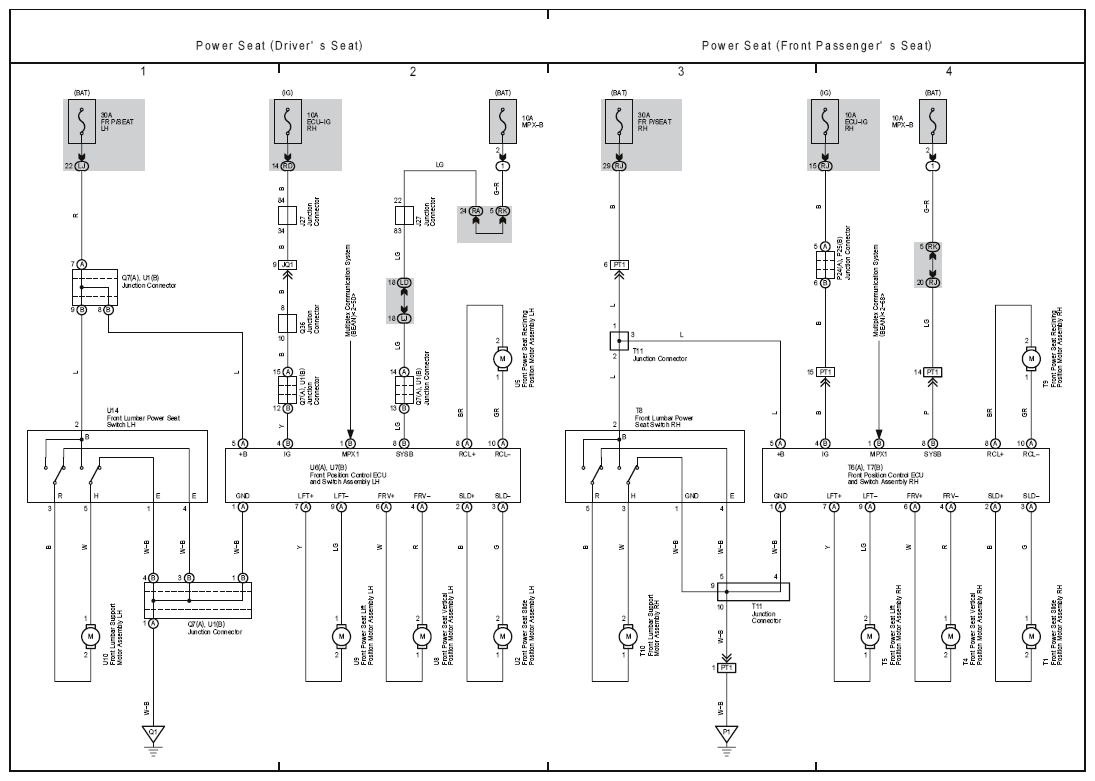

Fig 1: Power Seat (Driver's Seat) And Power Seat (Front Passenger's Seat) Electrical Wiring Diagram
G08940435Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
