Cigarette Lighter, Electric Tension Reducer, Power Outlet

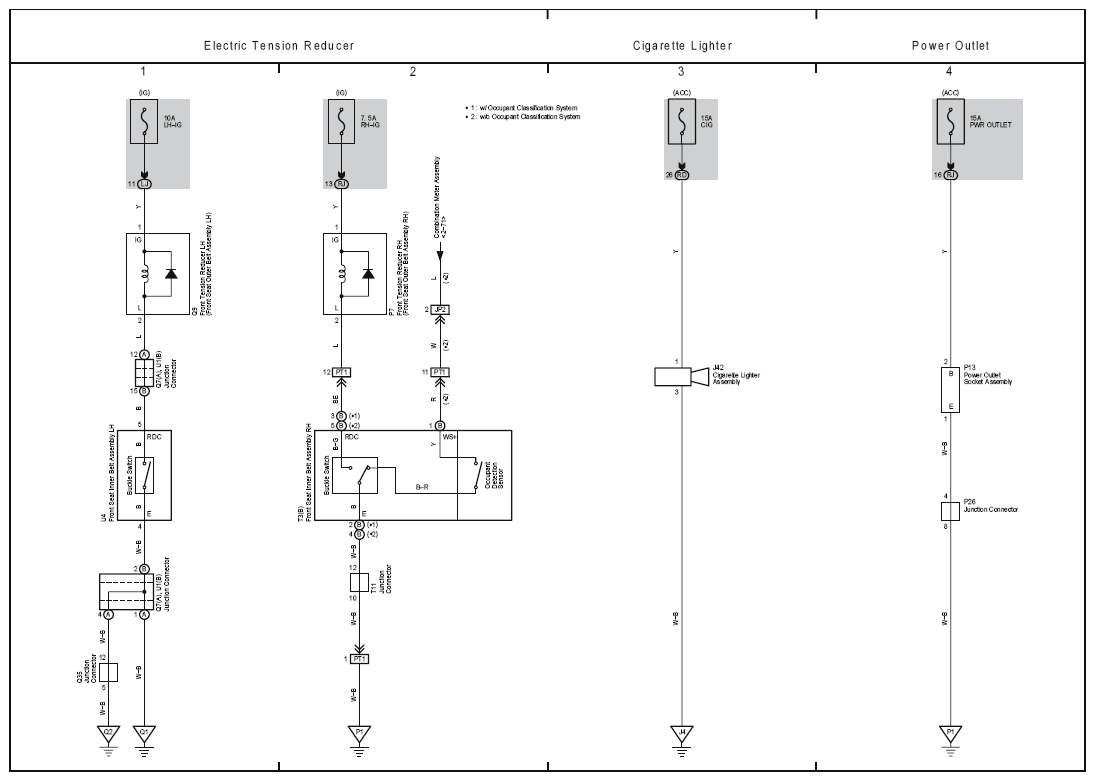

Fig 1: Cigarette Lighter Electrical Wiring Diagram

G08940434

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
