: Location of Connector Joining Wire Harness and Wire Harness

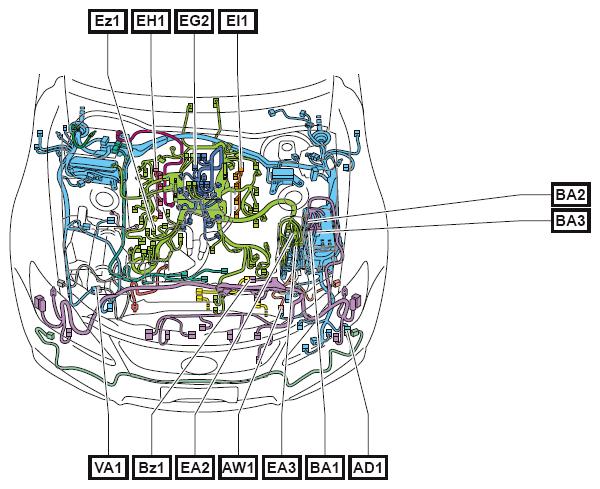

Fig 1: Locating Wiring Harnesses
G08939579Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

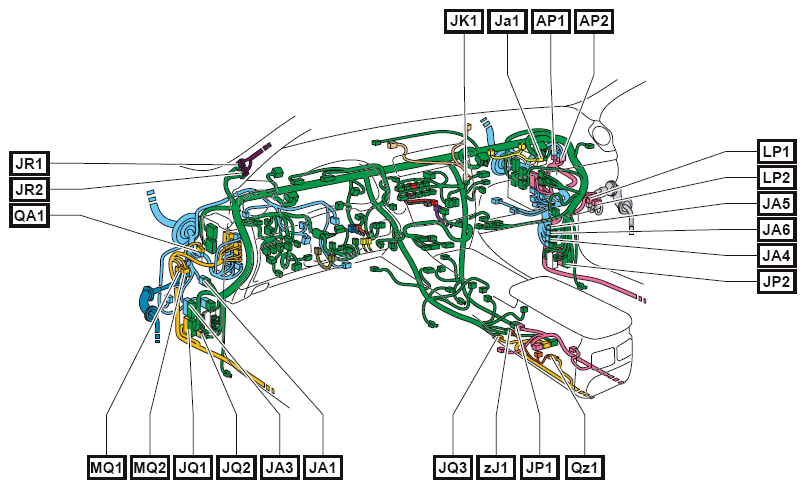

Fig 1: Locating Wiring Harnesses
G08939581Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

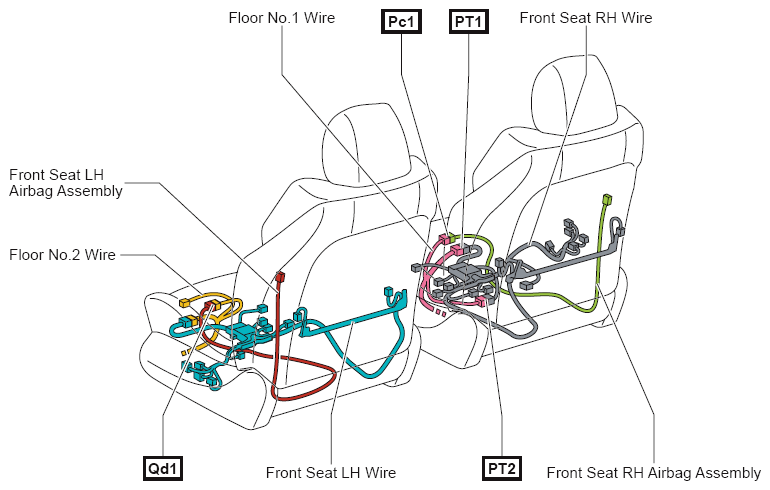

Fig 1: Locating Wiring Harnesses
G08939584Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
