: Location of Connector Joining Wire Harness and Wire Harness; : Location of Ground Points

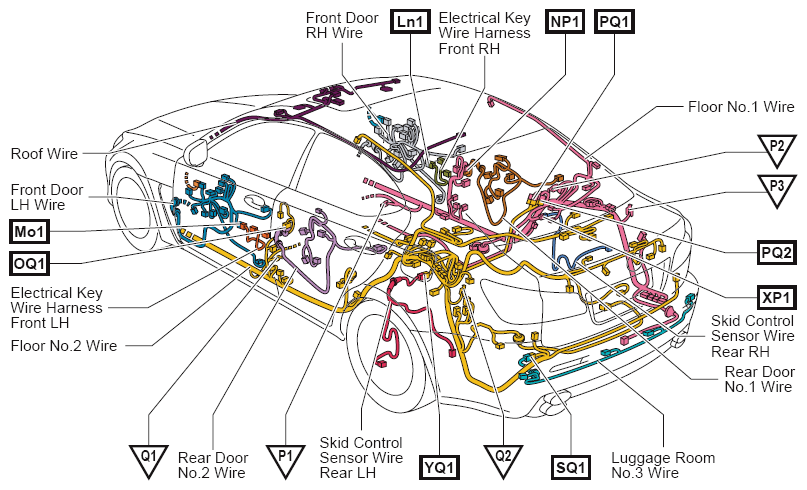

Fig 1: Locating Wiring Harnesses & Ground Points

G08939583

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
