Rear Differential Side Gear Shaft Oil Seal: Components: Illustration

Fig 1: Identifying Rear Differential Side Gear Shaft Oil Seal Replacement Components With Torque Specifications (1 Of 2)
GTY109010Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

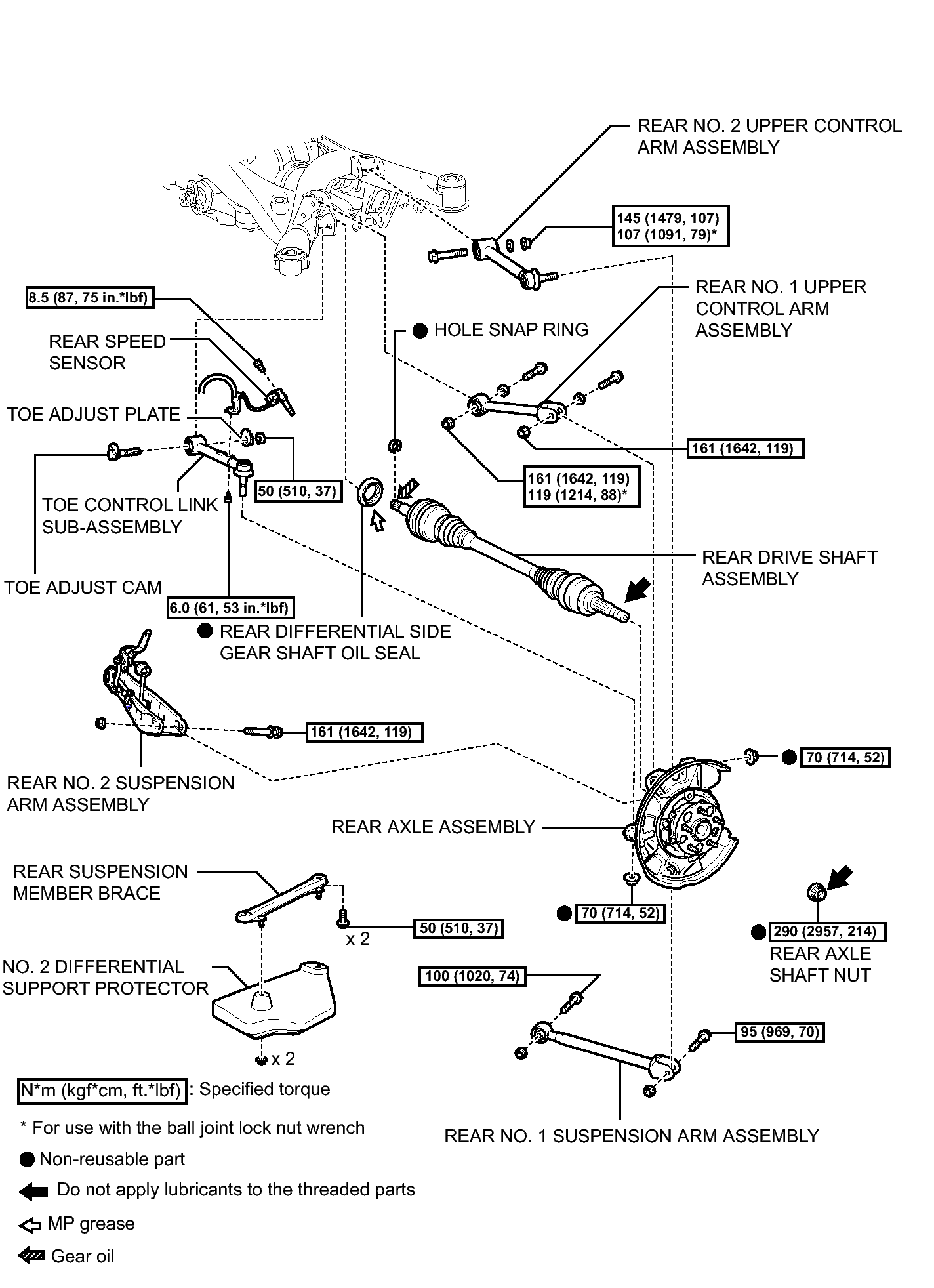

Fig 1: Identifying Rear Differential Side Gear Shaft Oil Seal Replacement Components With Torque Specifications (2 Of 2)
GTY108788Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
