DTC C0226: SFR Solenoid Circuit; DTC C0236: SFL Solenoid Circuit; DTC C0246: SRR Solenoid Circuit; DTC C0256: SRL Solenoid Circuit; DTC C1225: SM Solenoid Circuit: Wiring Diagram

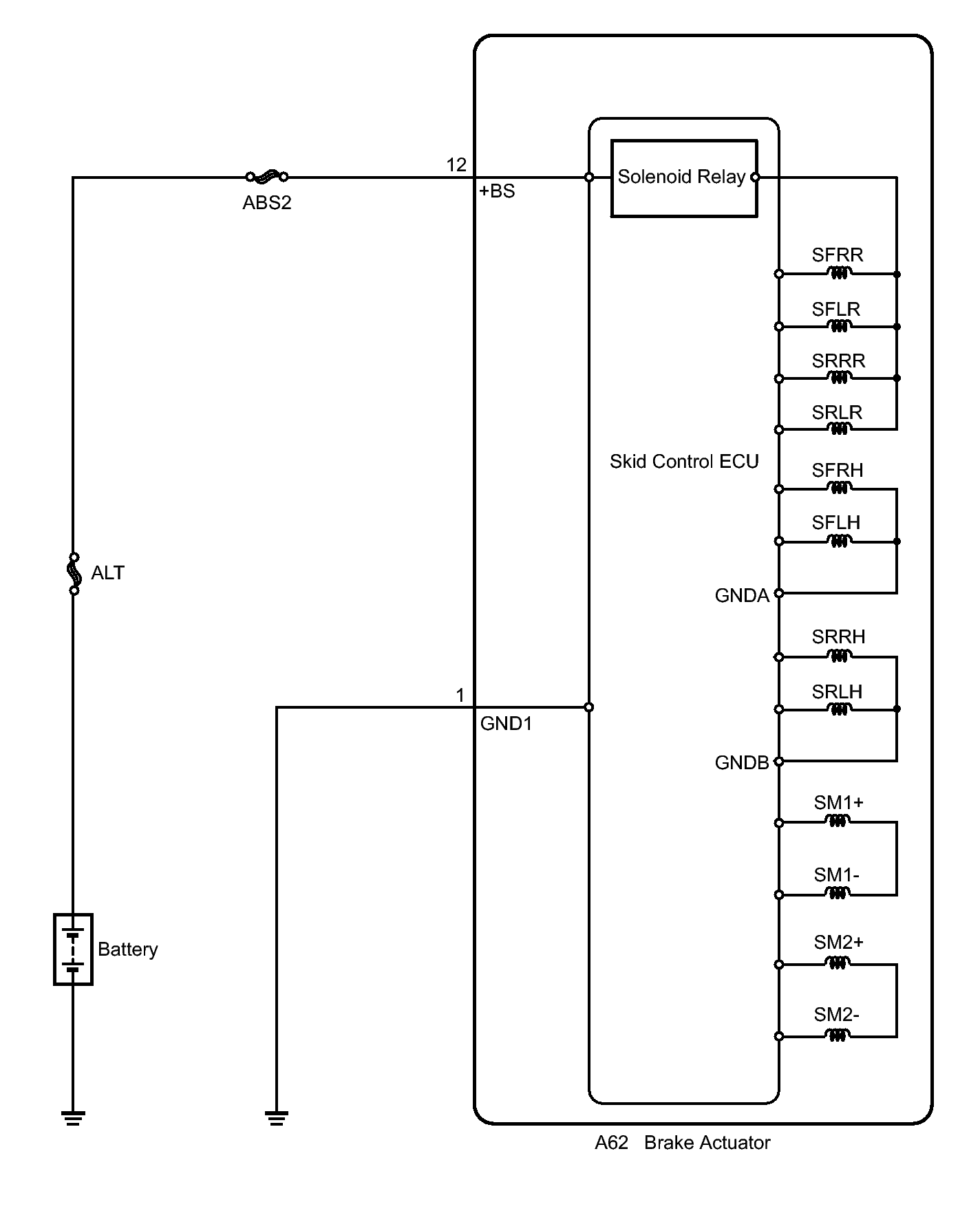

Fig 1: Identifying Brake Actuator Power Source Diagram
GTY276340Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
