Parking Brake Pedal: Components: Illustration

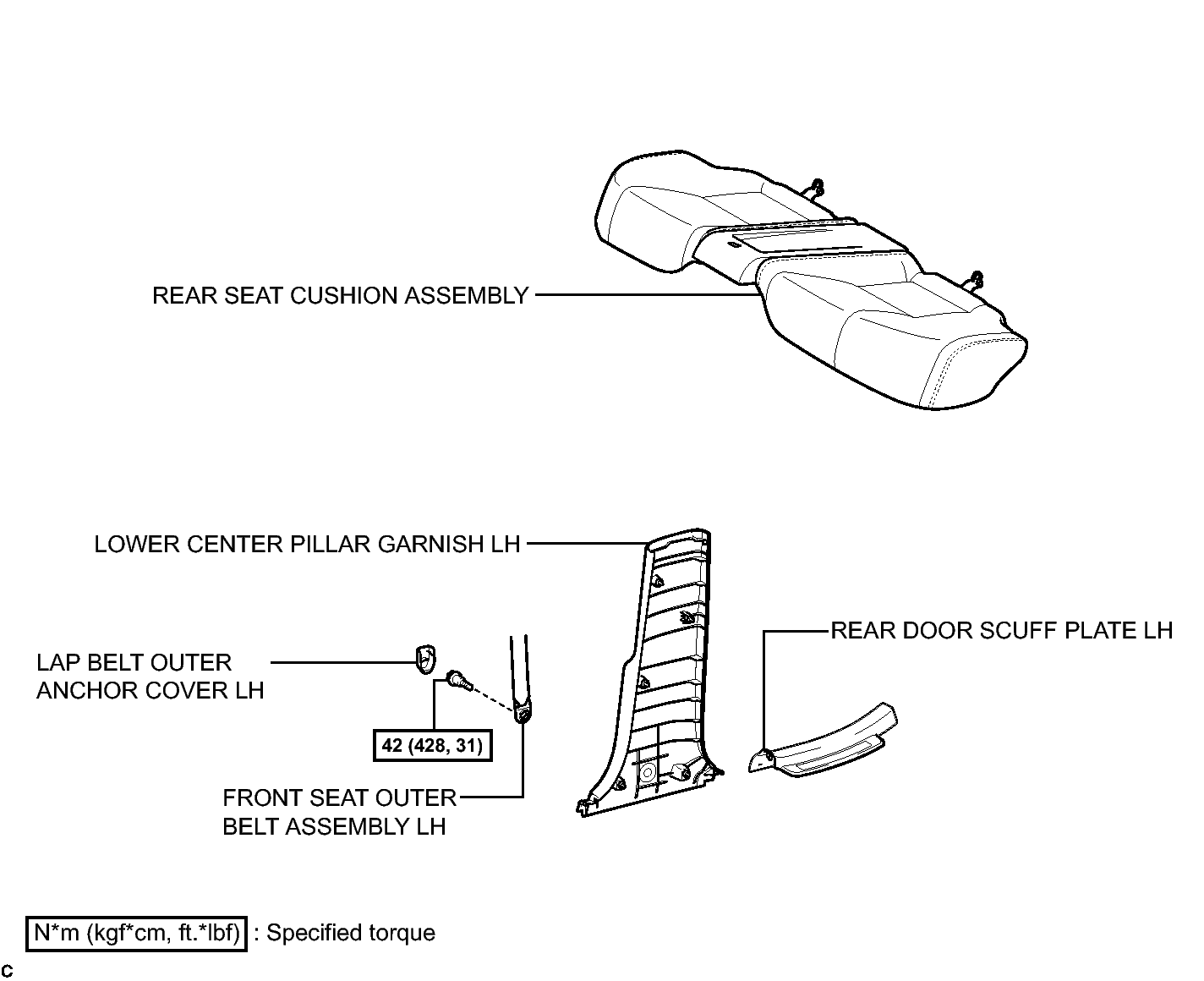

Fig 1: Identifying Parking Brake Pedal Replacement Components With Torque Specifications (1 Of 4)
GTY351320Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Parking Brake Pedal Replacement Components (2 Of 4)
GTY347499Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

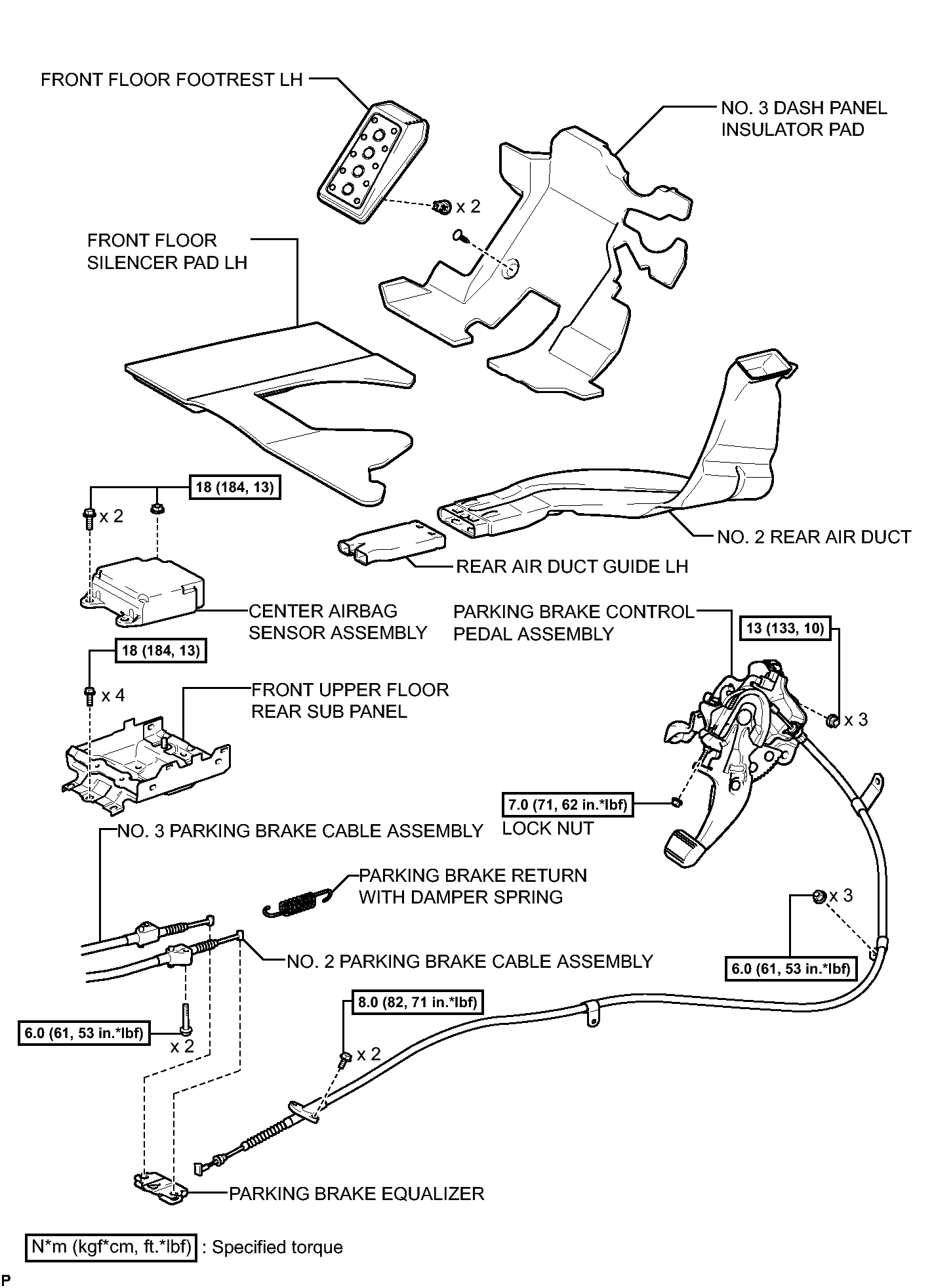

Fig 1: Identifying Parking Brake Pedal Replacement Components With Torque Specifications (3 Of 4)
GTY109208Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

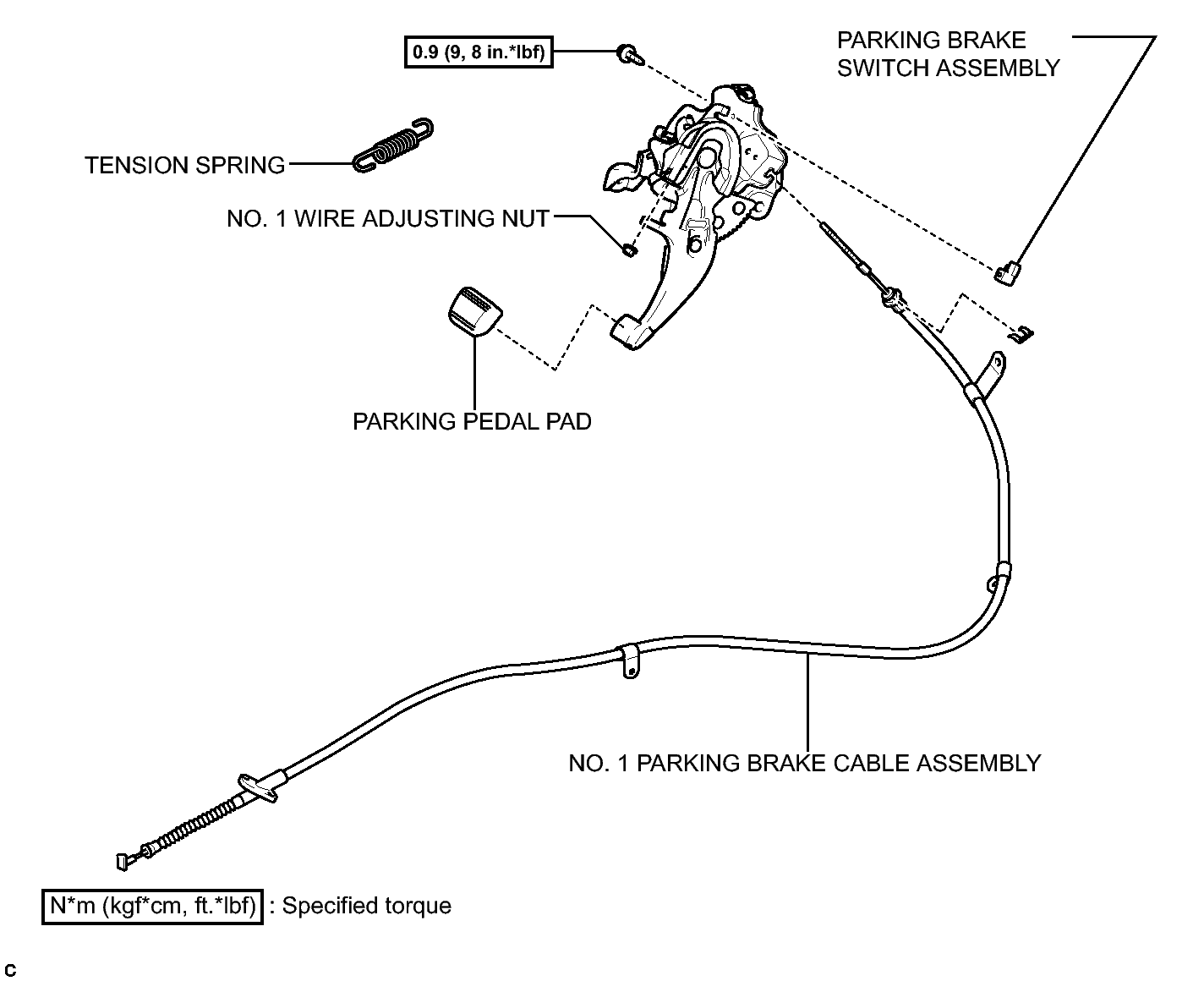

Fig 1: Identifying Parking Brake Pedal Replacement Components With Torque Specifications (4 Of 4)
GTY108849Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
