Brake Master Cylinder: Components: Illustration

Fig 1: Identifying Brake Master Cylinder Replacement Components (1 Of 3)
GTY279477Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

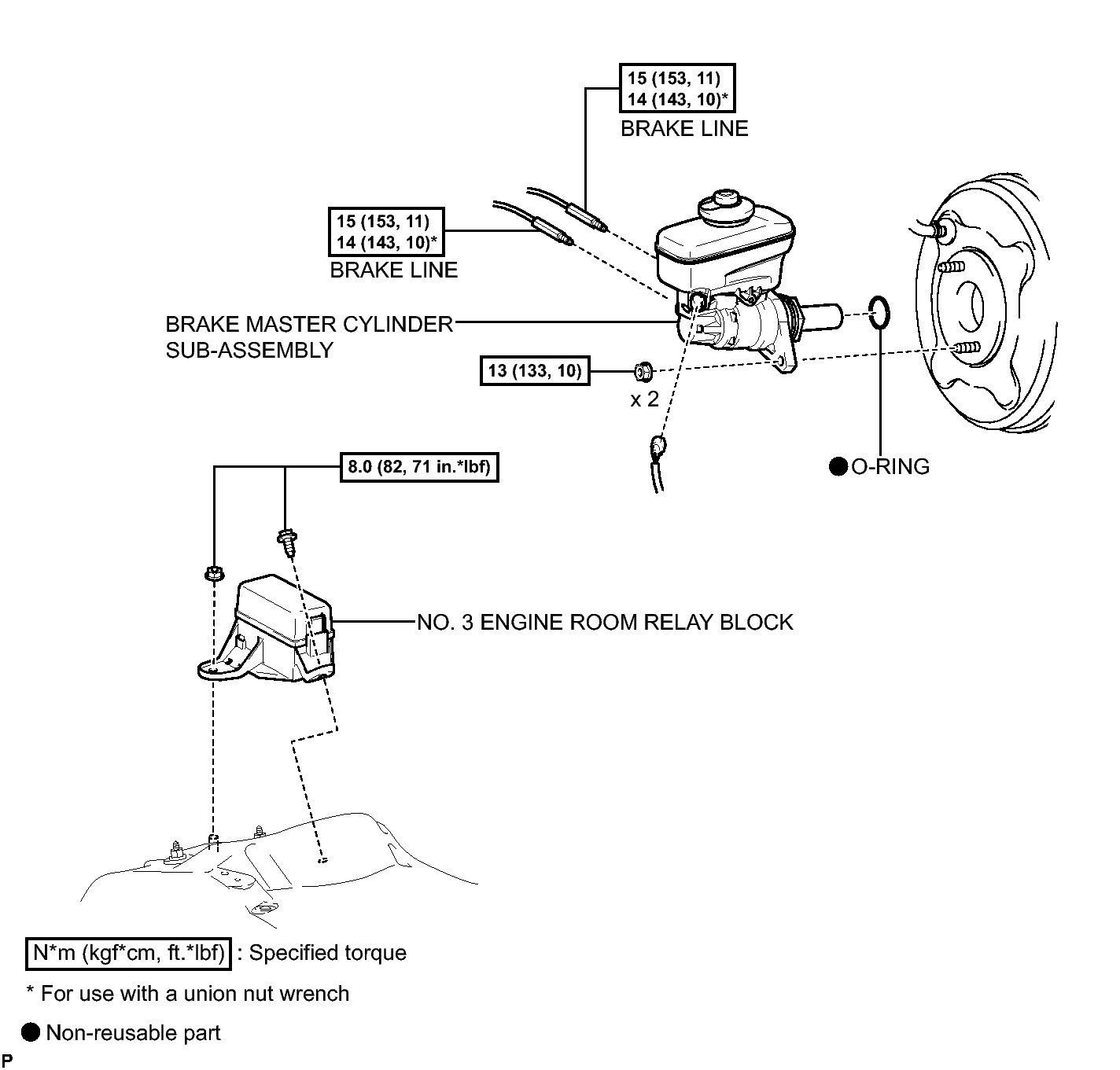

Fig 1: Identifying Brake Master Cylinder Replacement Components With Torque Specifications (2 Of 3)
GTY289459Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


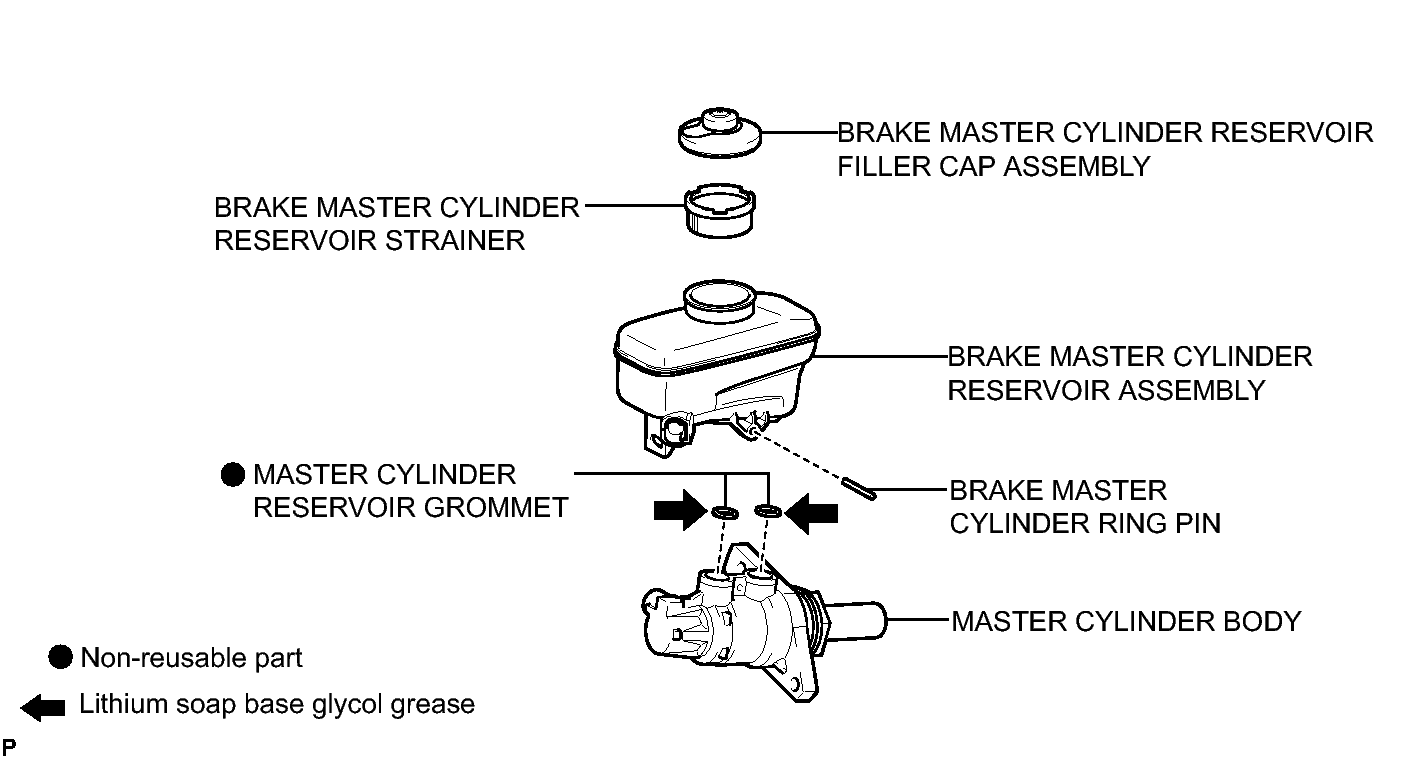

Fig 1: Identifying Brake Master Cylinder Replacement Components With Torque Specifications (3 Of 3)
GTY109116Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
