Parts Location: Illustration

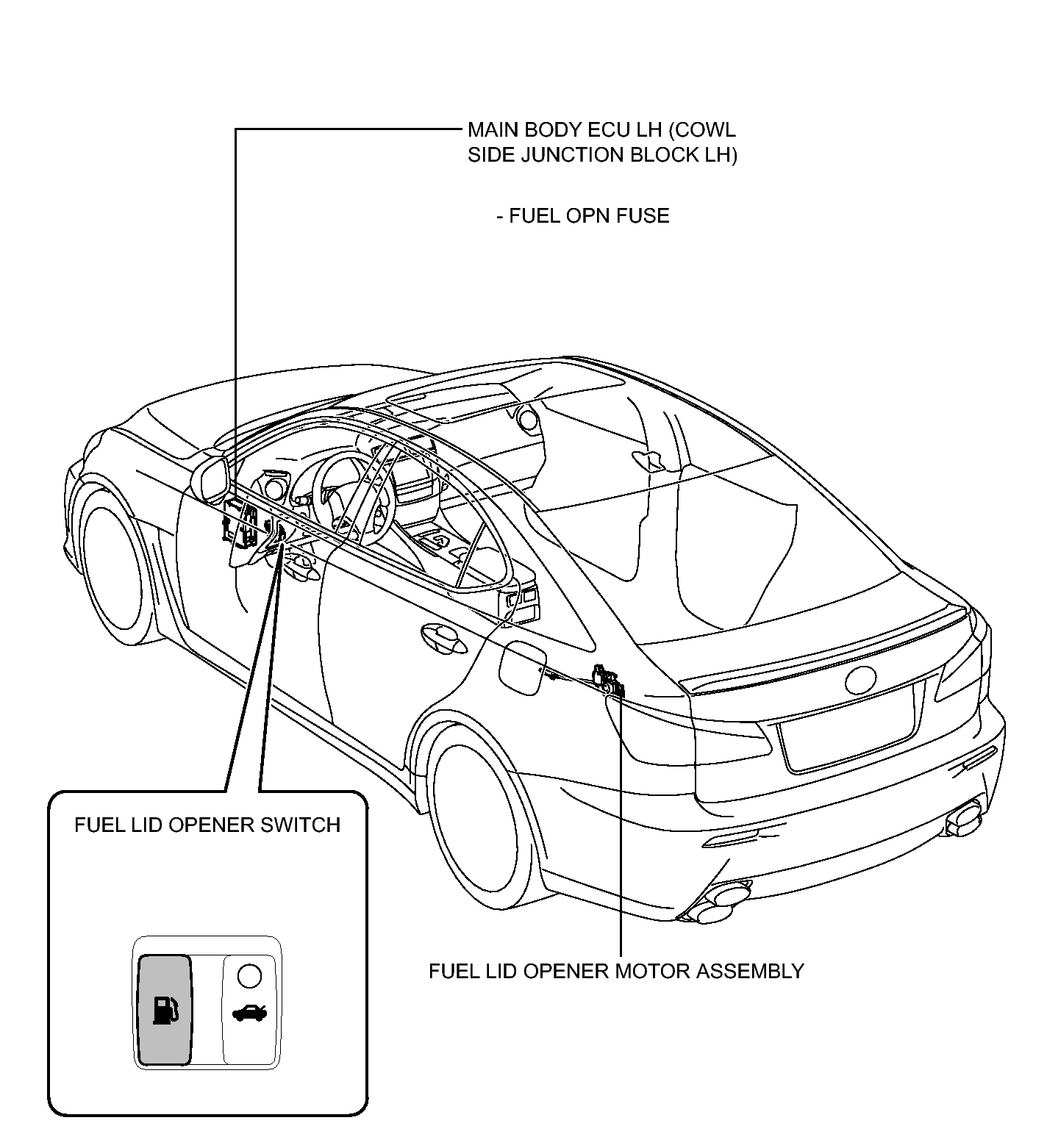

Fig 1: Identifying Fuel Lid Opener Switch Components Location

GTY114697

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
