Rear Door: Components: Illustration

Fig 1: Identifying Rear Door Replacement Components (1 Of 4)
GTY131828Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Rear Door Replacement Components With Torque Specifications (2 Of 4)
GTY115448Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Rear Door Replacement Components With Torque Specifications (3 Of 4)
GTY115449Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

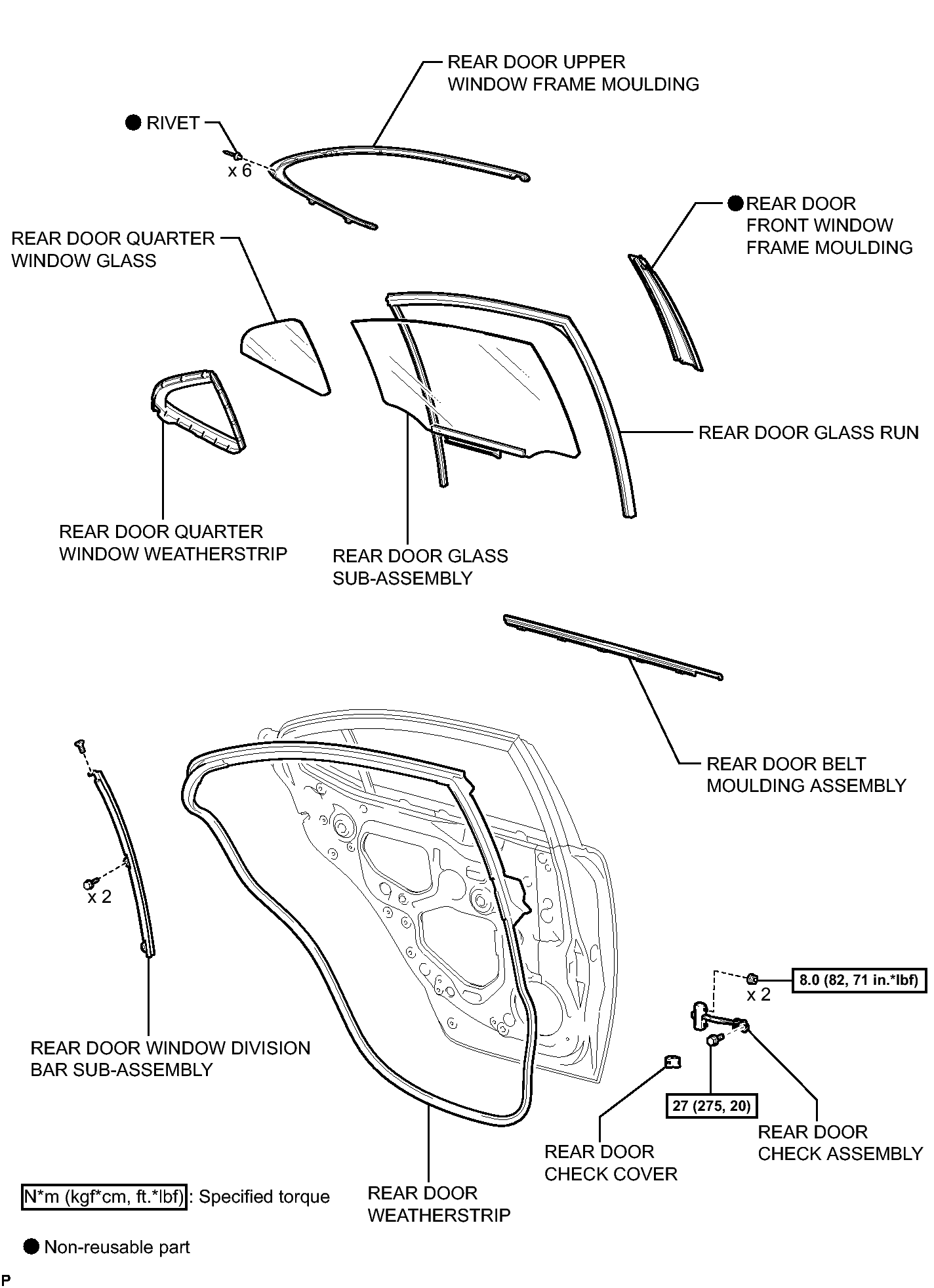

Fig 1: Identifying Rear Door Replacement Components With Torque Specifications (4 Of 4)
GTY115450Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
