Luggage Compartment Door: Components: Illustration

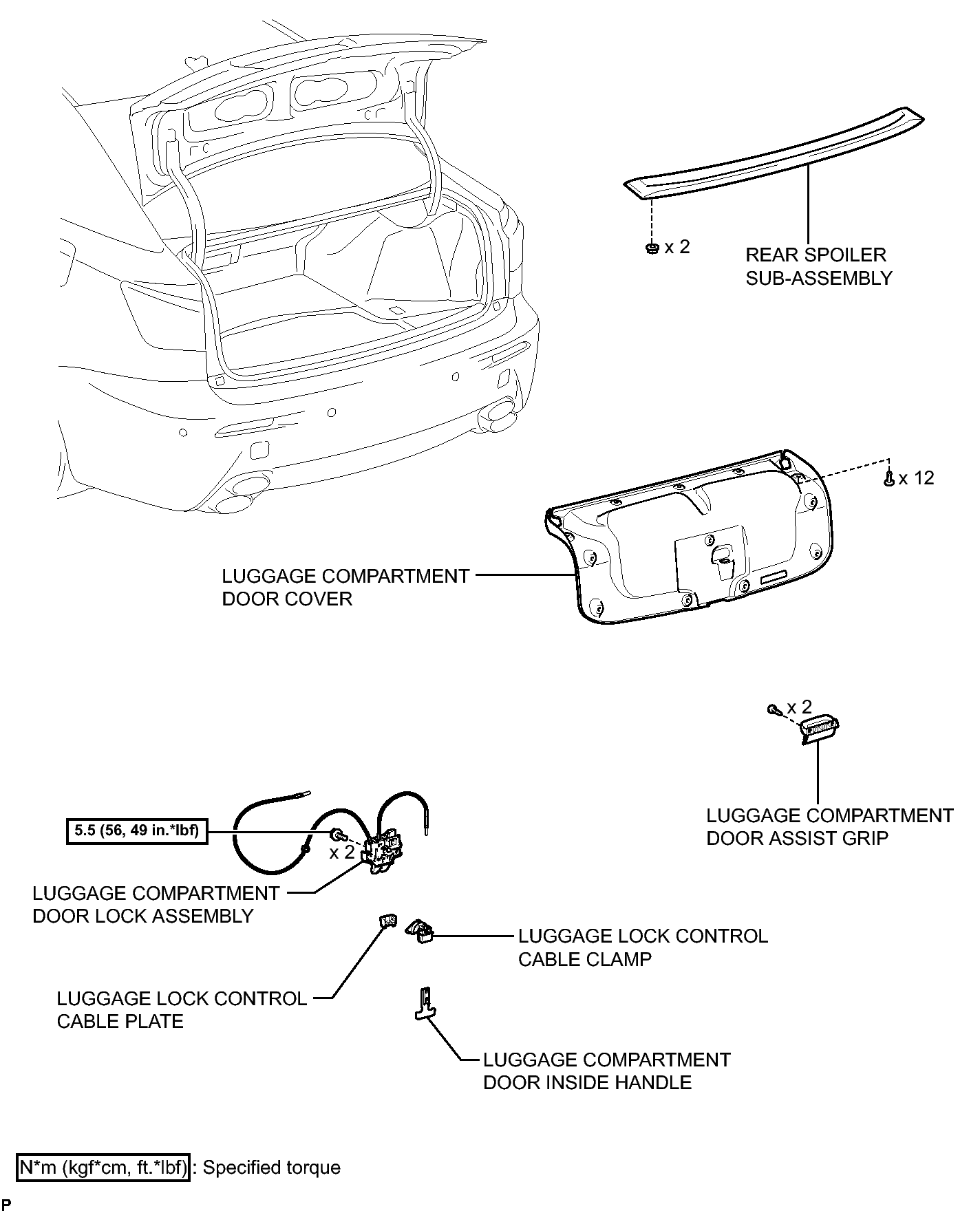

Fig 1: Identifying Luggage Compartment Door Replacement Components With Torque Specifications (1 Of 2)
GTY115424Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

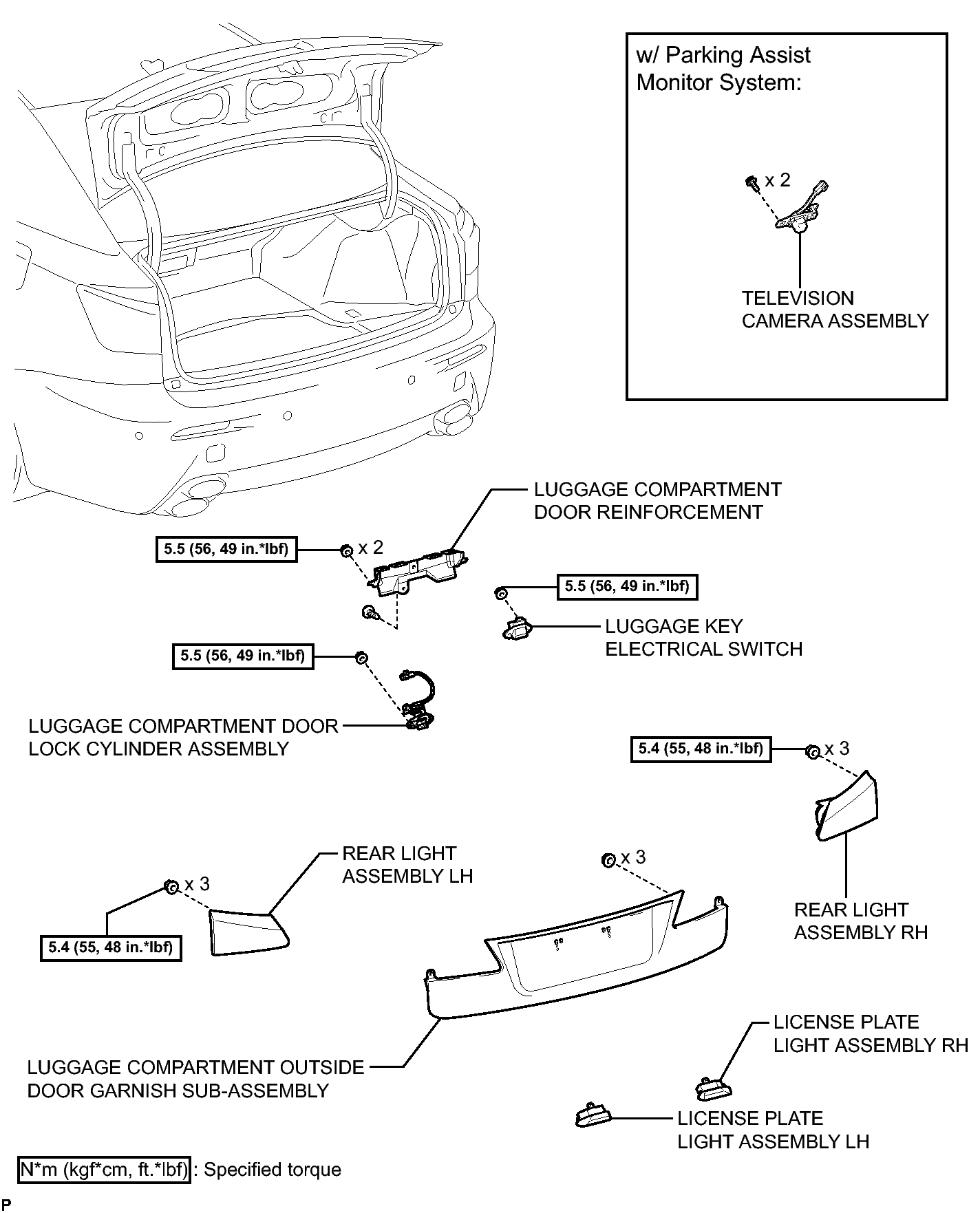

Fig 1: Identifying Luggage Compartment Door Replacement Components With Torque Specifications (2 Of 2)
GTY115425Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
