Front Passenger Side Seat Belt Warning Light Malfunction: Wiring Diagram

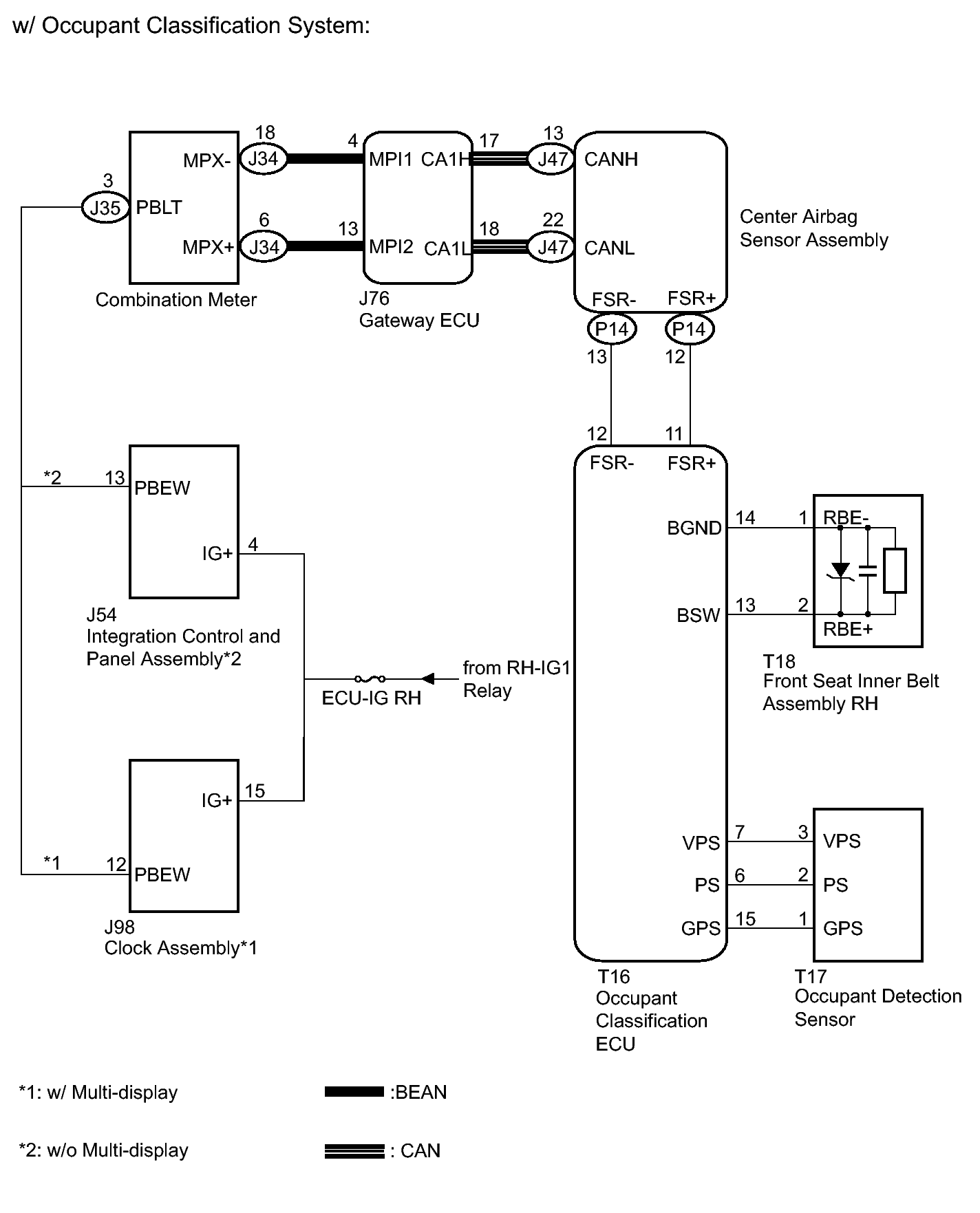

Fig 1: Seat Belt Warning System Wiring Diagram (W/ Occupant Classification System) (1 Of 2)
GTY393612Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

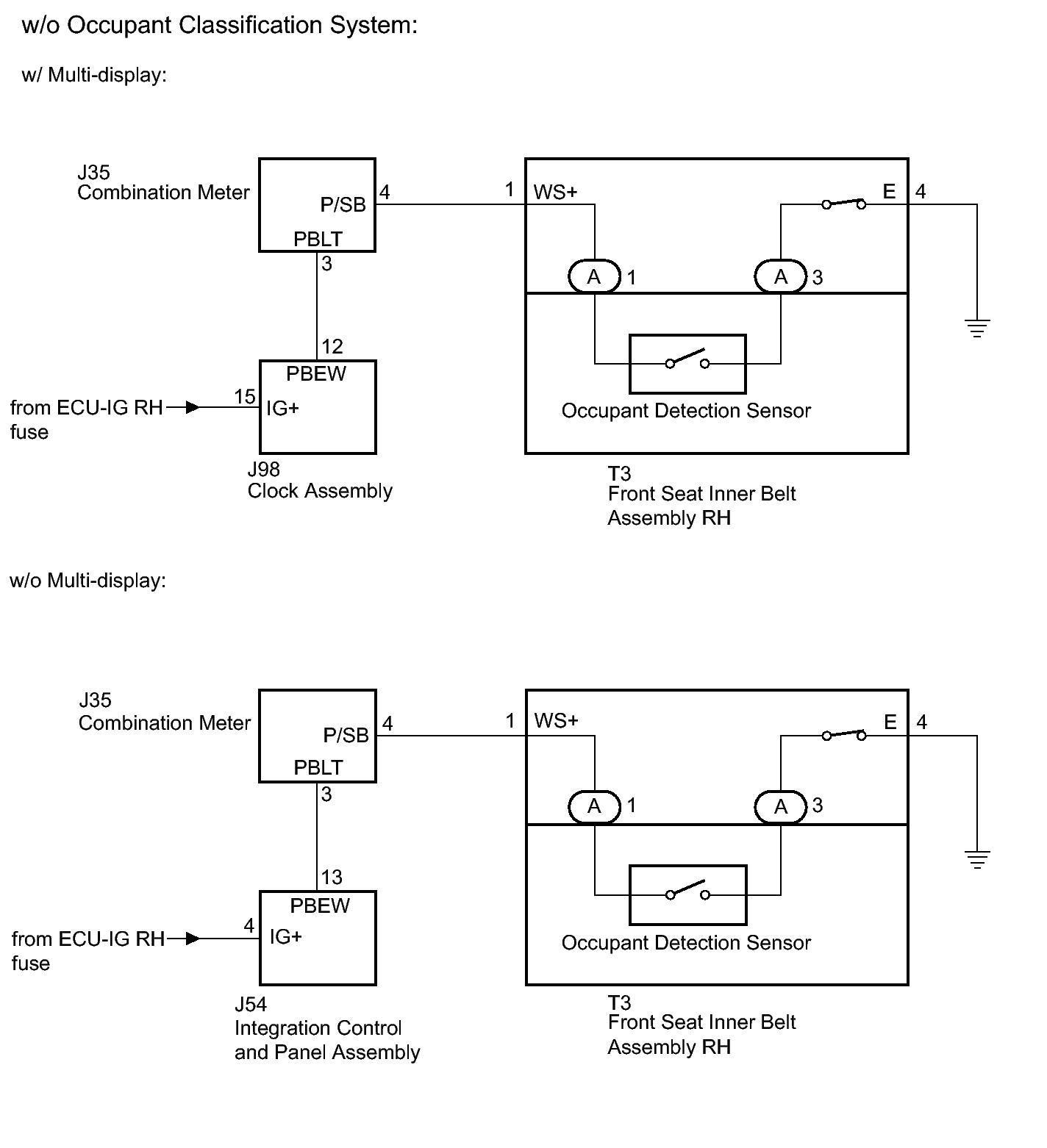

Fig 2: Seat Belt Warning System Wiring Diagram (W/O Occupant Classification System) (2 Of 2)
GTY393368Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
