Parts Location: Illustration

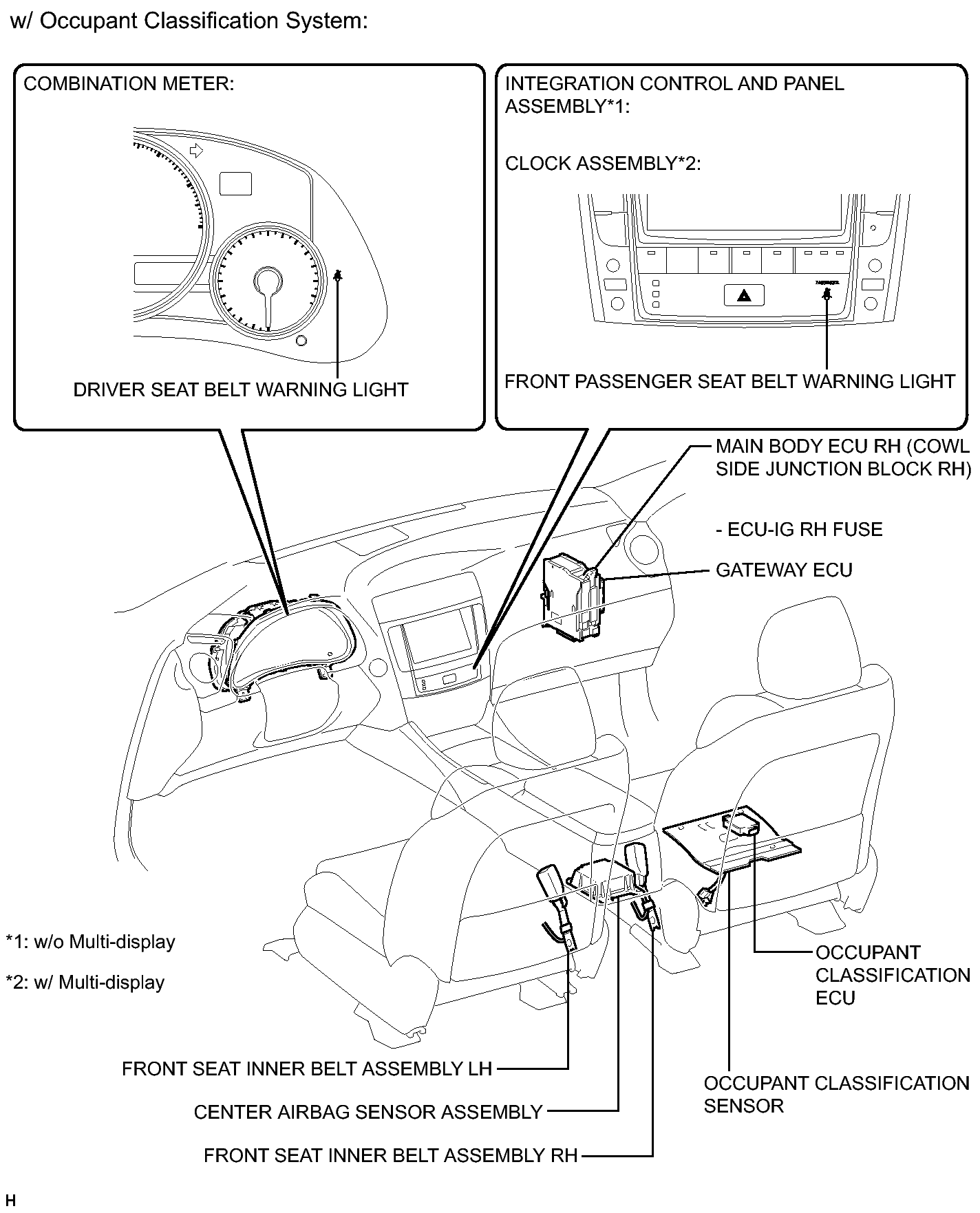

Fig 1: Identifying Seat Belt Warning System Component Locations (1 Of 2)
GTY394144Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

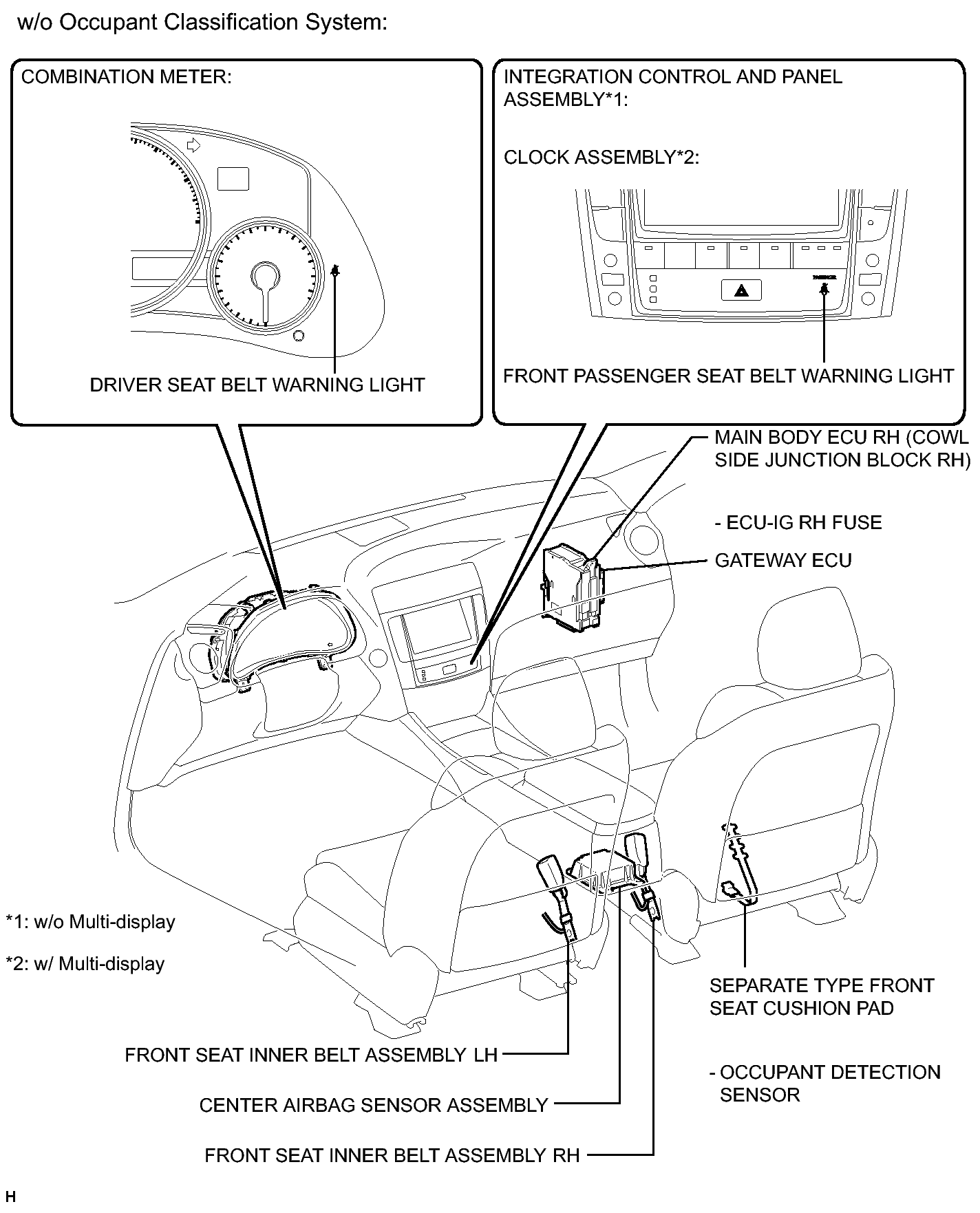

Fig 1: Identifying Seat Belt Warning System Component Locations (2 Of 2)
GTY394657Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
